Enerpac PME10022 Manuel D'instructions

L1750 Rev. C 05/08
Index:
English: ....................................................................1-6
Français: ................................................................7-13
Deutsch:...............................................................14-20
PME10022/PME10027
• For single-acting torque wrenches
• Remote pendant operation
• Glycerine-filled pressure gauge
• Adjustable pressure relief valve
PME10422/PME100427
• For double-acting torque wrenches
• Remote pendant operation
• Time out circuit stops motor after 15 seconds
of idles to prevent heat build-up
• Glycerine-filled pressure gauge
• Adjustable pressure relief valve
WARNING: Use only with equipment designed for 800 bar [11,600 psi]. Equipment with inadequate pressure
rating can fail and cause personal injury.
1.0 IMPORTANT RECEIVING INSTRUCTIONS
Visually inspect all components for shipping damage.
Shipping damage is not covered by warranty. If shipping
damage is found, notify carrier at once. The carrier is
responsible for all repair and replacement costs resulting
from damage in shipment.
SAFETY FIRST
2.0 SAFETY ISSUES
Read all instructions, warnings and cautions
carefully. Follow all safety precautions to avoid
personal injury or property damage during
system operation. Enerpac cannot be responsible for
read.eps
damage or injury resulting from unsafe product use, lack of
maintenance or incorrect product and/or system operation.
Contact Enerpac when in doubt as to the safety precautions
and operations. If you have never been trained on high-
pressure hydraulic safety, consult your distribution or service
center for a free Enerpac Hydraulic safety course.
Failure to comply with the following cautions and warnings
could cause equipment damage and personal injury.
All manuals and user guides at all-guides.com

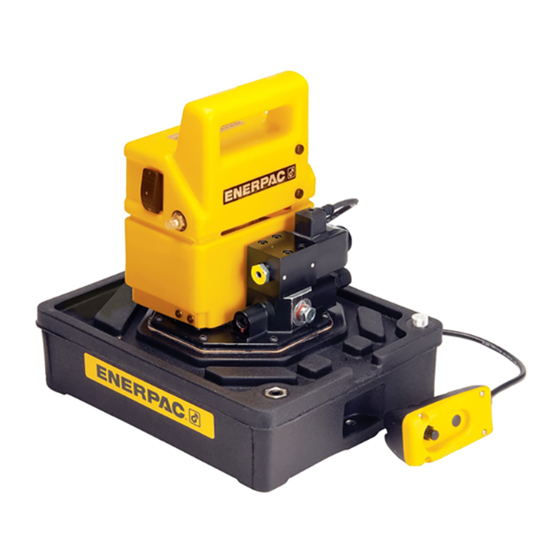

PORTABLE ELECTRIC TORQUE WRENCH PUMPS
PME10022, PME10027, PME10422, AND PME10427
Italiano: ...............................................................21-27
Español: ...............................................................28-34
Nederlands:..........................................................35-41
Danish..................................................................42-46
A CAUTION is used to indicate correct operating or
maintenance procedures and practices to prevent damage
to, or destruction of equipment or other property.
A WARNING indicates a potential danger that requires
correct procedures or practices to avoid personal injury.
A DANGER is only used when your action or lack of action
may cause serious injury or even death.
must always be blocked mechanically.
shim or spacer in any lifting or pressing application.
Instruction Sheet
WARNING: Wear proper personal protective gear
when operating hydraulic equipment.
WARNING: Stay clear of loads supported by
hydraulics. A cylinder, when used as a load lifting
device, should never be used as a load holding
device. After the load has been raised or lowered, it
WARNING: USE ONLY RIGID PIECES TO HOLD LOADS.
Carefully select steel or wood blocks that are capable of
®
supporting the load. Never use a hydraulic cylinder as a
DANGER: To avoid personal injury keep hands
and feet away from cylinder and workpiece
during operation.
