3. Disconnect the air filter/regulator's drain hose from the hole in the base of the power supply.
4. Use a 8 mm (5/16 inch) nut driver to remove the nut that attaches the ring connector for the output inductor's white
wire to the stud labeled "WHT. "
Drain hose
1
Output inductor
2
5. Place the wooden end of a swab, a stiff wire, or other similar item with a 0.23 cm (0.092 inch) diameter in each of the
5 holes on the power board side of the base. Press each one in until the clips release and you can pull the base and
the attached magnetics away from the center panel.
Powermax30/Powermax30 XP Field Service Bulletin 805320

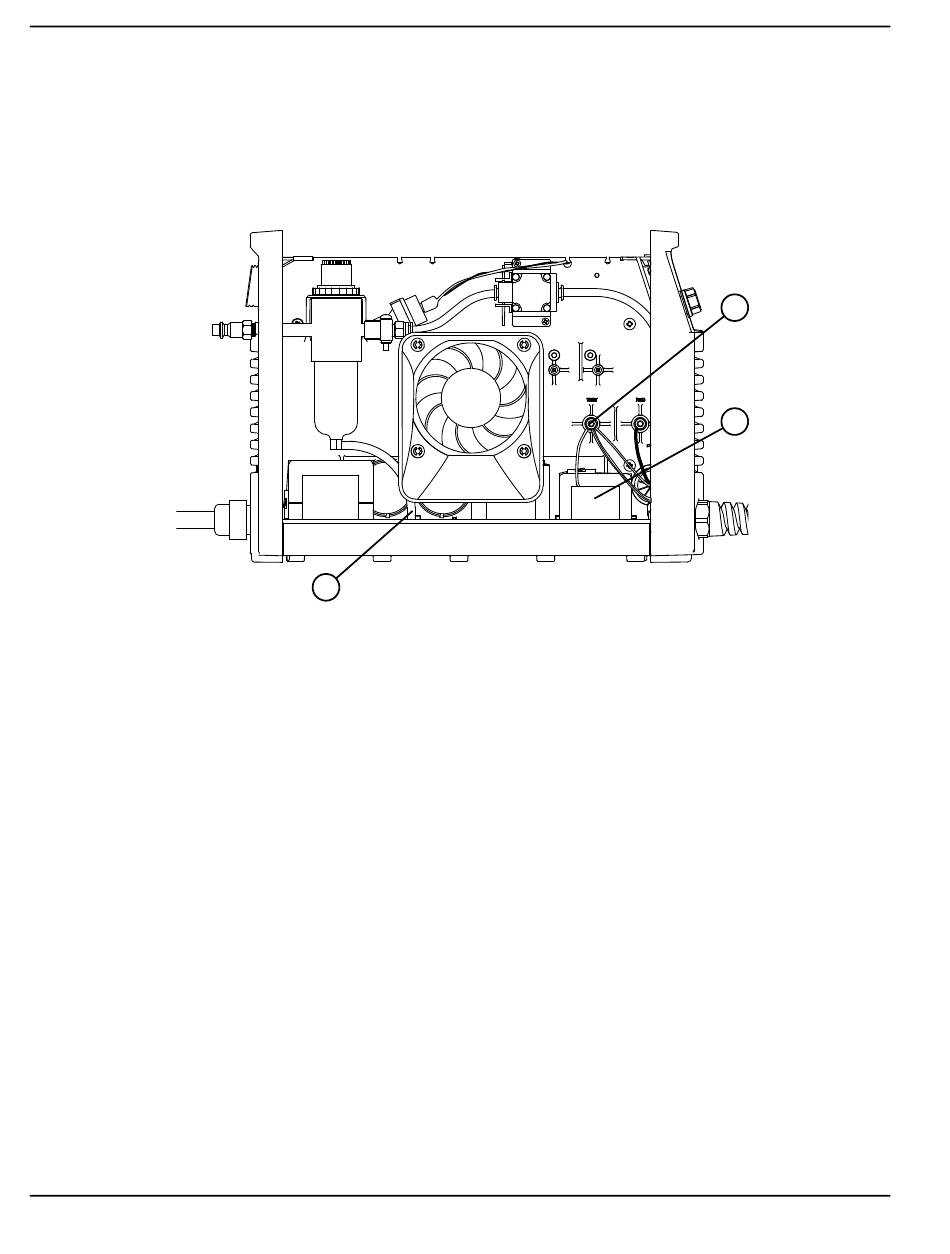

Figure 11
1
3
Magnetics Assembly Replacement
White wire stud ("WHT")
3
2
9
