Start Time / Running Time:
ON
Start Time
Start Time / Stop Time:
ON
Start Time
If timer T2 uses Start Time / Running Time cycle definitions, the cycle will operate for
the remainder of the running time. If Start / Stop Times are used, the cycle will stop
at the appointed stop time.
MANUAL MODE
You can manually activate an output at any time by selecting the On mode for that
timer. After a 2.5 second delay, the output is activated. The output remains activated
as long as the timer is in On mode.
You can manually stop all cycle activity by selecting the Off mode for that timer.
After a 2.5 second delay, the output is deactivated. The output remains in this state
as long as the timer is in Off mode. If you return to automatic mode inside a cycle
window, and if that cycle was not already activated previous to the manual stop, the
cycle will be executed for the entire running time (if a Stop Time is defined, the cycle
will resume until the appointed Stop Time). This feature also applies to the Skip-a-day

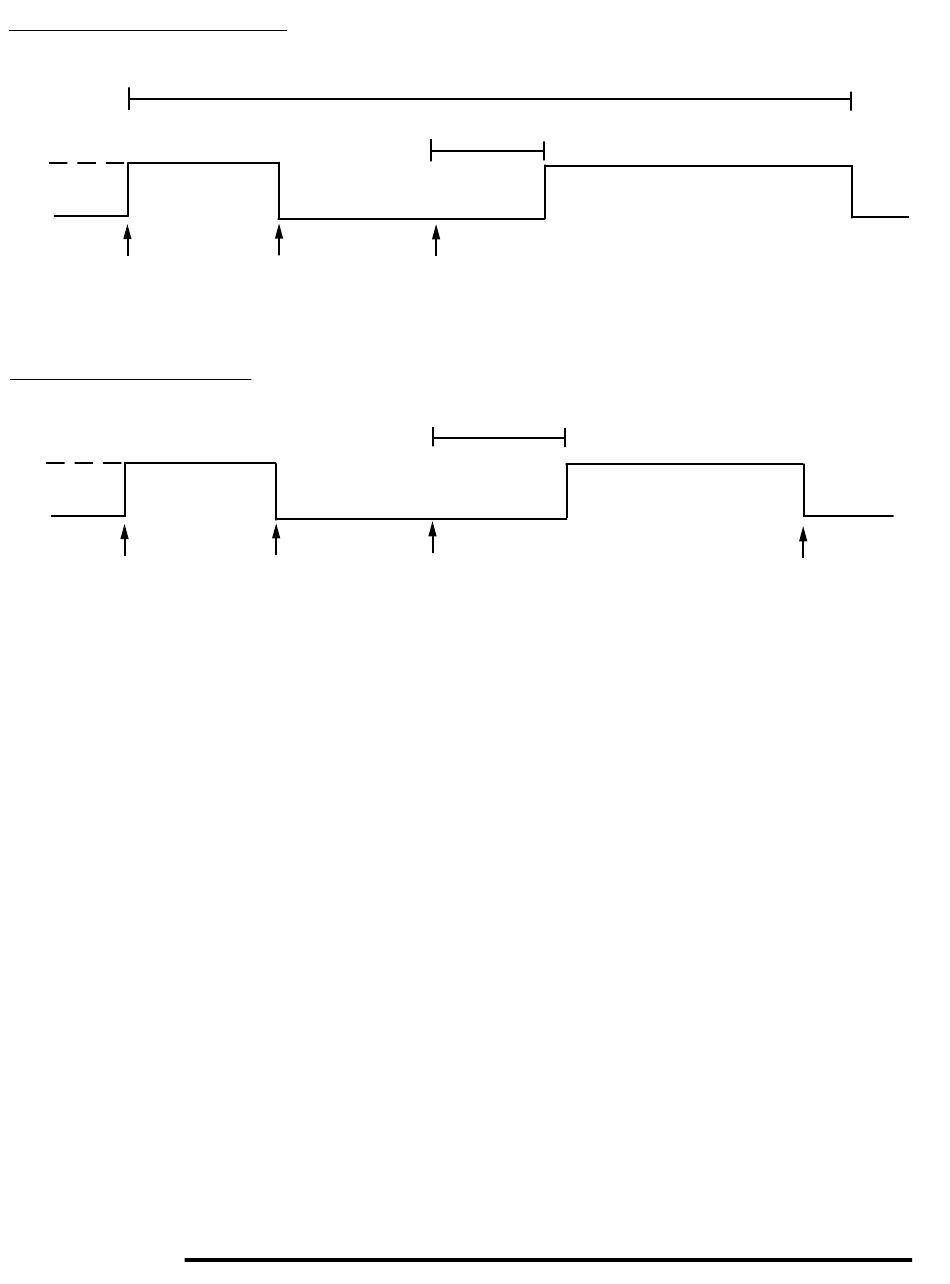

function (see diagram below).
10
TC4-T3O.rev.05
Running Time
Programmed Delay
Limit Switch
Limit Switch
opens
returns to normal
Programmed
Delay
Limit Switch
Limit Switch
returns to normal
opens
Stop Time
