MAPAX2LJRG Battery tool

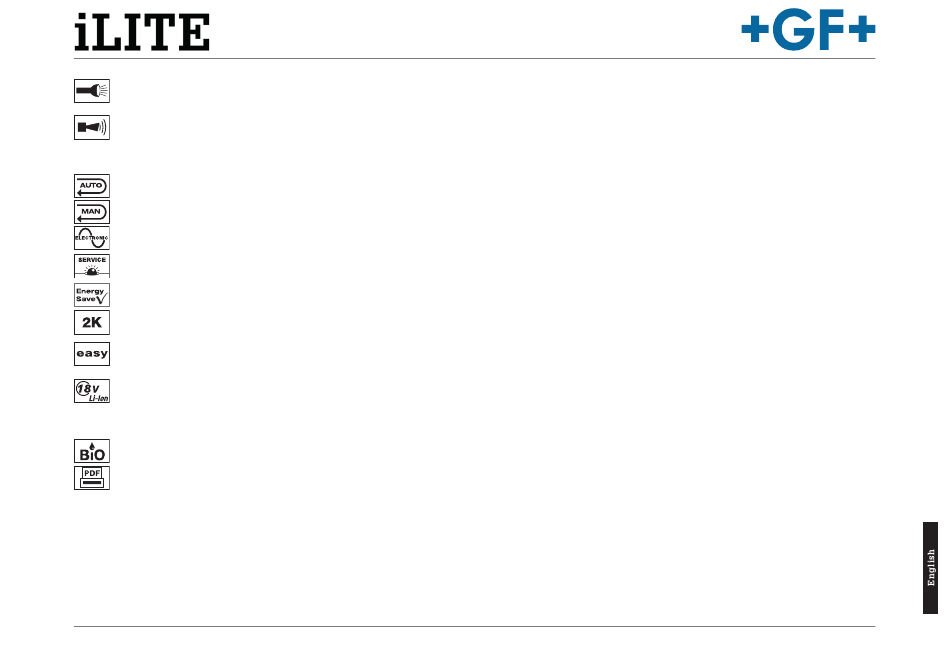

A white LED illuminates the working space after activating the trigger. It automatically switches off 10 sec. after re-
leasing the trigger. This feature can be deactivated (see page 6).
During each working cycle, the achieved pressing pressure is determined by a pressure sensor and compared to the
required minimum value. An audible warning signal sounds if the achieved pressure differs from the specifed work-
ing pressure. The user will know immediately that the fitting must be checked and repressed or replaced as required.
The hydraulic unit incorporates an automatic retraction which returns the piston into its starting position when the
maximum operating pressure is reached.
A manual retraction allows the user to return the piston into the starting position in case of an incorrect crimp.
The unit is equipped with a microprocessor (page 2, pic. 1.4) which shuts off the motor automatically after the com-
pression is completed, indicates service intervals, checks battery capacity and does a trouble check e.g. informing
the user through acoustical and optical warning signals about the kind of error.
Power saving function through motor switch-off.
The ergonomically formed compact housing is made of 2 components. The grip area is rubber coated and is therefore
non-slip. Together with the improved center of gravity the tool allows fatigue-free working.
All tool functions can be controlled by one trigger with a double-click. This results in an easy handling and a better
grip compared to a two button operation.
Li-Ion batteries do neither have a memory effect nor self discharge. Even after long periods of non operation the tool
is always ready to operate. In addition we see a lower power weight ratio with 50% more capacity and shorter char-
ging cycles compared to NiMH batteries.
The oil used in our tool is highly biologically degradeable and not hazardous to water and has been rewarded
„The Blue Angel". The oil is suitable for low temperatures and has excellent lubrication characteristics.
At the end of a job a print-out via a USB adapter can be generated documenting the proper function of the tool.

2.3 Description of the tool indication

See page 41, table 10
