Drawing Cutting - Freund Seaming Pro Mode D'emploi

EN USER MANUAL

21. DRAWING CUTTING

9

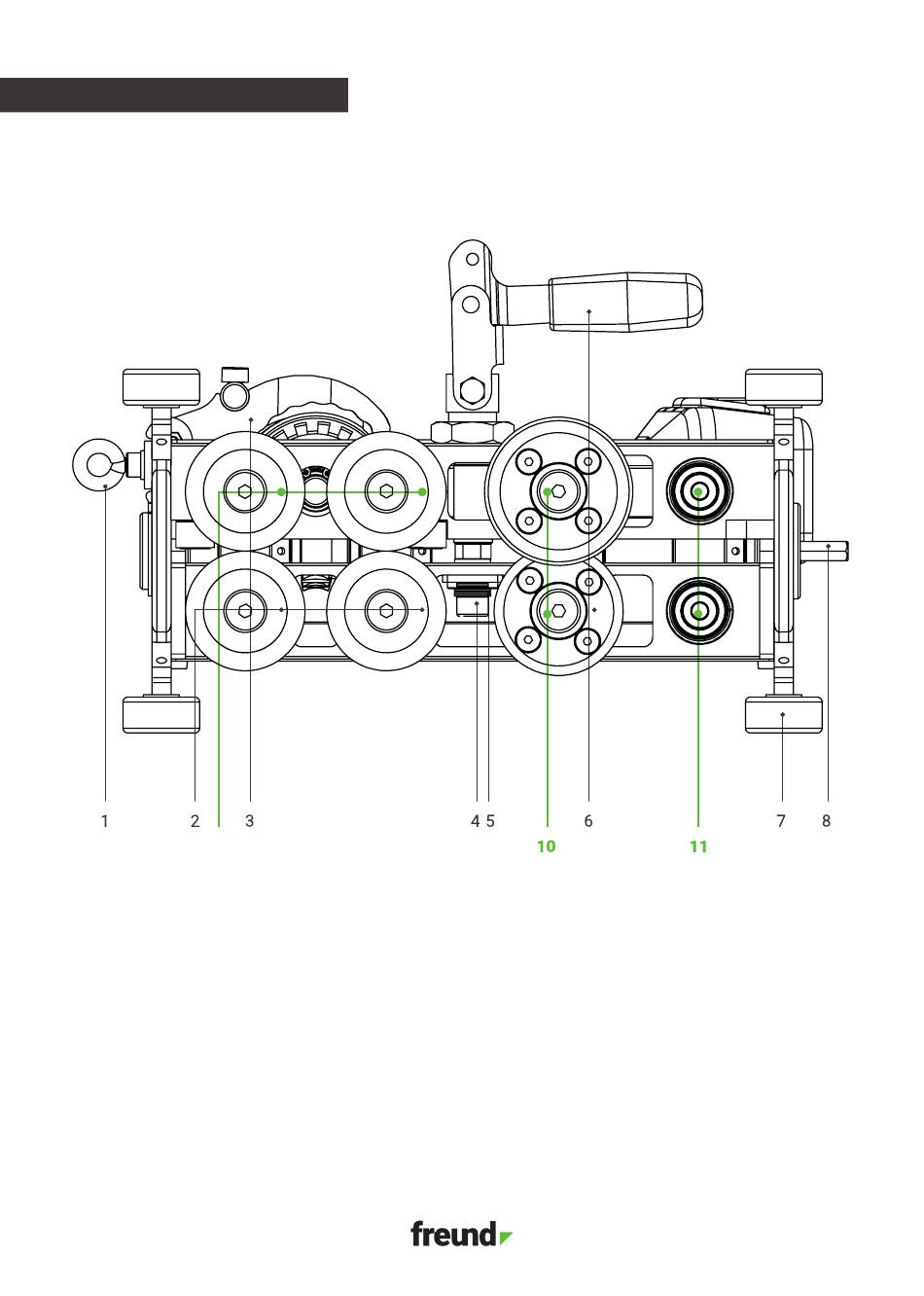

1. Safeguarding with ring bolt
2. Rubber drive rollers
(2 pieces in a row)
3. Holder cordless screwdriver
4. Pressure adjustment screw
5. Disc springs
6. Tension lever
7. Track rolls (4 pieces)
Subject to technical changes. Please observe the safety instructions.
35
8. Rear cordless screwdriver adapter
9. Rubber driving rolls on Position A and B
(Marking on forming rolls and
housing site)
10. Cutting rolls
11. Roll holders free
