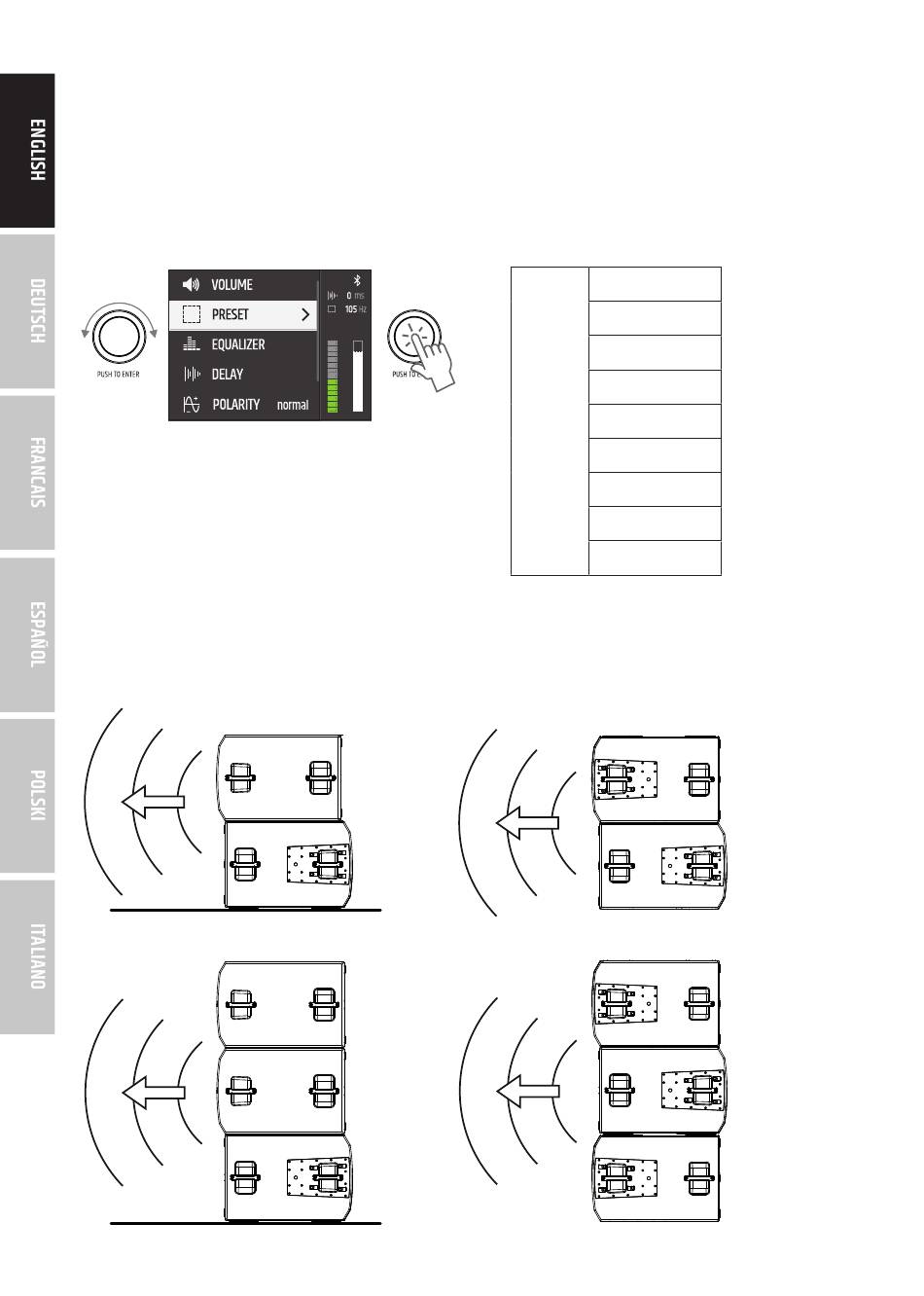

To set the upper crossover frequency of the subwoofer, select PRESET in the main menu, confirm,
then select the desired preset and confirm again. To exit the menu level, select the arrow symbol and
confirm the selection.
The preset with 105 Hz crossover frequency is activated as standard (105 Hz system).
Use this preset in the system with other components of the MAILA Series.
With the help of one or two additional subwoofers (same models, same software version) and the 105
Hz Cardioid preset, a subwoofer array with directional radiation can be realized. The subwoofers are
arranged horizontally, stacked on top of each other (ground stack) and placed upright (standing) or
horizontally next to each other (see illustrations).
