Quantum Scalar i500 Tape Library Guide De Démarrage page 10

f. If stacking the expansion module on top of another module, engage the Y-rails of the new
g. From the front of the library, open the I/E station and access doors of the expansion module.
h. From the back of the library, find the rear Y-rail release mechanism, which is located in the
10
Get user manuals: See SafeManuals.com
module in your library configuration. Ensure that the Y-rails are properly aligned and the
thumbscrews are tightened.

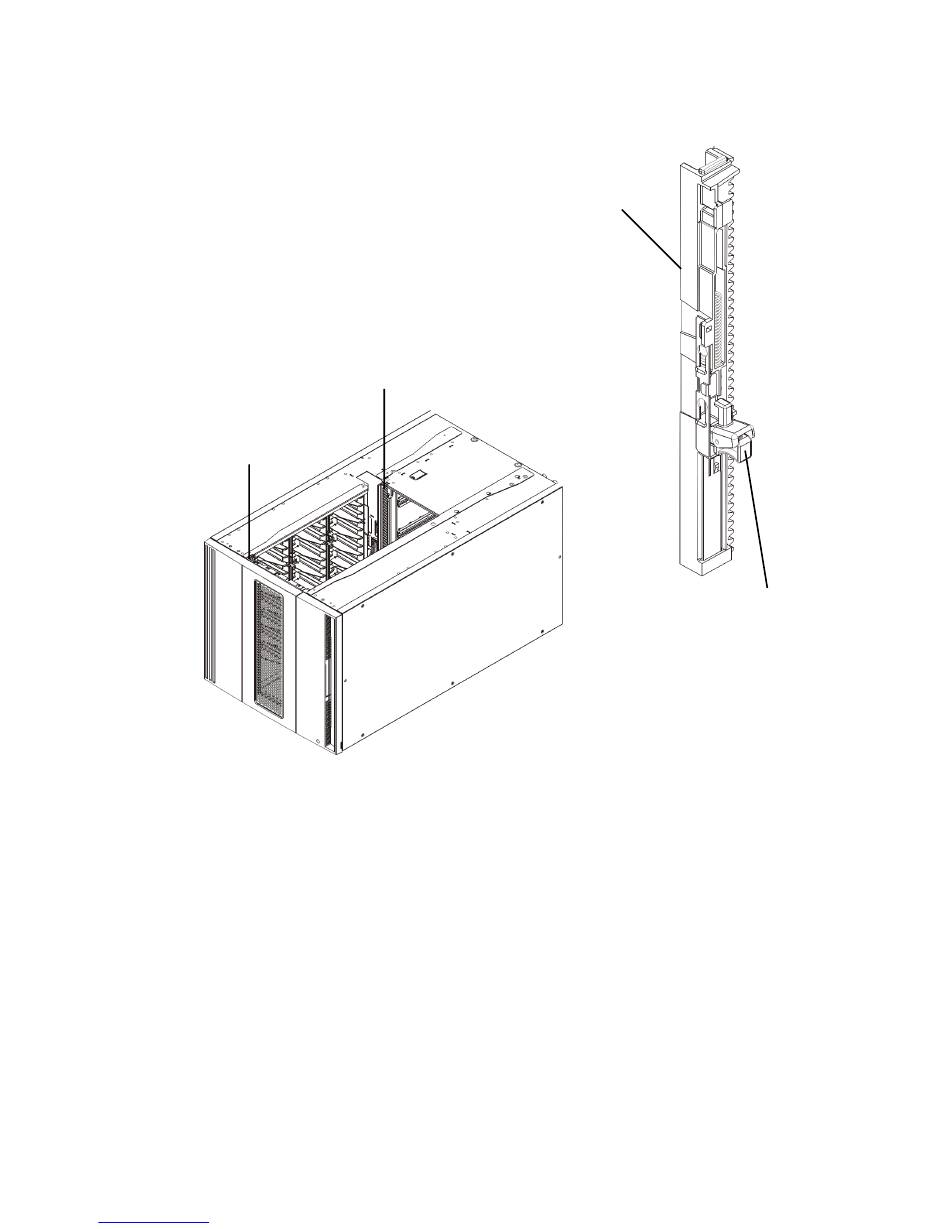

Rear Y-rail
Front Y-rail
Squeeze the handle of the Y-rail release mechanism, lift it out of its locked position, and slide
it downward as far as it will go.
interior of the right side of the module. Squeeze the handle of the Y-rail release mechanism, lift
it out of its locked position, and slide it downward as far as it will go.
Y-rail (this end up)
Scalar i500 Getting Started Guide
Squeeze here
to release
