Mini AC/DC Clamp/ English
• If the equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.
Input Limits
Function
A
V DC, V AC
Frequency, Resistance, Diode, Continuity ,
Capacitance Test

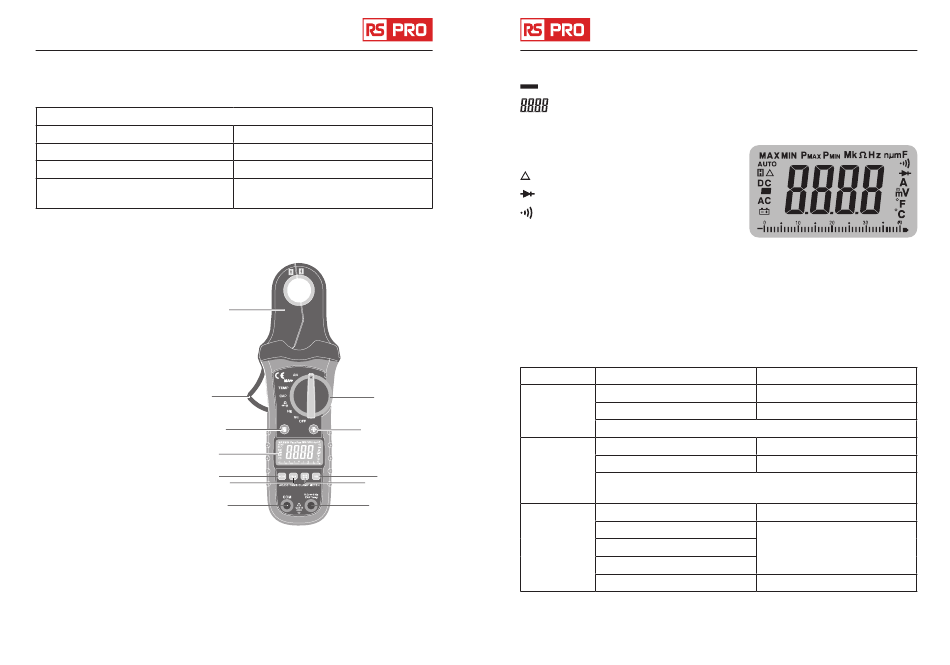

2. Meter Description
1. Current clamp
2. Clamp trigger
3. Rotary Function swith
4. Data Hold button
5. Back Light button
6. LCD display
2
7. MODE select button
8. PEAK button
9. MAX/MIN button
6
10. Relative button
7
11. COM input jack
12. V CAP
12. TEMP Hz jack
2
Maximum Input
80A DC/AC
600V DC/AC
250V DC/AC
1
3
4 5
9
8 10
11 12
rspro.com
AC DC AC (alternating current) and DC (direct currrent)
Minus sign
5000 count (0 to 4999)
measurement reading with 51 segments
Analog Bargraph
AUTO AutoRange mode
Relative mode
Diode test mode
Audible Continuity
H Data Hold mode
o o
C, F, μ, m, V, A, K, M, Ω, Units of measure list
Hz% Frequency/duty cycle test mode
MAX MIN MAX/MIN Hold mode
Pmax Pmin Pmax Pmin Hold mode
3. Specifications
Function Range & Resolution
5000mA DC
DC Current 80 A DC
DC Current ranges specified from 5% to 100% of range
5000mA AC
AC Current
80A AC
(50/60Hz)
AC Current ranges specified from 5% to 100% of range.
Below 10% of range, add 12 counts.
500 mVDC
5 VDC
DC Voltage 50 VDC
500 VDC
600 VDC
rspro.com
Mini AC/DC Clamp/ English
Accuracy (% of reading)
± (2.8% + 20 digits)
± (3% + 8 digits)
± (3.0% +20 digits)
± (3.0% + 8 digits)
± (0.8% +6 digits)
± (1.5% + 2 digits)
± (2 % + 2 digits)
3
