Overview
COMPUTER
1
IMPORTANT:
To capture a video's sound, connect the left and right AUDIO INPUTS to the left and right audio outputs of your
playback device.
To capture the video image itself, choose either the COMPOSITE VIDEO INPUT or the S-VIDEO INPUT.

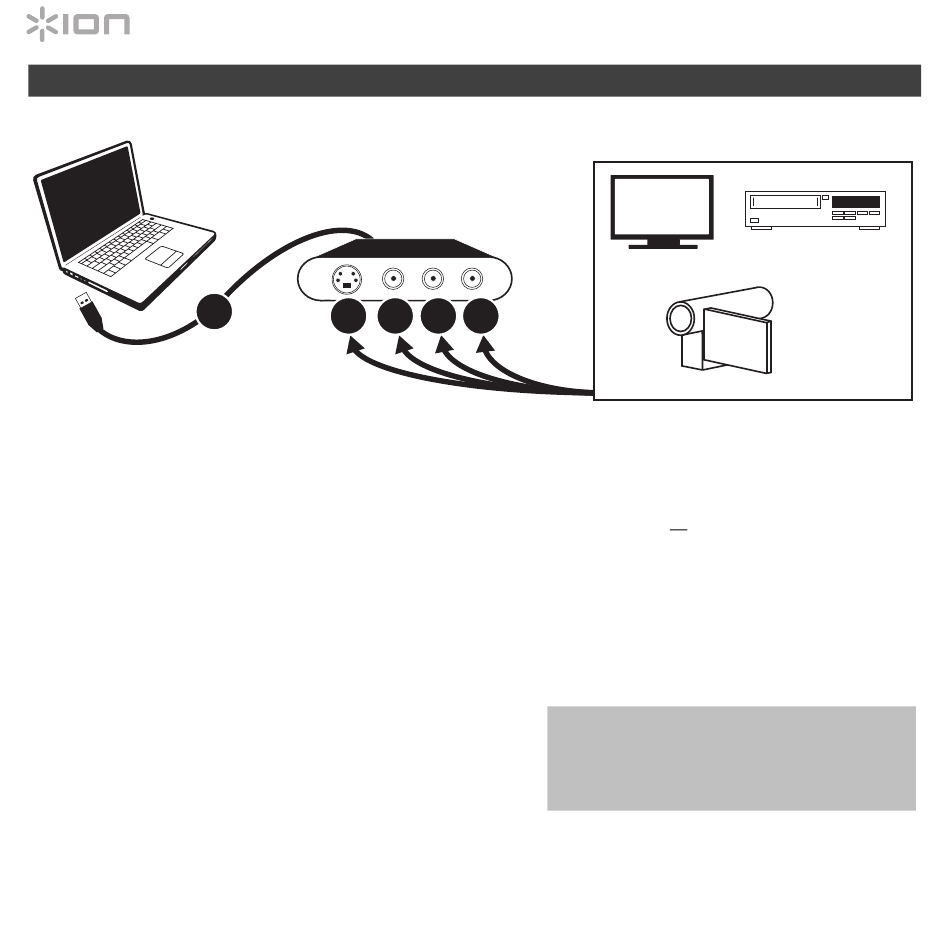

1. USB CONNECTOR – Connect this end of Video 2 PC HD to the included USB extension cable then
connect the extension cable to an available USB 2.0 port on your computer (preferably a port on the
rear panel).
2. AUDIO INPUTS – Use standard RCA cables to connect these left and right audio inputs to the left and
right audio outputs of your playback device. Be sure to match the colors properly – red to red, white to
white.
3. COMPOSITE VIDEO INPUT – Use a standard
composite video cable to connect this input to the
composite video output of your playback device. (If
your playback device has an S-Video output, you may
connect that to the S-VIDEO INPUT instead.)
4. S-VIDEO INPUT – Use a standard S-Video cable (not
included) to connect this input to the S-Video output of
your playback device.
6
4 3 2 2
VIDEO PLAYBACK DEVICE
TV
Note: Generally, S-Video connections are
of a better quality than composite video, so
we recommend using this one if your
playback device has an S-Video output.
VCR
Camcorder
etc...
