Safco TASK MASTER 5113 Instructions De Montage

an LDI Company
New Hope, MN 55428
Visit us on the web:
www.safcoproducts.com
PRODUCT WARRANTY CARD is available online at: www.safcoproducts.com

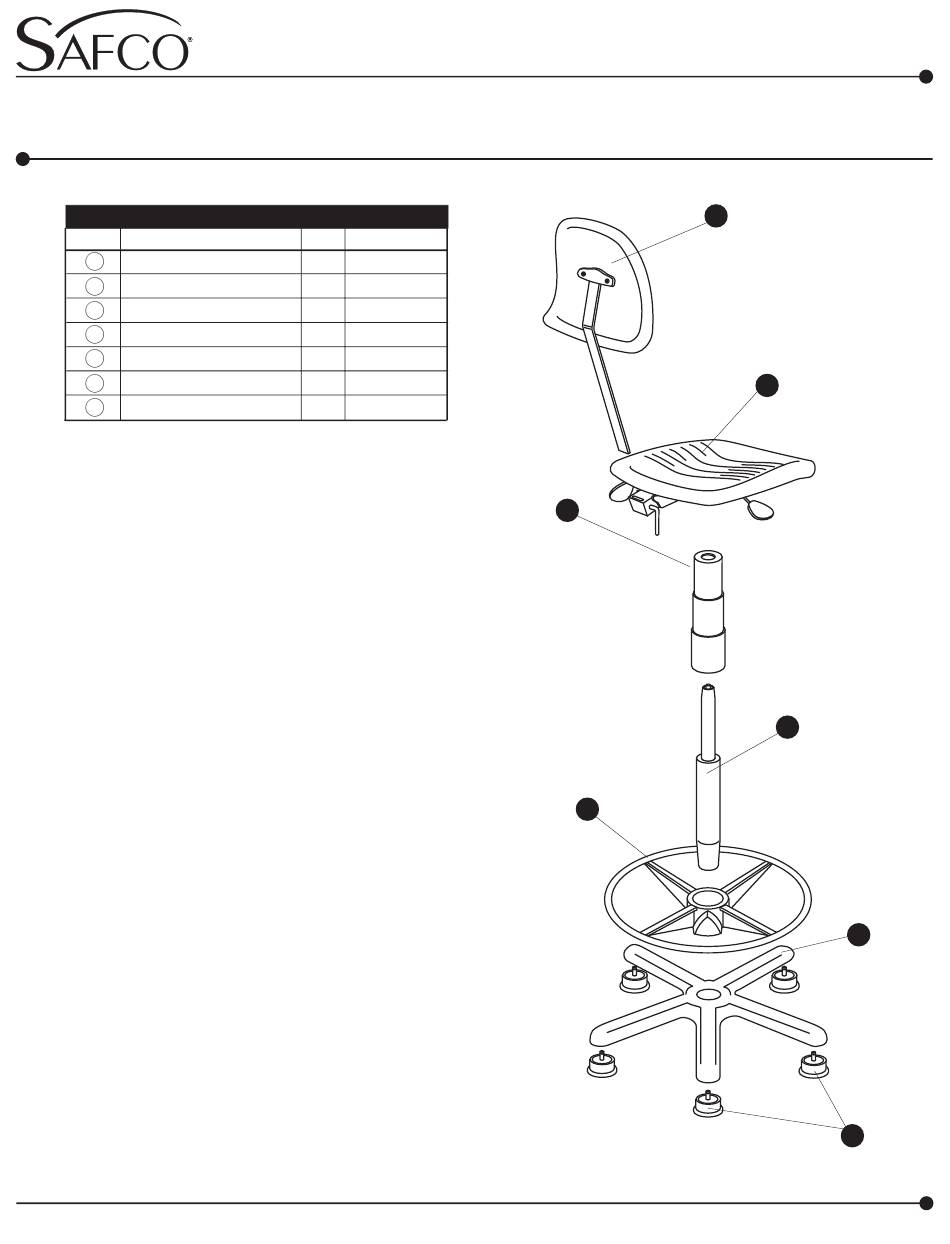

CODE DESCRIPTION
Glide
A
B Base
C Cylinder
Foot Ring
D
E Dust Cover (3 pc set)
F Seat Assembly
Back Assembly
G
Check all parts against Parts List before beginning
assembly. Allow all parts to warm to room tempera-
ture prior to assembly.
1
Install a (A) Glide into each of the legs of the (B)
Base. Press firmly into place. Be sure the glide is
inserted completely into leg for proper stability.
2
Insert the (C) Cylinder into the base, tapered end
down. Secure the cylinder by applying a little down-
ward pressure (CAUTION: When applying downward
pressure, avoid plastic button at top of cylinder, as
pressure will release pneumatic lift)
3
Slide (D) Foot Ring on to cylinder (ring side up),
position at desired height. Turn knob to secure. Place
(E) Dust Cover over exposed cylinder.
4
Install the (F) Seat Assembly by aligning the hole on
the underside with the shaft of the cylinder; push down
firmly on seat.
5
Insert the stem of the (G) Back Assembly into the slot
at the back of the seat. Use a screwdriver to depress
the push button at the bottom of the stem and slide
until the stem goes all the way through the slot and
sticks out the other side about 2". It may be necessary
to rotate the lever at the back of seat assembly
clockwise so stem will slide all the way through the
slot. Rotate the lever counterclockwise to lock the
stem.
6
Make the final chair adjustments following the instruc-
tions on the reverse side.
5113-37MP: 1 of 6;
Rev. 4: 11/06 (8000.03)
All manuals and user guides at all-guides.com
TASK MASTER
A S A S A S S E M B L A S A S S E M B L S E M B L S E M B L Y Y Y Y Y S E M B L
TOOLS REQUIRED: Standard Screwdriver
P A R T S L I S T P A R T S L I S T
P A R T S L I S T P A R T S L I S T P A R T S L I S T
PART NO.
QTY.
5 5110-25
1 5105-54BL
1 5110-11
1 5110-06
1 5110-14
1 5113-01BL
1 5113-02BL
For questions or concerns, please call the
available Monday-Friday 8:00 AM to 4:30 PM (Central Time) (English-speaking operators)
INDUSTRIAL CHAIR
®
(19" - 27" Range)
I N S T R U C T I O N S I N S T R U C T I O N S I N S T R U C T I O N S I N S T R U C T I O N S I N S T R U C T I O N S
E
D
Safco Consumer Hot Line
5113
G
F
C
Registered U.S. Patent D381,823
1-800-664-0042
B
A
