Safco TASK MASTER 5143 Instructions De Montage

New Hope, MN 55428
Visit us on the web:
PRODUCT WARRANTY CARD is available online at: www.safcoproducts.com
www.safcoproducts.com
PARTS LIST PARTS LIST
PARTS LIST PARTS LIST PARTS LIST
CODE
DESCRIPTION
A
Armrest Bracket
B
Left Armrest
C
Bolt
D
Washer
E
Right Armrest
F
Screw, Phillips Pan Head
(for seats with PU (flat) bottom)
Screw, Plastite
G
(for seats with PLASTIC (ribbed) bottom)

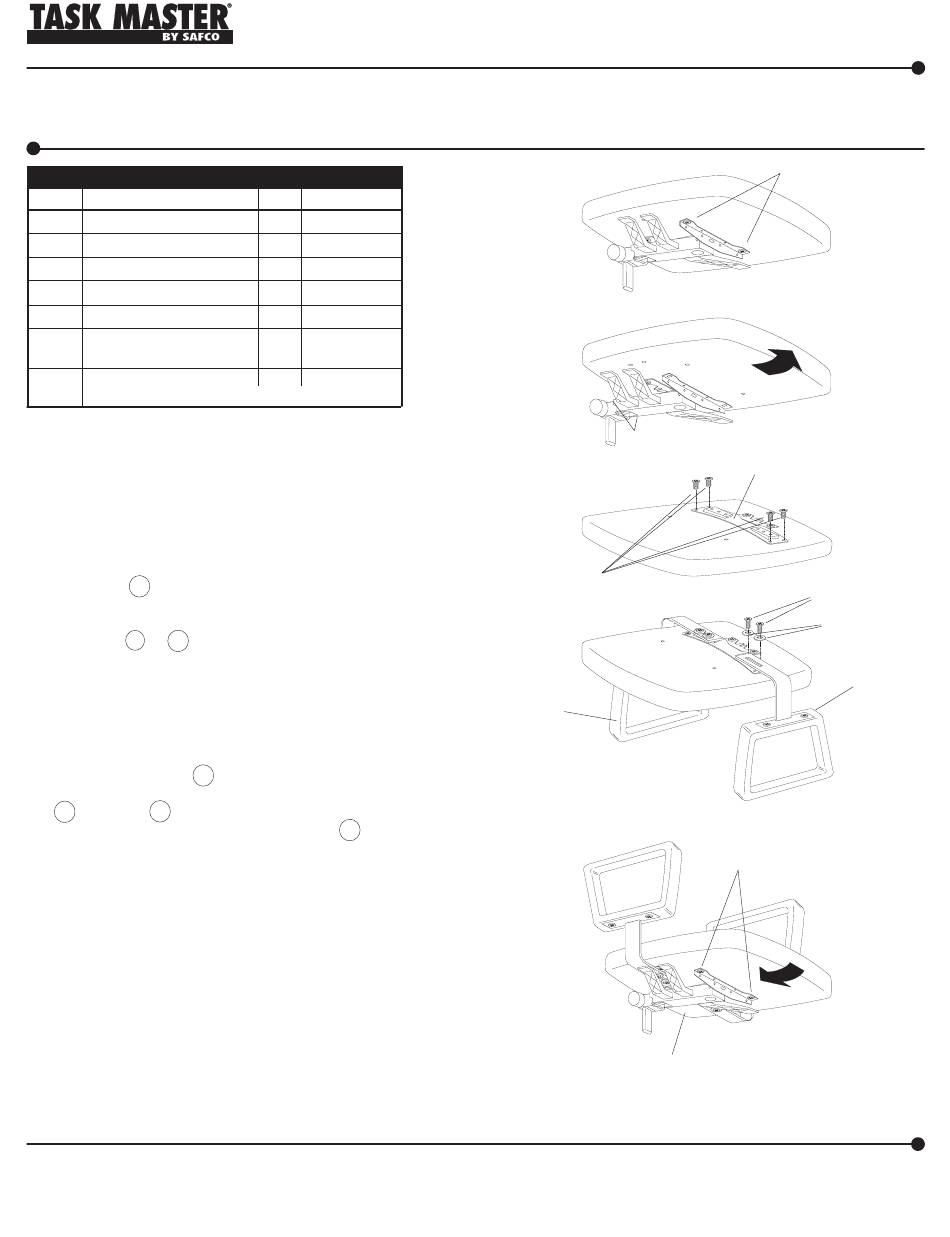

1
Remove the two screws at the front of the control mecha-
nism under the seat. IMPORTANT: save the screws for
later use.
2
If you can slide the seat forward and up to release it from
the control mechanism, do so; if not, remove the remaining
two screws at the back of the control mechanism.
IMPORTANT: save the screws for later use.
3
Mount the A Armrest Bracket, with the notched side facing
the back of the seat bottom (straddling the seat plate if
there is one). The armrest assembly comes with two types
of screws F or G ; match the screw to be used with
screws saved from Step 1 that fastened the control to the
seat. Alternately tighten each screw until securely fas-
tened. NOTE: if a pneumatic or electric screwdriver is
used, make sure it is adjusted to not exceed 50 inch-
pounds of torque at 90 PSI to reduce the chance of strip-
ping the holes.
4
Align the slot in the B Left Armrest with the holes in the
raised portion of the armrest bracket, and attach with
C Bolts and D Washers. Slide armrest to desired width,
then tighten bolts securely. Repeat with E Right Armrest.
5
Place the seat back onto the control mechanism; if the seat
has a seat plate, slide the seat backward until the prongs of
the seat plate engage the control mechanism. Align the
two front holes of the control mechanism with the holes in
the seat, and use the two screws saved in Step 1. If you
removed two screws in Step 2, replace them now. Alter-
nately tighten all screws until securely fastened.
Please note: Fasteners should be checked
periodically and tightened as necessary.
Thank you for purchasing this Safco product. Due to
continual upgrading of our products, photographs or
illustrations may not reflect the actual (exact) appearance
of product.
5143-37MP: 1 of 3: 2/04
Loop-Style Armrest Kit
A S A S A S S E M B L A S A S S E M B L S E M B L S E M B L S E M B L Y Y Y Y Y
QTY. PART NO.
1 5143-54
1 5143-02
4 5143-22
4 5143-21
1 5143-03
4 5143-27
4 5143-28
