Section 3 Installation

3.1 External connections

Figure 1
shows the locations of the power switch and external
connections.

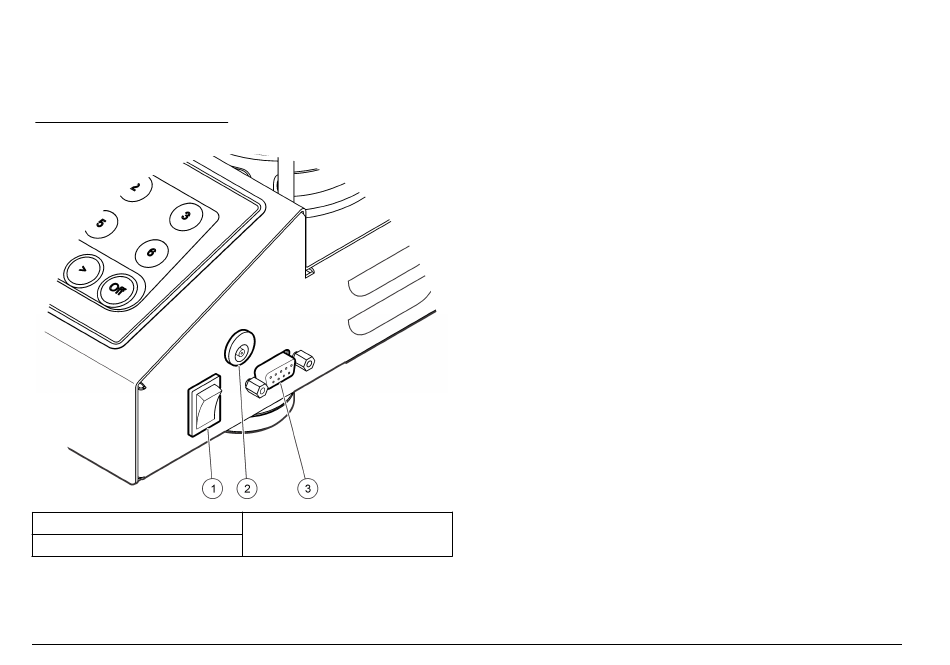

Figure 1 External connections
1 Power switch
2 DC power connector
3.2 Connect the RS232 interface
All RS232 connections are made through the serial I/O port. Connect the
9-pin D connector of a computer interface cable to the serial I/O port on
6 English
3 Serial I/O port
the instrument
(Figure 1
on page 6). Connect the other end of the cable
to the computer serial I/O port (COM 1 or COM 2).
The instrument is equipped as Data Communication Equipment (DCE).
The instrument operates at 9600 baud with 8 data bits, no parity and one
stop bit. The computer or printer will not receive complete transmissions
if the device cannot continuously receive at 9600 baud.
Note: The use of the specified cable or an equivalent shielded cable is necessary
to meet radio frequency emissions requirements.
3.3 Bottle connections
Each bottle position/channel has the applicable tube numbered with a
plastic sleeve. The bottle positions are numbered 1 through 6 with
number 1 in the back left corner of the chassis. Use the channel
selection keys as a guide to the bottle positions
Section 4 User interface
The instrument display and the keypad are shown in
Figure 2
on page 7.
Figure
2.
