ASSEMBLY INSTRUCTIONS

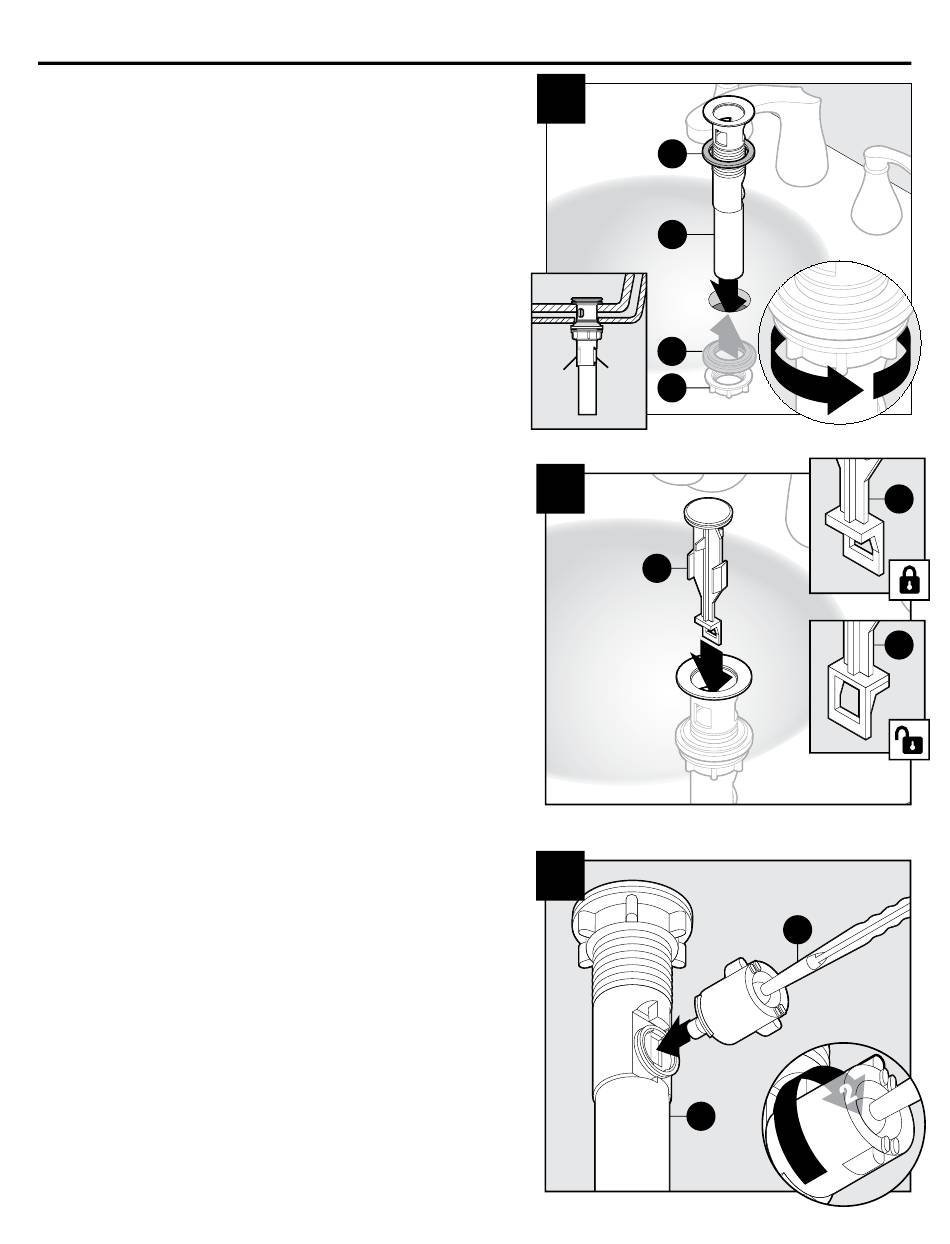

13. Install drain body (DD) and rubber washer
(AA) through top of sink (not included).
Secure with large rubber washer (BB) and
lock nut (CC).
Note: Opening for ball rod (HH) must face
rear of sink.
14. Insert plunger (EE).
Note: Plastic loop on plunger (EE) facing rear
of sink is in locked mode and plunger
cannot be removed. Plastic loop on plunger
(EE) facing the front of sink is in unlocked
mode and can be removed for easy cleaning.
15. Insert ball rod (HH) into drain assembly.
Tighten sleeve.
