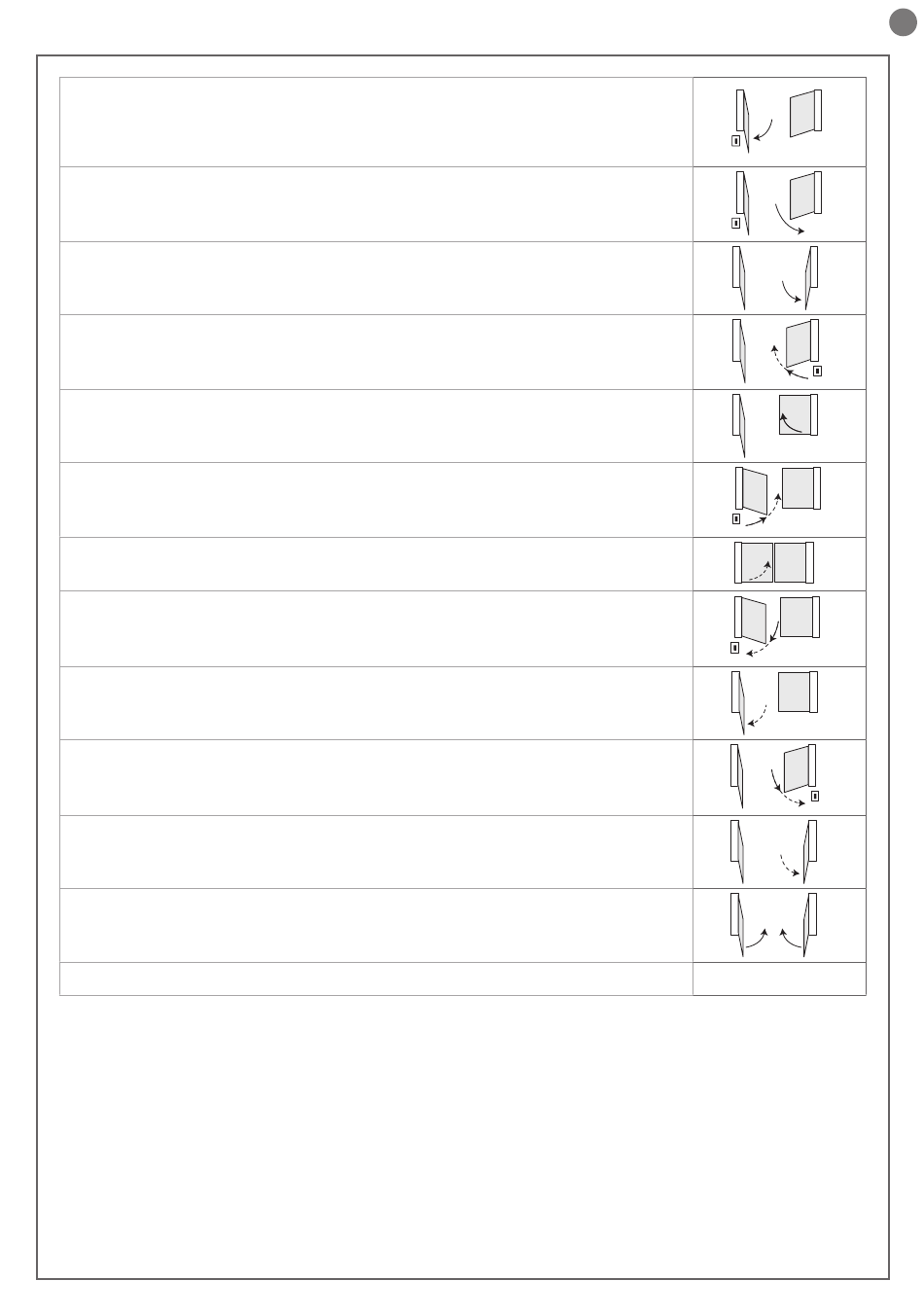

4. Press the pushbuttons UP and MENU at the same time for at least 5 seconds until LOP is displayed,

then (if necessary) press DOWN (see figure).

Ensure that motor M1 opens first; otherwise, press DOWN, turn the power off and invert connections M1

and M2. Repeat the procedure from step 4.

If the first manoeuvre is NOT opening, press DOWN to stop the self-learning process. Then press SBS

to restart acquisition: the leaf resumes movement in the correct direction

5. Motor M1 opens at low speed until it reaches the mechanical opening end stop.

On reaching the mechanical end stop on opening of M1 motor M2 starts automatically in opening mode

(the display shows LO.P.). If motor M2 moves in closing, stop by pressing DOWN and resume movement

using SBS (the leaf resumes movement in the correct direction)

6. The motor M2 opens at low speed until reaching the mechanical opening end stop. After a couple of

seconds, the motor M2 closes at low speed (the display shows LC.L.)

7. On reaching the point where motor M2 closing deceleration is required, press SBS. M2 motor

movement continues at low speed (the display shows SC.L.)

8. On reaching the mechanical end stop of motor M2, motor M1 starts closing

9. On reaching the point where motor M1 closing deceleration is required, press SBS. M1 motor

movement continues at low speed (the display shows SCL)

10. When motor M1 reaches the closed position, motor M1 stops and restarts in opening

11. On reaching the point where motor M1 opening deceleration is required, press SBS. M1 motor

movement continues at low speed (the display shows SOP)

12. When motor M1 reaches the open position, motor M1 stops and motor M2 starts in opening

13. On reaching the point where motor M2 opening deceleration is required, press SBS. M2 motor

movement continues at low speed. (the display shows SO.P.)

14. When motor M2 reaches the open position, motor M2 stops

15. M1 and M2 resume closing according to the offset parameter entered in the menu, i.e. the gate

closes automatically according to the set travel

16. Run a number of opening, closing and stop manoeuvres, to check that the system is stable and there

are no assembly defects.

The deceleration points not assigned manually will be automatically set at 20% of the control unit stroke
