V1.0
1.

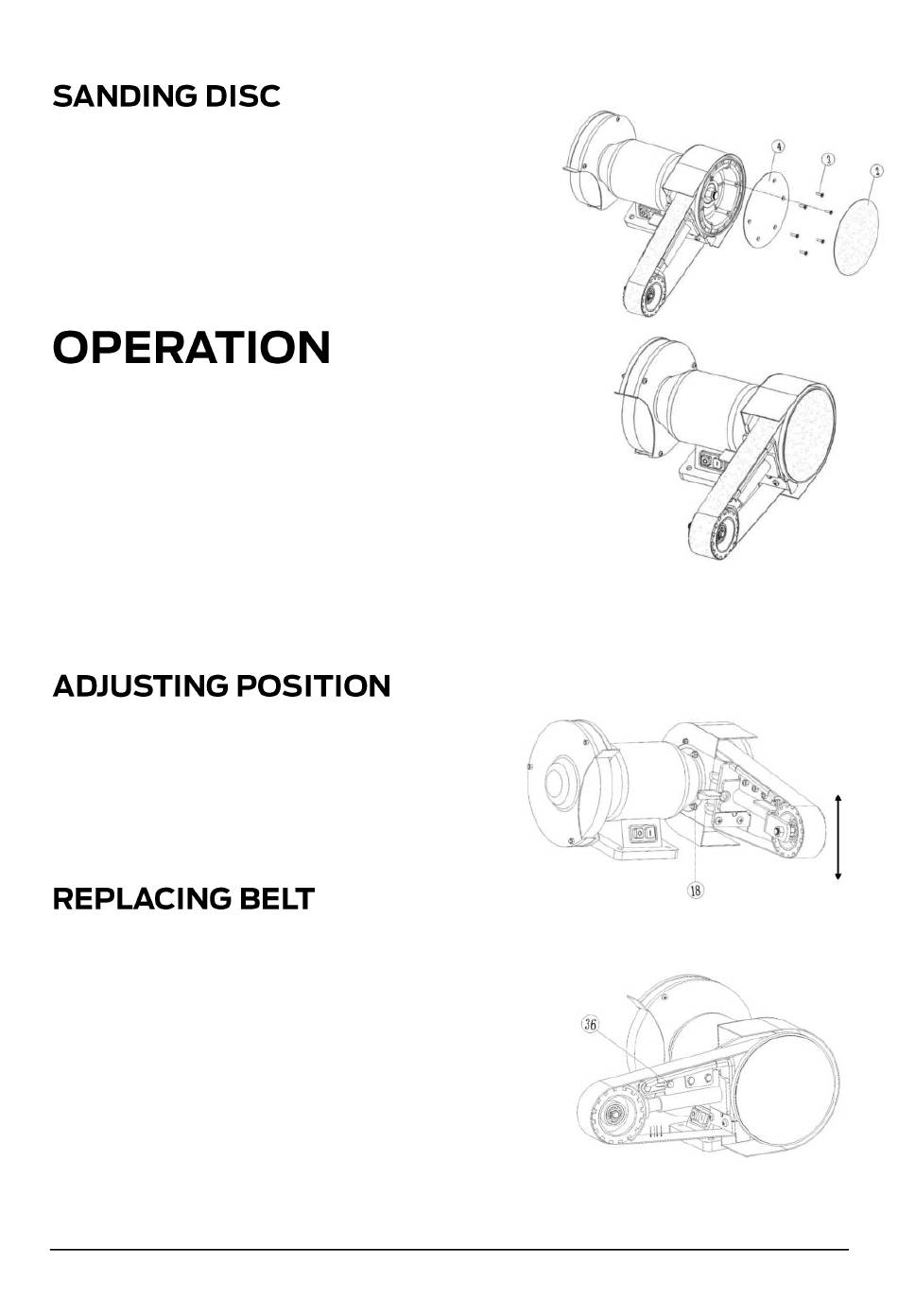

Install the sanding disc (#4) and tighten
the screws (#3) (Fig. 11).
2.
Paste the sanding paper (#2) to the disc
evenly and smoothly (Fig. 11).
3.
Once completed, it should resemble Fig.
12.
1.
Connect the tool to its power source.
2.
Allow the disc to achieve max. speed.
3.
Gently contact workpiece to the sanding
paper.
4.
Separate workpiece from the sanding paper.
4.1 If results are as desired, disconnect tool
form the power source.
4.2 If results are not as desired, continue operation.
1.
Loosen the nut (#18) (Fig. 13).
2.
Adjust the frame up and down to the
desired angle (Fig. 13).
3.
Once in the ideal position, tighten
the nut.
1.
Loosen the bolt (#36) (Fig. 14).
2.
Press the front driven wheel to drop the
tension lock board and fix the driven
wheel support.
3.
Remove the old belt.
4.
Install the new belt.
5.
Lift the tension lock board up to tighten
the nut.
Visit www.princessauto.com for more information
8 in. Belt Grinder Attachment
9082694
Fig. 11
Fig. 12
Fig. 13
Fig. 14
9
