1.

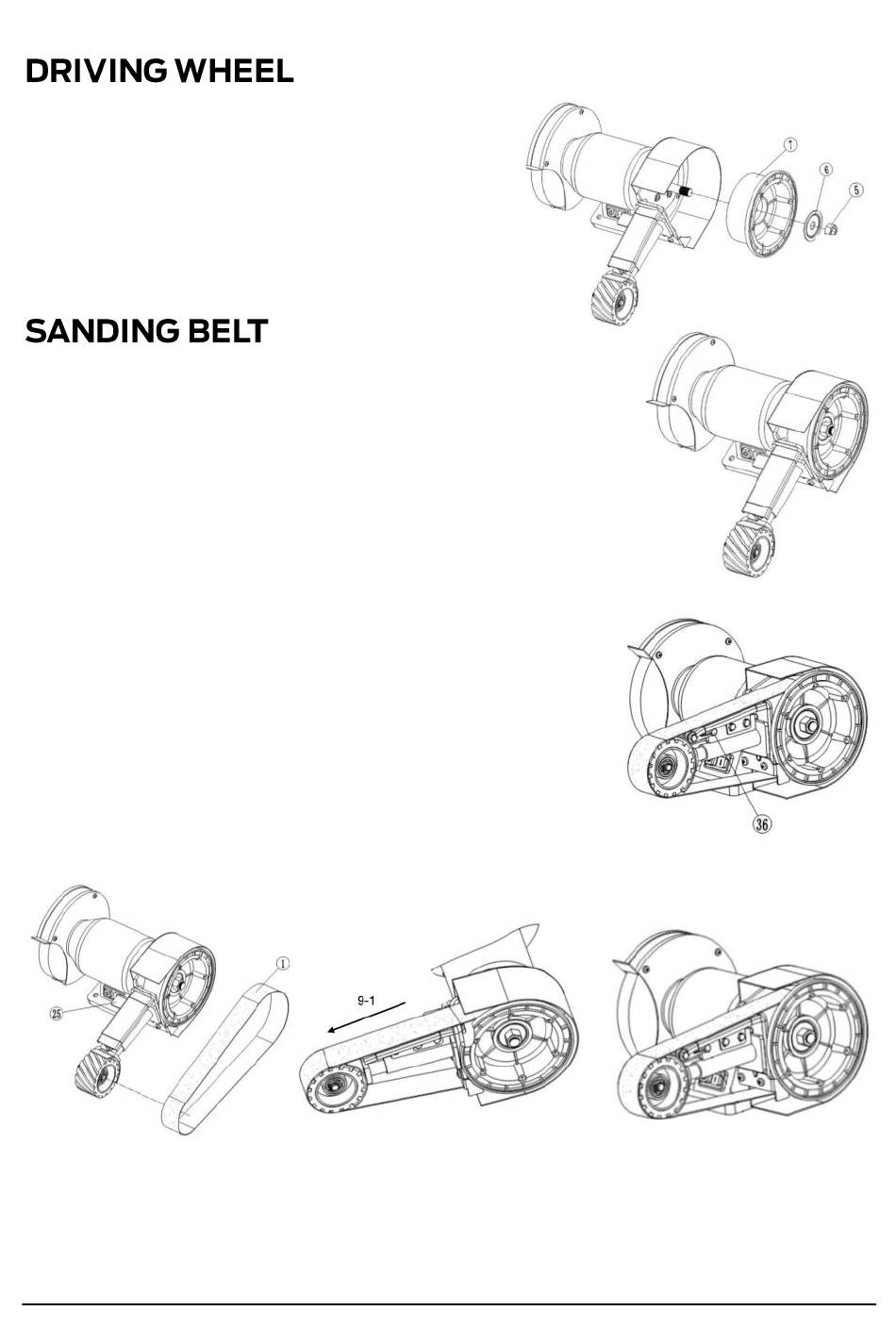

Install the driving wheel (#7) into the
wheel shaft of the grinder (Fig. 5).
2.
Install the grinding wheel flange (#6)
and tighten the nut (#5) (Fig. 5).
3.
Once completed, it should resemble
Fig. 6.
1.
Loosen the bolt (#36) (Fig. 7).
2.
Press the front driven wheel to drop the
tension lock board and fix the driven wheel
support (#38).
2.
Install the sanding belt (#1) (Fig. 8).
3.
Lift the tension lock board up to tighten the
nut.
4.
Turn the sanding belt by hand to check the
running track (Fig. 9-1).
5.
Turn on the power to check alignment.
6.
If necessary, turn off the power and adjust
the eccentric plate (#25) slightly until the
position is ideal (Fig. 7).
7.
Once completed, it should resemble Fig. 10.
8
8 in. Belt Grinder Attachment
Fig. 8
Fig. 9
For technical questions call 1-800-665-8685
V1.0
Fig. 5
Fig. 6
Fig. 7
Fig. 10
