Removing Old Bearing Housing Assembly
27. Remove all six (6) screws (and their copper washers) that at-
tach the old bearing housing to the shell back. Save them for
re-installation.
28. Remove the four (4) nuts, four (4) bolts, eight (8) washers and
two (2) pin dowels attaching the old bearing housing to the
frame.

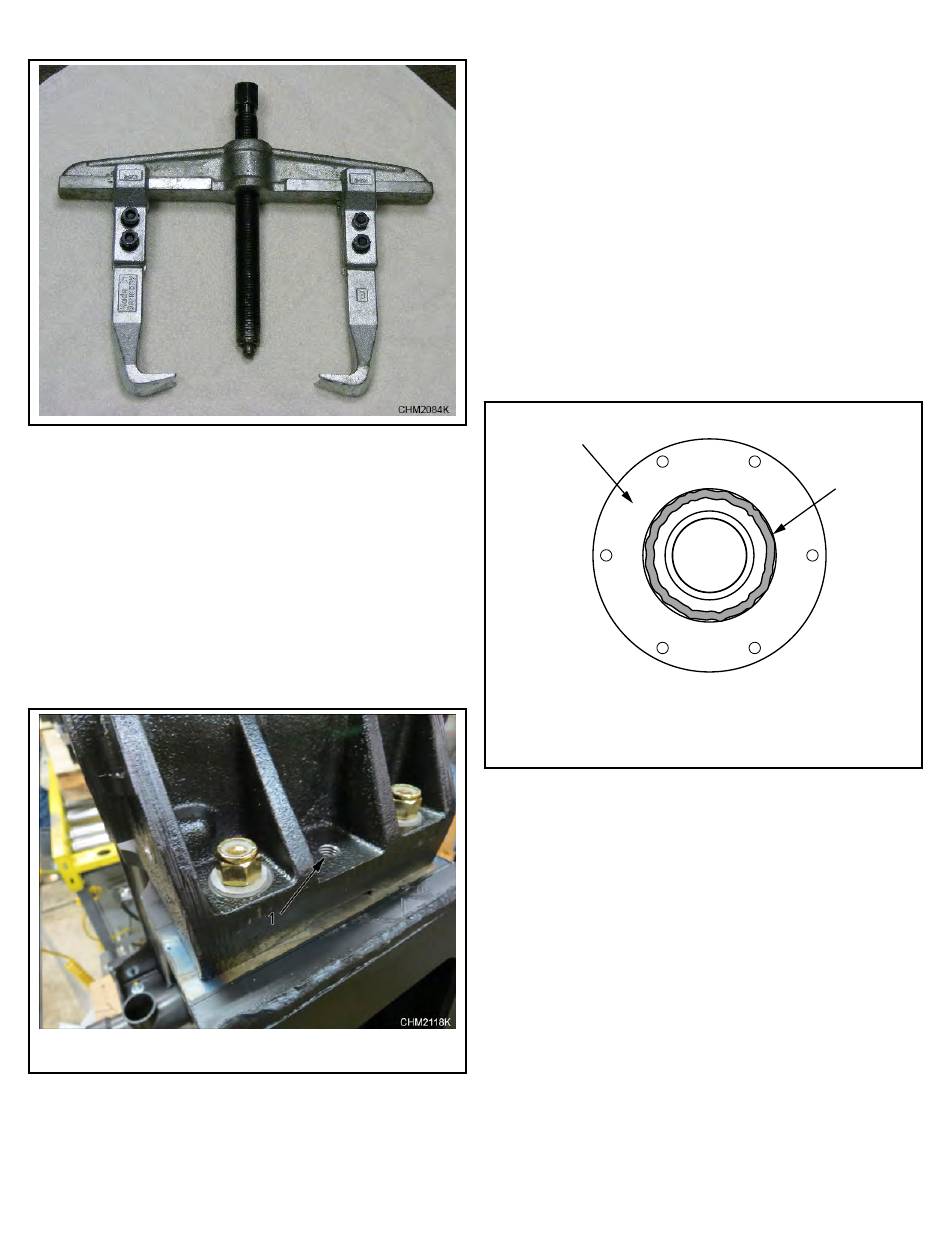

29. Insert the two (2) bolts (removed in Step 28) into the two (2)
bearing housing removal holes and torque evenly to force the
bearing housing from the frame. Remove the bearing housing
assembly from the frame. Refer to Figure 39 .
1. Bearing Housing Removal Hole
©
Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
Figure 38
Figure 39
NOTE: Replacement of the F8350301 Seal Scupper
Pad [*C20-*C30], F8350302 Seal Scupper Pad [*C40]
or F8350303 Seal Scupper Pad [*C60] is recommen-
ded and can be ordered separately.
30. Scrape off all old sealant from the shell back. Clean the shell
back with soap and water, if needed.
31. Wipe the area with Denatured Alcohol. Allow the area to dry.
Installing New Bearing Housing Assembly
32. Apply RTV Sealant to the back of the shell where new
F8271601P Bearing Housing Assembly [*C20], F8271701P
Bearing Housing Assembly [*C30], F8271801P Bearing
Housing Assembly [*C40] or F8271901P Bearing Housing
Assembly [*C60] will be installed. The amount of RTV Seal-
ant should be sufficient to seal the bearing housing without
causing excess to contaminate the main seals. Refer to Figure
40 and Figure 41 .
1
1. Shell Back
2. F410102 RTV Sealant
33. Mount the new Bearing Housing Assembly onto the frame,
lining up bolt and weep holes.
34. Thread one (1) each of the washers (removed in Step 28) onto
the four (4) bolts (removed in Step 28) and thread them
through the frame and new Bearing Housing Assembly. The
side of the washer with writing should face the bolt head.
35. Thread one (1) each of the washers (writing side facing the
bolt head) and the four (4) nuts (removed in Step 28) onto the
four (4) bolts inserted in Step 34 and torque to 41.3 ± 4.1 lb-ft
[*C20], 100.8 ± 1.7 lb-ft [*C30-40], or 200.8 ± 3.3 lb-ft
[*C60].
36. From inside the shell, insert two (2) awls into the shell back
and new Bearing Housing Assembly in opposite holes to align
the screw holes. Refer to Figure 41 .
37. Insert and tighten two (2) of the screws and their copper
washers (removed in Step 27) in opposite holes to secure the
