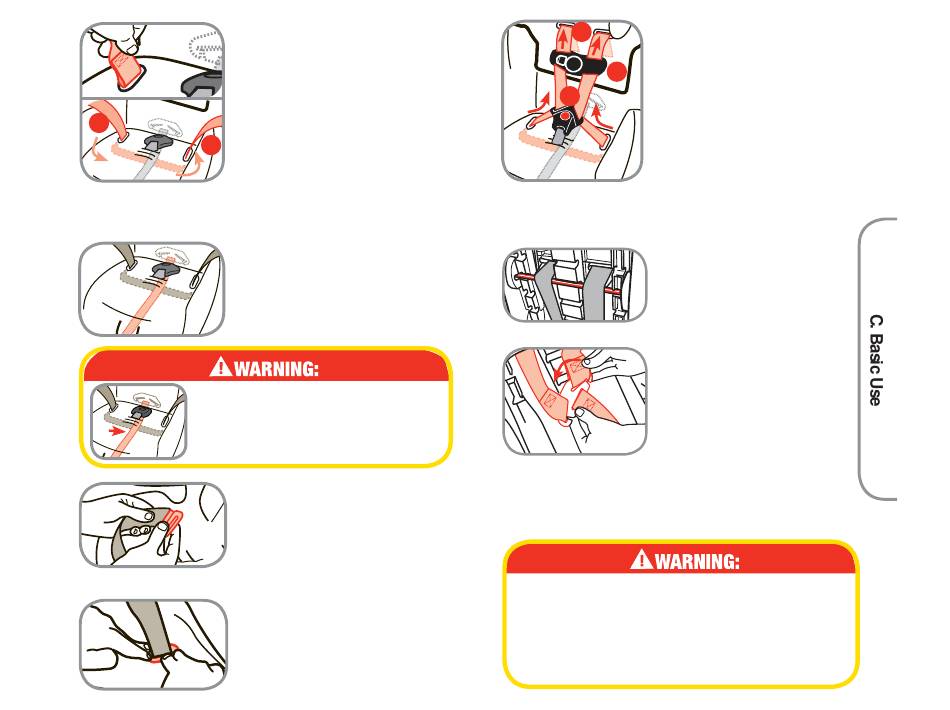

Thread Harness Strap
NOTE:
the harness strap loop faces the
buckle before starting.
Thread the harness strap down
1
through lower harness guide on
left side of shell
2
of shell and up through lower
harness guide on right side (2).
NOTE:
For easier assembly, remove the harness guides. See
section C-8, step 2.
5.
Make Harness Straps Even
Take both ends of the harness
strap and make them even in
length. Do not twist harness
straps.
Failure to place the harness
adjustment strap between shell
and the harness straps as shown
can result in serious injury or
death.
6.
Thread Harness Guides on
Harness Strap
Slide one harness guide on each
harness strap end.
7.
Secure Harness Guides
Press harness guides into the
holes in the pad and shell.
28
Make sure sewn end of
(1)
across bottom
8.
Thread left harness strap
5
through left buckle tongue
and right harness strap
4
through right buckle tongue
(3). Make sure to push
3
through from the back of
buckle tongue. Thread the
chest clip from front to back
as shown (4). Do Not twist
harness straps.
Push left harness strap
through left upper harness guide and right harness strap
through right upper harness guide (5).
9.
Thread Harness Strap
Over Metal Bar
Do Not twist harness straps.
10.
Attach Harness Straps to
Splitter Plate
From the back of the child
restraint, fit the harness
strap loops onto the splitter
plate.
NOTE:
Make sure sewn end of the harness strap loops
faces towards you. DO NOT twist harness straps or
harness adjustment strap and make sure the harness
straps are COMPLETELY ON the splitter plate.
Harness straps MUST be threaded over the
metal headrest adjustment bar.
You must install the harness system properly.
Failure to follow these warnings can result in
serious injury or death.
