2

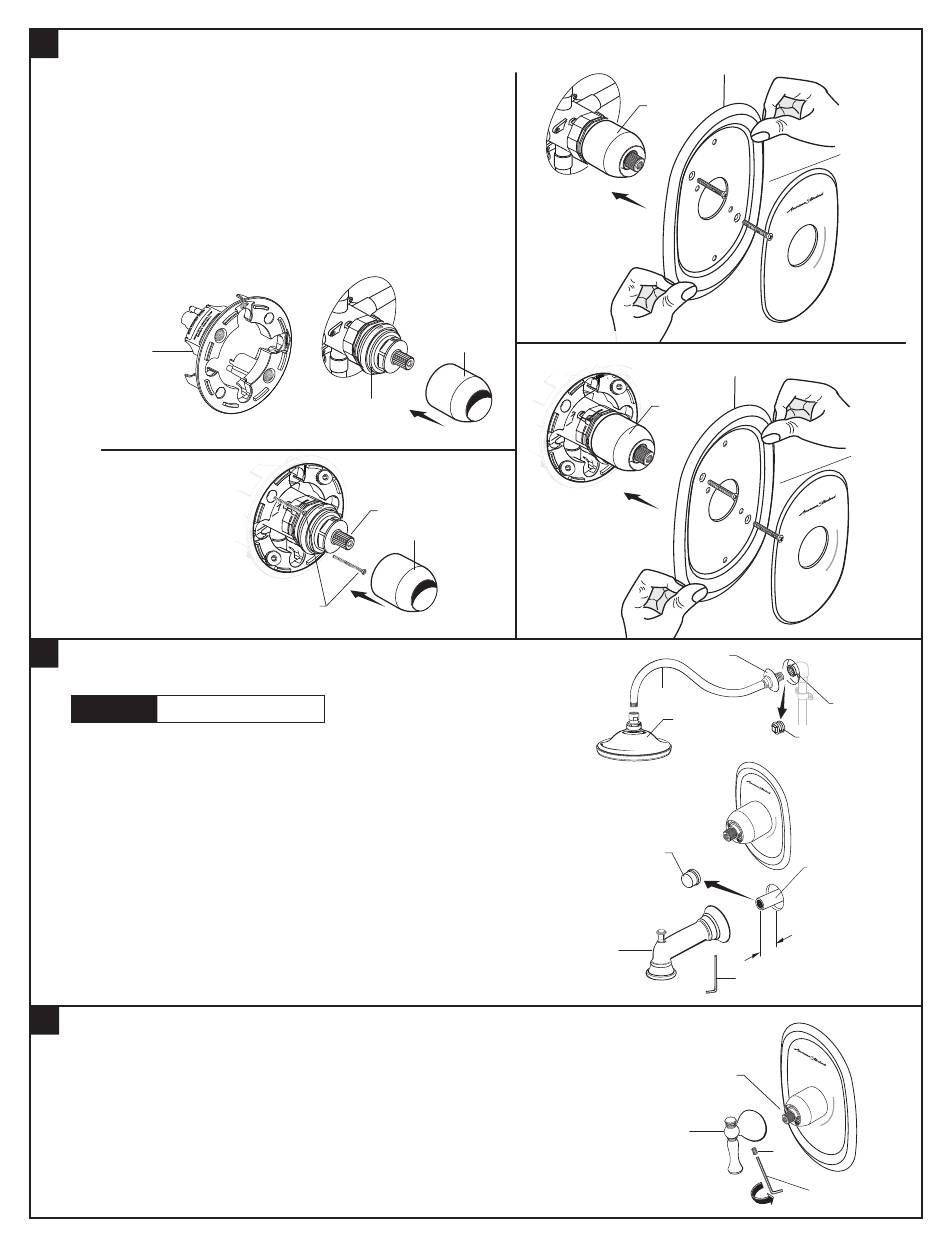

STANDARD WALL INSTALLATION
• Figure 1. Remove plaster guard from valve. Push CAP (1)
over VALVE CARTRIDGE (2) until seated against stop.
• Figure 2. Push ESCUTCHEON (3) onto CAP (1) and attach
to valve body with LONG SCREWS (4).
THIN WALL INSTALLATION
• Figure 1a. Push CAP (1) over VALVE CARTRIDGE (2) until
seated against stop.
• Figure 2a. Push ESCUTCHEON (3) onto CAP (1) and attach
to valve body with LONG SCREWS (4).
PLASTER
GUARD
Figure 1.
Figure 1a.
3
INSTALL TUB SPOUT, SHOWER HEAD,
SHOWER ARM WITH FLANGE
Protect finish on SHOWER HEAD
CAUTION
and TUB SPOUT when installing.
• Remove pipe cap and plug from shower and tub
rough piping.
• Slip TUB SPOUT (1) onto tub nipple and tighten with
4 mm Hex Wrench.
CAUTION: Protect finish on TUB SPOUT when installing.
• Install SHOWER ESCUTCHEON (2) onto SHOWER
ARM (3). Apply sealant or Teflon tape to threads on
both ends of SHOWER ARM (3) and thread longer
leg of SHOWER ARM (3) into shower elbow.
• Thread SHOWER HEAD (4) onto SHOWER ARM (3).
CAUTION: Protect finish on SHOWER HEAD and
and shower arm when installing.
4
HANDLE INSTALLATION
• Install HANDLE (1) by pushing it onto CARTRIDGE STEM (2)
and tightening SET SCREW (3) from below with 2.5 mm
Hex Wrench supplied.
1
2
2
1
4
- 2 -
1
Figure 2.
1
Figure 2a.
3
4
PIPE
CAP
1
1
3
4
H
C
F F
O
3
4
H
C
F F
O
2
SHR.
ELBOW
PIPE
PLUG
H
C
TUB FILLER
NIPPLE
F .
R E
/ 2 "
1 - 1
4MM HEX
WRENCH
2
H
C
3
2.5 MM HEX
WRENCH
M965935 Rev. 1.1 (3/20)
