GENERAL INFORMATION

Overview

This user guide contains important information on installing, operating, and maintaining the
Gryphon™ coin changer. The coin changer takes currency at high acceptance rates and
provides a superior level of resistance against specific types of fraud.

Features

In-field configurable coin cassette.
•
6 auto-replenishing coin tubes.
•
• Big-diameter coin payout.
LCD display panel with instant status updates.
•
Patented coin inventory recognition.
•
• Multi-Drop Bus (MDB), Executive (EXEC), BDV, and JVI (VCCS) interfaces.
Ability to manage coin inventory to minimum levels.
•

Interfaces

The coin changer operat65es in machines that support the following interfaces.

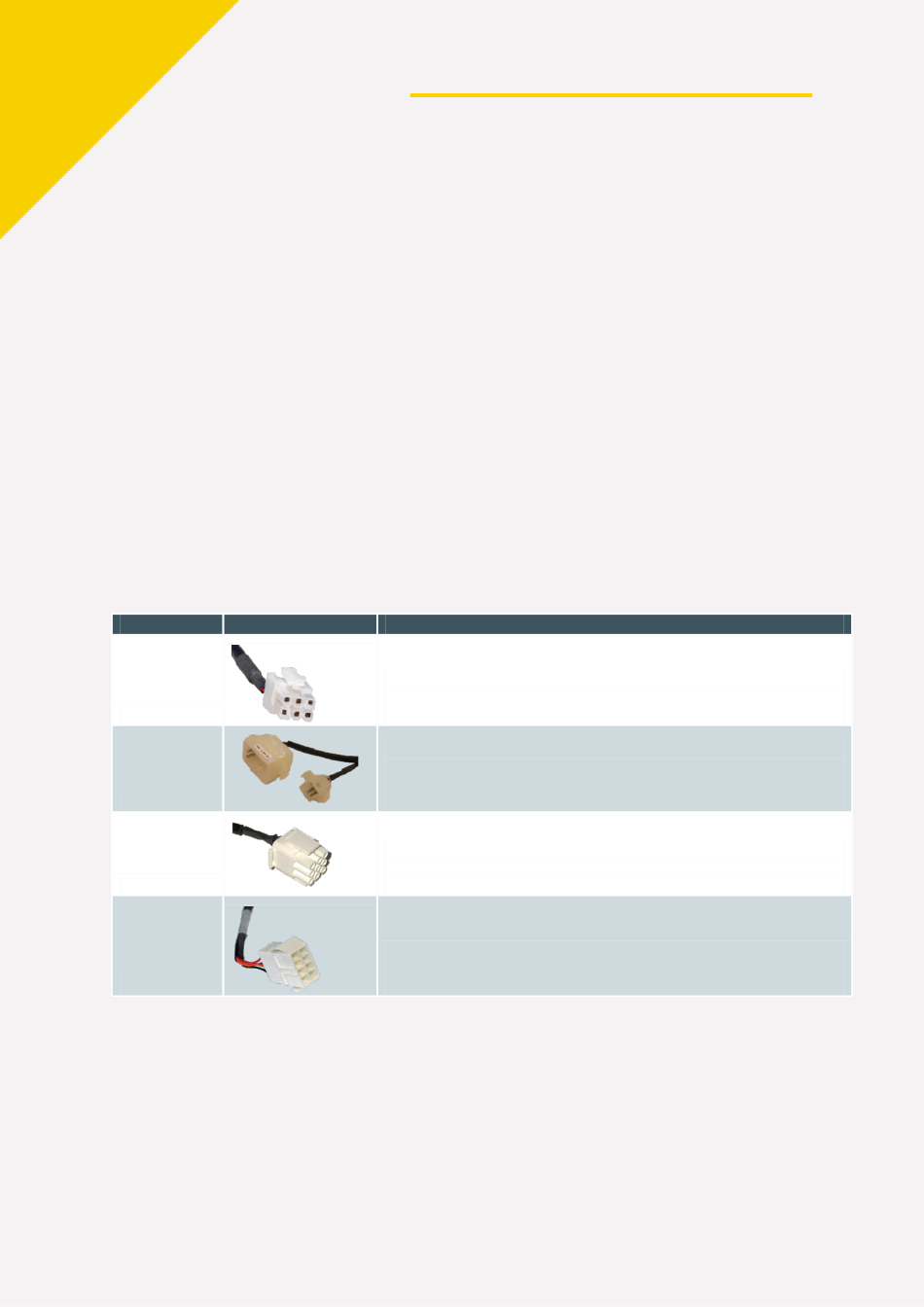

Interface Cable Image
MDB
EXEC
BDV
JVI (VCCS)
Gryphon
™
Description
A serial-communication interface standard used with vending equipment. Allows multiple
devices to be added to a single connection on the vending machine control board by linking
1 device to another that is parallel to the main MDB harness.
A serial executive protocol (or protocol A) that is based on the MEI 20 mA current loop link.
Allows a payment system device to be connected to other third-party devices in a
transaction system.
A German bi-directional serial interface used between component parts inside a vending
machine. This is a super set of protocol A. BDV is an abbreviation for the German Vending
industry committee that has defined the interface.
A serial-communication interface used in Japanese and Korean vending machines. Allows
multiple devices to be added to a single connection on the vending machine control board
by linking 1 device to another that is parallel to the main VCCS harness.
