The warranty will become void if this appliance is used in commercial or industrial enterprises and equivalent applications.
3. Before work

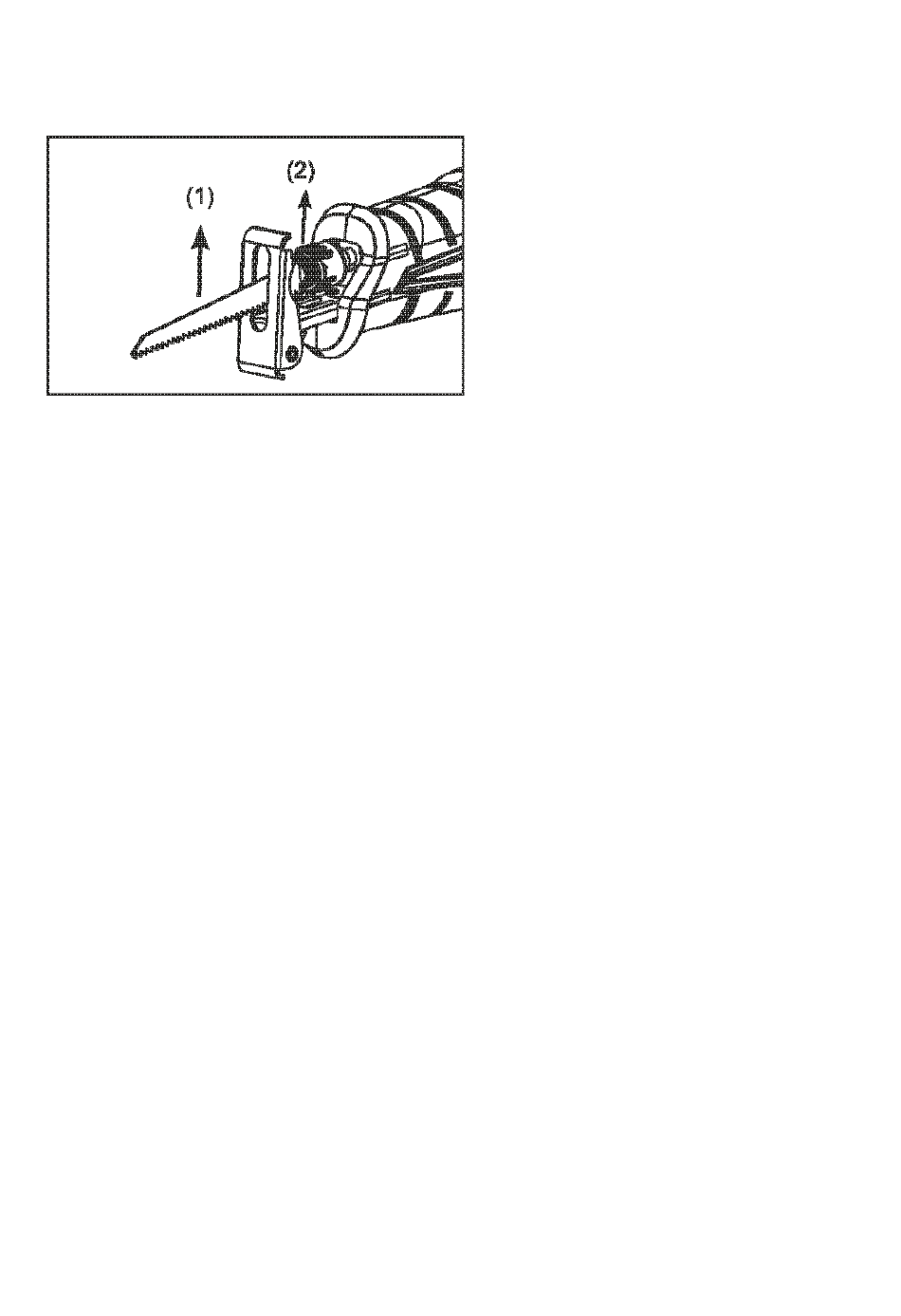

Replacing / Placing the Knife
1.Disconnect the battery first.
2.Rotale the Quick-release blade clamp (2) anticlockwise with hand.
3.At the same time push blade (1) to the deepest position, then release the quick-release blade clamp, make sure it is securely
fastened. WARNING! Before connect the battery, always pull on the blade to make sure it is securely locked in the clamp. Failure
to do so may result in serious injury.
4. Speed adjustment
The speed are controlled by the pressure of the trigger.
NOTE: When cutting soft materials, use a higher speed. When cutting hard materials, use a slower speed.
Switching operation ON & OFF
Make sure the saw blade is not on objects when the machine is turned on.
Before using the saw, make sure the knife and the driver are firmly attached.
Information about the battery and the charger.
The cordless reciprocating saw is supplied without a battery and charger. Use only battery and charger from the Power Tools
series
5. Cutting
5.1. Install the knife and adjust the guide before starting work.
5.2. Press and release the starter switch to make sure that the power button is off.
5.3. Make sure the blade is away from foreign bodies.
5.4. Ensure that the material to be cut is firmly seated. Small work pieces should be firmly clamped in a vise or attached to a
work table.
5.5. Mark the cutting line.
5.6. To start cutting, grab the saw firmly with both hands and away from you. Approach the front of the guide to the workpiece
that will be cut with a knife placed over the workpiece.
IMPORTANT: Do not start cutting if the blade is in contact with anything before the operation.
5.7. Turn on the tool and wait until the saw reaches the maximum speed before touching the workpiece.
5.8. Pass the saw through the workpiece.
WARNING! Keep the driver firmly pressed against the workpiece while cutting to prevent the tool from getting kicked.
5.9. Allow the saw to stop completely before leaving it anywhere.
NOTE! Use only as much pressure as you can to trim the detail. Do not force the cutting, allow the blade and saw to do normal
work.
Using excessive pressure that causes the blade to bend or twist may cause it to break.
