TECHNICAL SPECIFICATIONS

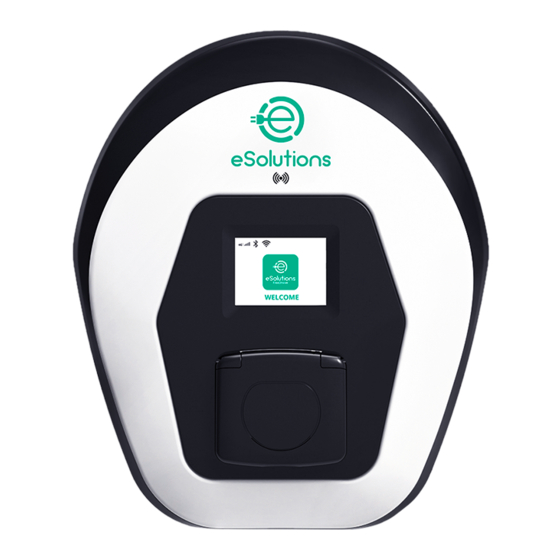

eProWallbox
Commercial reference F2ME.EPROSCYYXXX
Technical reference eProWallbox_B22s_Full
Connectivity and Features
RS-485 Modbus RTU
Y
Ethernet
Y
Bluetooth LE 4.0 Y
Wi-Fi Y
4G / LTE Y
OCPP 1.6 Y
Mobile App Y
RFID reader Y
HMI Y 3.5" TFT touchscreen display
Over-the-air SW upgrade
Y
Energy Meter (built-in)
Y not MID
Y Static
Y Dynamic w/ Ext. Sensor 1 ph (Opt. If requested)
Load management (Static and Dynamic) Y Dynamic w/ Ext. Sensor 3 ph (Opt. If requested)
ISO 15118 (Plug and Charge)
Y
Current phase unbalancing detection
Y
CPMS Y
Description
Recharging Mode Mode 3 - case B
Connector Standard IEC 62196-2 Type 2
Connection features Socket with lid and internal shutter
CE Mark Y
General Specs
Dimensions 403x336x190mm
Weight ~ 5 kg (without cable)
Protection degree IP55 (IEC 60529)
Impact protection rating IK08 (IEC 62262)
Housing UV resistant plastic
Electrical Specs
Up to 7.4 single-phase
Power [kW]
Up to 22 three-phase
230 / 50-60 single-phase
Voltage [V/Hz]
400 / 50-60 three-phase
Current [A] Up to 32
3P + N + PE, 32A, 400 V / 50-60 Hz
Electrical installation
P + N + PE, 32 A, 230 V / 50-60 Hz
AC power system
TT,TN,IT
Electrical supply configuration (Single Phase) Y Rotary Switch
HW Current max. setting Y Rotary Switch
Safety and Operation
Operating Temperature range [°C] -25°C/+50°C (without direct exposure to sunlight)
Overheating protection Y
Humidity Resistance < 95% (non condensing)
Housing fire ratings UL94 V-0 | GWFI 960
Overvoltage category OVC III
Residual current monitoring Y 6 mA DC sensitive RCM device included for DC-
Maximum installation height [m] 2000 a.s.l.
Mounting Wall or optionally on a dedicated pole
eProWallbox MOVE
F2ME.EPRFSEYYXXX
eProWallbox_B22s_Entry
Y
Y
Y
Y
N
Y
Y
N
Color LEDs Bar
Y
Y not MID
Y Static
Y Dynamic w/ Ext. Sensor 1 ph (Opt. If requested)
Y Dynamic w/ Ext. Sensor 3 ph (Opt. If requested)
N
Y
Y
Mode 3 - case B
IEC 62196-2 Type 2
Socket with lid and internal shutter
Y
403x336x190mm
~ 5 kg (without cable)
IP55 (IEC 60529)
IK08 (IEC 62262)
UV resistant plastic
Up to 7.4 single-phase
Up to 22 three-phase
230 / 50-60 single-phase
400 / 50-60 three-phase
Up to 32
3P + N + PE, 32A, 400 V / 50-60 Hz
P + N + PE, 32 A, 230 V / 50-60 Hz
TT,TN,IT
Y Rotary Switch
Y Rotary Switch
-25°C/+50°C (without direct exposure to sunlight)
Y
< 95% (non condensing)
UL94 V-0 | GWFI 960
OVC III
Y 6 mA DC sensitive RCM device included for DC-leakage
2000 a.s.l.
Wall or optionally on a dedicated pole
