OWNER / OPERATOR MANUAL
MODE D'EMPLOI
MANUAL DE INSTRUCCIONES
WARNING
The engine exhaust from
this product contains
chemicals known to the
State of California to cause
cancer, birth defects or
other reproductive harm.
WARNING
Before using our products,
please read this manual
carefully to understand the
proper use of your unit.
APPLICABLE SERIAL NUMBERS :
70800101 and up
AVERTISSEMENT
Les échappements du
moteur de ce produit
contiennent des produits
chimiques connus par l'Etat
de Californie comme étant
responsables de cancers,
d'anomalies congénitales et
d'autres atteintes à
l'appareil reproducteur.
AVERTISSEMENT
Avant d'utiliser cette
, veuillez lire
produit
attentivement ce manuel
afin de bien comprendre le
bon fonctionnement de cet
appareil.
NUMEROS DE SERIE APPLICABLES :
70800101 et au-delà

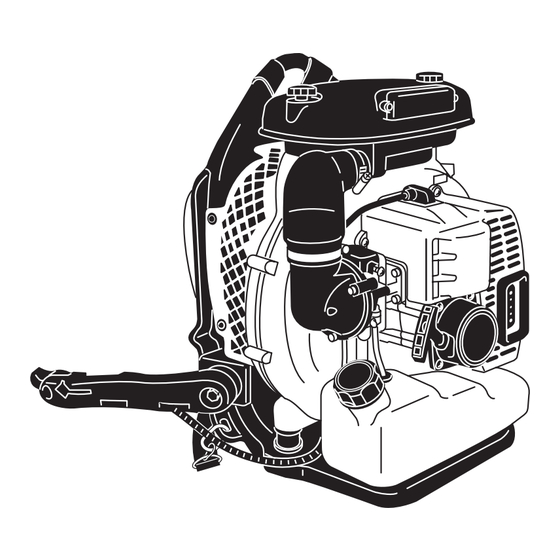

BACKPACK BLOWER
SOUFFLANTE DORSALE
SOPLADOR DE MOCHILA
EBZ7100
EBZ7100RH
EBZ7100-CA
EBZ7100RH-CA
ADVERTENCIA
Los gases de escape del
motor de este producto
contienen sustancias
químicas conocidas por el
Estado de California como
causantes de cáncer,
malformaciones en recién
nacidos y otros problemas
de reproducción.
ADVERTENCIA
Antes de usar nuestros
ce
productos, lea
detenidamente este manual
a fin de familiarizarse con el
uso correcto de este
aparato.
NÚMEROS DE SERIE APLICABLES:
70800101 y superior
