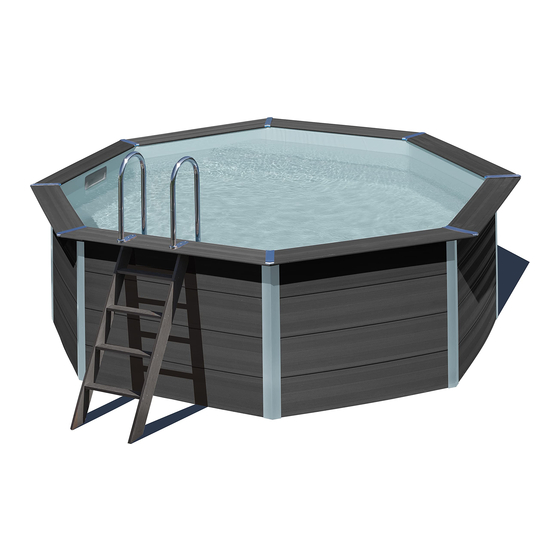

GRE KPCO41 Notice De Montage

Masquer les pouces Voir aussi pour KPCO41:
Table des Matières

Publicité

Liens rapides

Télécharger ce manuel
www.grepool.com
KPCO41
Ø4,10m
KPCOV52
5,24 x 3,86 H 1,24m
KPCOV66
6,64 x 3,86 H 1,24m
KPCOV66L
6,64 x 3,86 H 1,24m
KPCOV80
8,04 x 3,86 H 1,24m
NON-CONTRACTUAL PHOTOS AND PICTURES. FOTOS E IMÁGENES NO CONTRACTUALES. PHOTOS ET IMAGES NON CONTRACTUELLES. PHOTOS UND BILDER SIND NICHT VERTRAGLICH.
LA FOTOGRAFIA O IL DISEGNO È SOLO A SCOPO ILLUSTRATIVO ED INFORMATIVO. FOTO'S EN AFBEELDINGEN HEBBEN GEEN CONTRACTUELE WAARDE. FOTOS E IMAGENS NAO CONTRATADA.
Instruction Manual
EN
Take the reference number of your pool into
account when you do the assembly
Manual de Instrucciones
ES
Tenga en cuenta la referencia y las medidas de
su piscina a la hora de realizar el montaje
Notice de Montage
FR
Considérez la référence et les mesures de
votre piscine avant de procéder au montage
Bedienungsanleitung
DE
Bitte beachten Sie die Referenz und die
Masse Ihres Schwimmbads, wenn Sie die
Montage ausführen
Manuale delle instruzioni
IT
Tener presente il riferimento della piscina al
momento del montaggio
Handleiding met instructies
NL
Op het moment van monteren dient u
rekening te houden met de referentie en de
afmetingen van uw zwembad
Manual de instruções
PT
Tenha em conta a referência da piscina momento
de realizar a montagem

Publicité

Table des Matières
loading

Manuels Connexes pour GRE KPCO41

Sommaire des Matières pour GRE KPCO41

  • Page 1 Tenha em conta a referência da piscina momento Bedienungsanleitung de realizar a montagem Bitte beachten Sie die Referenz und die www.grepool.com Masse Ihres Schwimmbads, wenn Sie die Montage ausführen KPCO41 Ø4,10m KPCOV52 5,24 x 3,86 H 1,24m KPCOV66 6,64 x 3,86 H 1,24m KPCOV66L...
  • Page 3 SUMARY: 1 - SAFETY PRECAUTIONS. 2 - COMPONENTS. 3 - PREPARATION OF THE SITE. 4 - INSTALLATION. 5 - MAINTENANCE AND USE. ÍNDICE: 1 - CONSEJOS DE SEGURIDAD. 2 - COMPONENTES. 3 - PREPARACIÓN DEL TERRENO. 4 - INSTALACIÓN. 5 - MANTENIMIENTO Y USO. SOMMAIRE: 1 - CONSEILS DE SECURITE.
  • Page 4 IMPORTANT - Read carefully the whole manual before mounting the pool. - Before starting with the installation, extend all the pool components and check that they are the same as the ones on page 23. - Handle with care all the swimming pool parts. They are very fragile and can be damaged easily. - In case of failure to following these instructions, the warranty will be completely invalidated.
  • Page 5 Contractual elements such as illustrations may vary, regarding on shape, colour and aspect. Manufacturas Gre in its commitment to ongoing improvement of their products, reserves the right to modify at any time and without previous warning the features, the technical details, the standardized equipment and the different options of its products.
  • Page 6 ATTENZIONE Leggere attentamente queste informazioni e e conservarle per farvi riferimento in futuro Congratulazioni per la tua scelta. Il modello che hai scelto è stato progettato in modo particolare per una installazione semplice e rapida, ma per un uso corretto della piscina sono necessarie alcune precauzioni. Prima di procedere con l’installazione e il montaggio della tua piscina, informati su quanto previsto dal piano regolatore.
  • Page 7 The guarantee is valid in all the UE countries, UK and Switzerland. The pool’s structure has a 5 year warranty since the date that the GRE offers the buyer -in addition to the rights of guarantee from product has been purchased. This warranty covers insect attacks the seller that correspond by law and without limiting them- and rotting.

  • Page 8: Safety Instructions

    PROLOGUE SAFETY INSTRUCTIONS PACKAGING, CLASSIFICATION AND RECYCLING The filter kit (filter + pump) should be installed at least 3.5 metres • Some pool components are packed in plastic bags. To avoid all from the pool to avoid the risk of electrocution. risk of asphyxia, never allow babies or children to play with these.
  • Page 9 Europea, UK y Suiza. • Utilización de materiales no conformes a nuestras instrucciones Gre ofrece al comprador – además de los derechos de garantía • Utilización incorrecta de producto químico para el mantenimiento que le corresponden por ley ante el vendedor y sin limitarlos –...

  • Page 10: Antes Del Montaje

    ANTES DEL MONTAJE INSTRUCCIONES DE SEGURIDAD EMBALAJE, CLASIFICACIÓN Y RECICLAJE Es obligatorio colocar el kit de filtración (filtro + bomba) a una • Algunos componentes de la piscina están embalados en bolsas distancia mínima de 3,5 metros de la piscina para evitar el riesgo de plástico.

  • Page 11: Garantie

    • Utilisation incorrecte d’un produit chimique pour l’entretien de l’eau. Gre offre à l’acheteur - en plus des droits de garantie qui lui • Variations de couleur. correspondent par la loi au vendeur et sans les limiter - un droit •...

  • Page 12: Avant-Propos

    AVANT-PROPOS CONSIGNES DE SECURITE EMBALLAGE, TRI ET RECYCLAGE Il est impératif de placer votre kit de filtration (filtre + pompe) à au • Certains composants de votre piscine sont emballés sous sacs moins 3,5 m. du bassin afin d’éviter tout risque de choc électrique. plastiques.
  • Page 13 • Farbänderungen und die Schweiz • Verursachte Schäden (Brüche und Kratzer) Gre bietet dem Kunden – zusätzlich zu den dem Kunden gesetzlich - Liner: 2 Jahre auf Nähte und die Wasserfestigkeit unter normalen und ohne Einschränkung entsprechenden Gewährleistungsrechten Nutzungsbedingungen. Folgendes fällt nicht unter die Garantie: –...

  • Page 14: Sicherheitshinweise

    EINLEITUNG und leicht zugänglichen Ort sein. SICHERHEITSHINWEISE Die Position des Swimmingpools muss frei von Rohren oder elektrischen Anschlüssen sein. Es ist erforderlich, den Filtrationsbausatz (Filter + Pumpe) in einem Bitte berücksichtigen Sie, dass sich ein Pool am besten an einem Mindestabstand von 3,5 Metern zum Pool zu platzieren, um das sonnigen Tag aufstellen lässt und Tage mit viel Wind zu vermeiden Risiko eines Stromschlags zu vermeiden.
  • Page 15 Svizzera. dall’azienda • Utilizzo non corretto di prodotti chimici per il trattamento Gre offre al compratore - a parte dei diritti di garanzia che le dell’acqua corrispondono secondo la legge verso il venditore e senza limitarli • Variazioni di colore - un diritto secondo le condizioni dei seguenti obblighi garantiti •...
  • Page 16 INTRODUZIONE ISTRUZIONI DI SICUREZZA IMBALLAGGIO, CLASSIFICAZIONE E RICICLO È obbligatorio collocare il kit di filtrazione (filtro + pompa) a una • Alcuni componenti della piscina hanno un imballaggio in distanza minima di 3,5 metri dalla piscina per evitare il rischio di plastica.
  • Page 17 • Bij gebruik van materialen die niet in overeenstemming zijn met Zwitserland onze instructies Gre biedt de koper –naast de rechten op garantie die men volgens • Bij onjuist gebruik van chemicaliën voor wateronderhoud de wet heeft tegenover de verkoper en zonder beperking daarop •...

  • Page 18: Veiligheidsinstructies

    WOORWOORD VEILIGHEIDSINSTRUCTIES VERPAKKING, AFVALSCHEIDING EN RECYCLING Het is verplicht om de filterkit (filter + pomp) op een minimum • Enkele componenten van het zwembad zijn verpakt in plastic afstand van 3,5 meter van het zwembad te plaatsen om het risico zakjes.
  • Page 19 A garantia é válida nos países membros da UE, UK e na Suiça. as instruções do fabricante A Gre oferece ao comprador – além dos direitos de garantia que • Utilização incorreta de produtos químicos para a manutenção lhe correspondem por lei perante o vendedor e sem limitá-los da água...

  • Page 20: Instruções De Segurança

    PRELIMINAR INSTRUÇÕES DE SEGURANÇA EMBALAGEM, CLASSIFICAÇÃO E RECICLAGEM É obrigatório colocar o kit de filtração (filtro + bomba) a uma • Alguns componentes da piscina estão embalados em sacos de distância mínima de 3,5 metros da piscina para evitar o risco de plástico.
  • Page 21 SAFETY PRECAUTIONS CONSEJOS DE SEGURIDAD CONSEILS DE SECURITE SICHERHEITSHINWEIS CONSIGLI DI SICUREZZA RAADGEVINGEN VOOR DE VEILIGHEID PLANO DE INSTALAÇÃO...

  • Page 22: Safety Advices

    CONSEILS DE SECURITÉ INFORMACIÓN DE SEGURIDAD SAFETY ADVICES Avant d’installer et d’utiliser, la piscine, veuillez lire Antes de instalar y de utilizar la piscina, lea aten- Carefully read, understand, and follow all informa- attentivement, assimiler et respecter toutes les in- tamente la información recogida en el presente tion in this user manual before installing and using formations contenues dans cette notice d’utilisation.
  • Page 23 >inizio > servizi > servizi tecnico > italia TAR-NOS! Freie nummer: 0 800-952 49 72 web: www.grepool.com/en/after-sales SERVIÇOS TECNICO EM PORTUGAL: e-mail: info-germany@gre.es web: www.grepool.com/it/post-vendita link web > inicio > serviço > serviço técnico > portugal web: www.grepool.com/de/kundenservice web: www.grepool.com/post-venta...
  • Page 24 COMPONENTS Draw and clasify all components included before assembly. It’s time to assemble the ladder and the pump, follow the respective instructions. Kits with missing parts will be covered by the warranty only if reported to the after-sales service within 15 days as from the date of purchase of the swimming pool.
  • Page 25 ( *voor kits ). Busque o modelo da sua piscina na seguinte tabela e verifique que o número de UNIDADES dentro de cada caixa ou embalagem coincide com esta tabela ( * para os kits ). KPCO41 KPCOV52 KPCOV66 KPCOV66L KPCOV80 IMAGE...
  • Page 26 IMAGE KPCO41 KPCOV52 KPCOV66 KPCOV66L KPCOV80 COMPCOVER ETCOMP AR1174CO PV1185 PEU2 PEAO E ( 950 mm ) A ( 1440 mm ) KITENVCO41 KITENVCOV52 KITENVCOV66(L) KITENVCOV80 LINER FILTER SK101G SILEX MPROV PLWPB...
  • Page 27 PREPARATION OF THE SITE PREPARACIÓN DEL TERRENO PRÈPARATION DU TERRAIN VORBEREITUNG DES BODENS PREPARAZIONE DEL TERRENO BEREIDING VAN HET TERREIN PREPARAÇÃO DO TERRENO...

  • Page 28: Above Ground

    First level Above ground Semi in-ground In-ground This is a determining stage in the construction of your pool. Certain works performed in situ, like the preparation of the land, the concrete slab, the draining... could need the intervention of professionals that will suggest the most adequate solutions. Select the ideal location, in the sunniest spot possible, taking into account the local regulations (distance from the paths, public rights of way, networks...) and the landscaping after installing the pool.
  • Page 29 Nivel de filtración Sobre el suelo Semienterrada Enterrada Es una etapa determinante en la construcción de su piscina. Determinados trabajos de puesta en marcha, como la preparación del terreno, la losa de hormigón, el drenaje... pueden precisar la intervención de profesionales que sabrán proponerle las soluciones adecuadas. Seleccione el emplazamiento ideal, lo más soleado posible, teniendo en cuenta la normativa local (distancia de la cerca, servidumbres públicas, redes...) y el paisajismo posterior a la instalación de la piscina.
  • Page 30 Niveau de la filtration Hors-sol Semi-enterrée Enterrée C’est une étape déterminante dans la réalisation de votre piscine. Certains travaux de mise en oeuvre tels que le terrassement, la dalle béton, le drainage,... peuvent nécessiter l’intervention de professionnels qui sauront proposer les solutions adéquates. Choisissez l’emplacement idéal, le plus ensoleillé...
  • Page 31 Filtrationshöhe An der oberfläche zur Hälfte eingelassen Ganz eingelassen Dies ist eine entscheidende Etappe beim Aufbau Ihres Pools. Bestimmte Arbeiten bei der Inbetriebnahme, wie etwa Geländevorbereitung, Betonplatte, Entwässerung… können den Einsatz von Fachleuten erforderlich machen, die in der Lage sind, Ihnen geeignete Lösungen vorzuschlagen. Wählen Sie den idealen Standort, d.
  • Page 32 Livello di filtrazione Fuori terra Seminterrata Interrata È un passaggio determinante nella costruzione della piscina. Determinati lavori di messa in funzione, come la preparazione del terreno, il basamento di calcestruzzo, il drenaggio... possono necessitare l’intervento di professionisti che proporranno le soluzioni adeguate. Scegliere la collocazione ideale, il più...
  • Page 33 Filterniveau Op de grond Half-verzonken Verzonken Dit is een bepalende fase tijdens de aanleg van uw zwembad. Er moet worden aangevangen met een aantal werkzaamheden, zoals de voorbereiding van het terrein, de betonvloer, de afvoer... dit kan vragen om de hulp van professionals die weten hoe ze de juiste oplossingen moeten uitvoeren. Kies een ideale plaats uit, zo zonnig mogelijk, maar houd daarbij rekening met de plaatselijke normen (afstand tot de grondscheiding, publieke erfdienstbaarheid, leidingnetwerken...) en de landschapsinrichting na installatie van het zwembad.
  • Page 34 Nível de filtração Em superficie Semienterrada Enterrada É uma etapa determinante na construção da sua piscina. Determinados trabalhos de colocação em funcionamento, como a preparação do terreno, a laje de betão, a drenagem... podem precisar da intervenção de profissionais que saberão propor-lhe as soluções adequadas. Selecione a localização ideal, o mais soalheira possível, tendo em conta o regulamento local (distância da vedação, servidões públicas, redes...) e o paisagismo posterior à...
  • Page 36 KPCO41 4,46 m 4,46 m KPCOV52 5,86 m 4,46 m KPCOV66 7,26 m 4,46 m 7,26 m 4,46 m KPCOV66L KPCOV80 8,66 m 4,46 m Mark the installation area: Identify your pool model in this table for the dimensions needed for installation.
  • Page 37 INSTALLATION INSTALACIÓN IMPLANTACIÓN MONTAGE INSTALLAZIONE INSTALLATIE INSTALAÇÃO...
  • Page 38 C’ C’ E’ E’ KPCOV52 KPCO41 KPCOV66 (L) KPCOV80 F’ F’ D’ D’ C-C = D-D C-D = C’-D’ E-E’ = F-F’ KPCOV41 1,50m 1,50m 1,50 m KPCOV52 2,90m 3,40m 4,80 m KPCOV66 (L) 4,30m 3,40m 6,20 m KPCOV80 5,70m...
  • Page 39 OPTION 4A: INSTALLATION OF THE POOL ON THE GROUND. Finishing: On the cleaned and levelled ground, spread a light coat of sieved sand (max. 1cm). Water and compact it (with a garden roller). Check that is well levelled. Do not use the sand to level the ground. To install the pool properly, the finishing has to be perfectly leveled.
  • Page 40 2 - 3 KPCOV80 REFS. Nº X - C D - G = D’ - G SIZES KPCOV52 +/- 150 cm 45,5 cm 444 x 15 x 15 cm KPCOV66 (L) +/- 150 cm 45,5 cm 444 x 15 x 15 cm KPCOV80 +/- 150 cm 45,5 cm...
  • Page 41 PV1185 PV1185 ± 3470 mm PV1185 PEBP08 ± 4340 mm TM640x2 KPCOV52 KPCOV66 (L) KPCOV80 1 PV1185 + 4 PEAO + 2 PEU2 Nº13 + 1 PEU + 1 PG Mounting of the columns (C) and the interior structure: 1º- Mount each column with the following parts: 1 PV1185 + 4PEAO + 1 PG + 2PEU2 + 1PEU with the “TV”...
  • Page 42 PV1185 Beam assembly Perform all of these steps on firm, level ground. It is important to perform assembly of these parts in a wide and level space for greater conve- nience. 1-Place the “PEU2” piece so that the 4 holes in each one of the sides, match with the second and third row of holes of the PG (See photo 1b). The side with two holes must be on the top.
  • Page 43 KPCOV52 TM640 x 2 51 x 101,5 x 1,5 cm KPCOV52 KPCOV66 KPCOV80 Place and install the crossbars in the trench. Before fitting the plates AP it is best to introduce the assembled beams in the ditch already prepared. Fill with soil, compact and level it. Check the level of the columns (correctly leveled) (N).
  • Page 44 KPCO41 4,46 m 4,46 m KPCOV52 5,86 m 4,46 m KPCOV66 7,26 m 4,46 m KPCOV80 8,66 m 4,46 m OPTION 4B: INSTALLATION OF THE SWIMMING POOL IN CONCRETE SLAB ³ - Prior to installing the pool, you need to create a reinforced concrete slab which is a minimum 150 Kg/m of 15 cm thick.
  • Page 45 Es el momento de comprobar las medidas. Si no coindicen, hay que realizar de nuevo este ejercicio. KPCO41 : Une fois que le sol ou le terrain sont complètement nivelés, il faudra procéder au marquage des lignes sur le sol où reposera la face intérieure des panneaux de la piscine.
  • Page 46 KPCOV52: Once the floor or the ground are properly leveled, the ground will be marked with lines where the inside face of the swimming pool panels will be placed. We start by marking the axis of the buried beam in the floor. We take as reference the center of the column and with a tape measure we draw a line to the other column.
  • Page 47 Si comincia col marcare sulla soletta l’asse dei traversini interrati. We start by marking the axis of the buried beams on the floor. (Pagina 39). (Page 39). Empezamos marcando en la solera el eje de las vigas enterradas. We beginnen met het markeren van de as van de balken die in de vloer (Página 39).
  • Page 48 PLACEMENT OF THE PANELS -All pool panels are identical except the one that carries filtration. Place it in the center of one of the two longer areas of your swimming pool. -The inside face of the panels (smooth surface) must be above the polygon just marked in the previous section. -Use the vertical profiles to join the panels together.
  • Page 49 PLACEMENT OF PANELS IN THE STRAIGHT AREA (oval pools) - The union of the panels must stay in the center of the column. That way you can insert the profile ( photo 3 ). - In picture 4, it is possible to see how the panels are not centered in regards to the column. Avoiding this is very important in order not to encounter problems when filling with water.
  • Page 50 A = PLYCOMP90 B = PLYCOMP112SK C = PLYCOMP112 D = PLYCOM90112 E = PLYCOMP11290 PLACEMENT OF THE TOP RAILS Now is the time to remove the outer protection of the vertical aluminum profiles Octagonal Pool: All the top rails are the same shape, except for one, which has a flat surface (photo 7). This coppings must be placed above the filtration. The piece can be found in the PLYCOMP112SK box.
  • Page 51 3- Houd er rekening mee dat elke referência diz respeito a uma única riferimento è inerente a un singolo referentie verwijst naar één en- peça, ou unidade. pezzo, un’unità. kel onderdeel, één eenheid. KPCOV80 KPCO41 HPCOV52 KPCOV52 KPCOV66(L) KPCOV60(L) KPCOV80 PLYCOMP112P PLYCOMP112P...

  • Page 52: Installation Du Skimmer

    PLACEMENT OF THE SKIMMER - Completely assemble the skimmer and screw it from the inside of the pool. - If you find it difficult to screw it to the wall, you can use a 2 mm drill bit and make a guide for the screw. This will make the work easier. - With the glue, place the seal facing inward.
  • Page 53 PROTECTIVE GROUND BLANKET - It is recommended the duck tape be used to cover the rivets of the vertical profiles, which will be in contact with the swimming pool liner. This prevents the liner from being pricked. (Photo 11). - Before covering the ground, it is advisable to sweep and vacuum the concrete floor to remove dirt, such as pebbles, branches, leaves, etc. - Place the cover to protect the sleeve.
  • Page 54 PLACEMENT OF THE SLEEVE ( LINER ) - If your pool includes the LED light, check the assembly manual before installing the liner. - Remove the sleeve from the box with great care. Stretch and extend it in the shade so that it recovers its shape. Perform this step at least two hours before its placement. The ideal temperature for mounting the sleeve is 20 - 25ºC.
  • Page 55 - Maybe the liner does not perfectly adjust to the corners of your pool. This is not a structural problem, simply aesthetic. Do not be surprised. - When you start to sill the pool, remember to fill only up to 2-3 cm and remove all the wrinkles on the bottom from the interior, without any footwear. Also, you must adjust the corners at the bottom and sides of your pool.
  • Page 56 INSTALLATION OF THE COPPING’S TRIMS This piece covers the joints of the copping (there must be a space between the copping). It is aesthetic. Possible due to irregularities of the terrain the trim does not fit completely. If this happens, do not worry because it does not affect the structural system. In that case we suggest using double faced tape or Velcro.
  • Page 57 INSTALATION OF THE STRUCTURAL SYSTEM TRIM This step is only for oval pools. This is to cover the vertical pols (photo 18) to give the swimming pool a nicer aesthetic. This piece is for decoration only. Look for some brackets and screws (4 x 16 mm) that you will find in the bag KITENV. Screw the bracket as you prefer.
  • Page 58 FITTING THE RETURN VALVE (V): (IMPELLER NOZZLE: V) This valve is located at the bottom of the pool wall, and the water is returned to the pool through it after being treated in the treatment unit. Start pouring water into the pool through a garden hose, and stop 4 cm below the bottom of the valve hole.
  • Page 59 Insert the nozzle from the inside of the pool through the cut already made with a friction ring (F) and a gasket (J) once the are placed. This way, the gasket (J) is in contact with the liner. Cut the piece of the liner thatis visible from the outside (Picture 22). The other gasket (J) is put into place from the outside, place it at the very back in contact with the liner (Photo 23).
  • Page 60 Insert the return hose (M) which goes from the outlet of the treatment unit to the return valve (V), and secure it with the clamp (A) (photo 27).When the filtering is working, the safety cover must be installed as seen in photo 28. Use the screws included in the kit. Tip: You can use a 2 mm drill bit to make a guide on the panel, this way it is easier to screw it.
  • Page 61 ATTACHING THE SKIMMER BODY (S) TO THE OUTSIDE OF THE POOL: Fill the pool with water until it reaches 4 cm from the bottom of the die of the skimmer. Affix the seal ring and position the skimmer frame. Screw it with a screwdriver. Using a Stanley knife, cut the bit of the liner (L) that the skimmer frame covers (only the inside bit).
  • Page 62 PLACEMENT OF THE INTERNAL LADDER - Take out the ladder and follow the installation instructions. Think about where you want to have the entry for your swimming pool. You can also mount it and put it into pool without attaching the fastenings to see how it looks. Just support it on the shore. - Look for two metal plates.

  • Page 63: Installation De L'échelle Extérieure

    2 cm 1 cm PLACEMENT OF THE EXTERNAL LADDER - Remove the ladder from the box with great care. Look for 8 screws (3.5 x 25 mm) and two hooks in the box: KITENV... - Place the ladder against the pool wall (photo 37) and make a mark as shown (Photo 38). Measure 2 cm from the ladder and 1 cm from the marks of the panel. (photo 39).
  • Page 64 NOTE 1: Your pool consists of 10 standard panels, 1 filtration panel and one led panel. We recommend one of these 4 options at the time of placing the led panel. This way, the light will spread throughout the pool evenly. Su piscina se compone de 10 paneles estandar, 1 panel para la filtración y 1 panel para el Led.
  • Page 65 NOTE 2: INSTALLATION OF THE LED PROJECTOR STRUCTURAL SYSTEM It is about covering the led proyector and the cable as we did for covering the structurtal system. Locate the piece and put it as shown in picture A. The structural system is composed of 4 brakets and its respective screws. ATTENTION! It is very important to place the brakets IN THE STRIPPED AREA of the panel as shown in picture B.
  • Page 66 FILTER FILTRACIÓN FILTRATION FILTRATION FILTRAZIONE FILTERING FILTRAÇÃO ASSEMBLY SUGGESTIONS: • The filter should be located at least 3.50 m from the pool. The following diagrams explain the movement direction of the water. Check the manual that comes with the filter group for the assembly instruc- tions.
  • Page 67 All the threaded connections should be assembled with the watertight Teflon tape , except the connection with O rings. The Teflon should be wound round the thread in a counter clockwise direction. LAND-FILLING: Finish filling the pool The water level should be situated between the upper third part and the second half of the skimmer mouth. Todas las conexiones roscadas deben montarse con la cinta estanca de Teflón , excepto las conexiones con junta tórica.
  • Page 68 SAND FILTER FILTRO DE ARENA This is the oldest of filtering systems. The filtered water passes through the sand (calibrated FILTRE À SABLE silicon) that retains all impurities. This type of filter is equipped with a multi-directional flap that allows easy manipulations and cleaning. SANDFILTER DIFFERENT POSITIONS OF THE MULTI-DIRECTIONAL FLAP (4 OR 6)*: When you perform changes the position of the multi-directional flap that pump should always be stopped, without...
  • Page 69 2. WASHING POSITION (OR BACKWASH): Sand washing position. Allow the water to circulate in reverse direction in the filter. The water enters through the lower part of the filter elevates the filtering mass and therefore collects all its impurities and because they are lighter than sand, they area evacuated through the upper part of the filter towards the drain.
  • Page 70 4. EMPTYING POSITION / DRAIN (OR WASTE): Position to evacuate the water of for emptying the pool. In this case, the water does not pass through the filter, it goes directly to the drain. 4. POSICIÓN VACIADO / DESAGÜE (O WASTE): Posición para evacuar el agua o para vaciar el vaso. En este caso, el agua no pasa por el filtro, sale directamente por el desagüe.
  • Page 71 6. RECIRCULATION POSITION / CIRCULATION**: Position used so the water circulates through the hydraulic network without passing through the filter. This possibility is used to move the water if you want to add a product to the pool or if you should perform any operation in the filter, because in this case the filter is isolated and the water coming from the pump is directly expelled.
  • Page 72 MAINTENANCE AND USE MANTENIMIENTO Y USO ENTRETIENT ET UTILISATION WARTUNG UND GEBRAUCH MANUTENZIONE E USO ONDERHOUD EN GEBRAUCH MANUTENÇÃO E UTILIZAÇÃO...
  • Page 73 WATER RESPECT THE ENVIRONMENT DO NOT TAKE APART THE POOL UNLESS IT IS STRICTLY NECESSARY. IF YOU DO SO, PLEASE REUSE THE WATER. WATER IS A SCARCE GOOD. When your pool reaches the end of its useful life, it should be disassembled; the different materials (plastic and steel) should be separated and taken to the disposal point indicated by local authorities.
  • Page 74 AGUA RESPETA EL MEDIO AMBIENTE "NO DESMONTE LA PISCINA SI NO ES ESTRICTAMENTE NECESARIO. EN CASO DE HACERLO, LE ROGAMOS REUTILICE EL AGUA. EL AGUA ES UN BIEN ESCASO". Cuando su piscina alcance el final de su vida útil, debe ser desmontada, segregar los distintos materiales (plástico y acero) y llevarlos al punto limpio especificado por las autoridaes locales. MANTENIMIENTO Y USO: - Durante la temporada de uso de un kit de piscina ponga a funcionar el sistema de filtración una vez al día para asegurar un renovamiento completo del volumen de agua y siempre cuando no se esté...

  • Page 75: Recommandation Pour L Environnement

    RECOMMANDATION POUR L ENVIRONNEMENT : «NE DГMONTEZ PAS LA PISCINE SI CELA N EST PAS ABSOLUMENT NГCESSAIRE. EN CAS DE DГMON TAGE, NOUS VOUS PRIONS DE RГUTILISER L EAU. IL N Y A PAS D EAU EN TROP». Lorsque votre piscine atteint la fin de sa vie utile, elle doit être démontée, puis il faudra séparer les différents matériaux (plastique et acier) et les déposer dans la déchetterie spécifiée par les autorités locales.
  • Page 76 WASSER UMWELTSCHUTZUNG DEMONTIEREN SIE NICHT DAS SCHWIMMBECKEN, WENN DAS NICHT UNBEDINGT NЕTIG IST. IM FALLE SIE DAS MACHEN, VERWENDEN SIE BITTE DAS WASSER. DAS WASSER IST EIN KNAUSERIGES GUTE. Wenn Ihr Pool das Ende seiner Nutzungsdauer erreicht hat, muss er auseinandergebaut werden. Die verschiedenen Materialien (Plastik und Stahl) müssen getrennt und zur Sammelstelle gebracht werden, die von den örtlichen Behörden bestimmt wird.
  • Page 77 ACQUA PRECAUZIONE PER L'ECOSISTEMA AMBIENTALE NON SMONTARE LA PISCINA SE NON E' STRETTAMENTE NECESSARIO.NEL CASO LO FOSSE VI PREGHIAMO DI RIUTILIZZARE L'ACQUA. L'ACQUA NON VA SPRECATA. Quando la piscina giunge al termine della sua vita utile, deve essere smontata, i vari materiali (plastica e acciaio) devono essere separati e trasportati presso il centro di raccolta indicato dalle autorità...
  • Page 78 ACQUA O MEIO AMBIENTE AGRADECE “DESMONTAR A PISCINA SE ABSOLUTAMENTE NECESS RIO. NESTE CASO, POR FAVOR REUTILIZE A GUA. A GU A Г VIDA.” Quando a piscina atingir o final da sua vida útil, deverá ser desmontada e os distintos materiais (plástico e aço) segregados e transportados para o Ecoponto especificado pelas autoridades locais.
  • Page 81 MADE BY - FABRICADO POR - FABRIQUÉ PAR - HERGESTELLT DURCH PRODOTTO DA - GEPRODUCEERD DOOR - FABRICADO POR: MANUFACTURAS GRE, S.A. ARITZ BIDEA Nº 57 BELAKO INDUSTRIALDEA, APARTADO 69 - 48100 MUNGUIA (VIZCAYA) ESPAÑA Nº Reg. Ind. 48-06762 Made in Spain - Fabricado en España - Fabriqué en Espagne - Hergestellt in Spanien...
