Electrical Wiring - Stagnoli ACNSEM3L Mode D'emploi

Electrical wirings are to be made in absence of a power supply, and with the battery charger disconnected,
Board power supply
24Vac/dc
Traffic lights power sup-
ply 230Vac - 24Vac/dc
Board power supply
230Vac
N L
Traffic lights power supply
230 Vac - 24Vac/dc

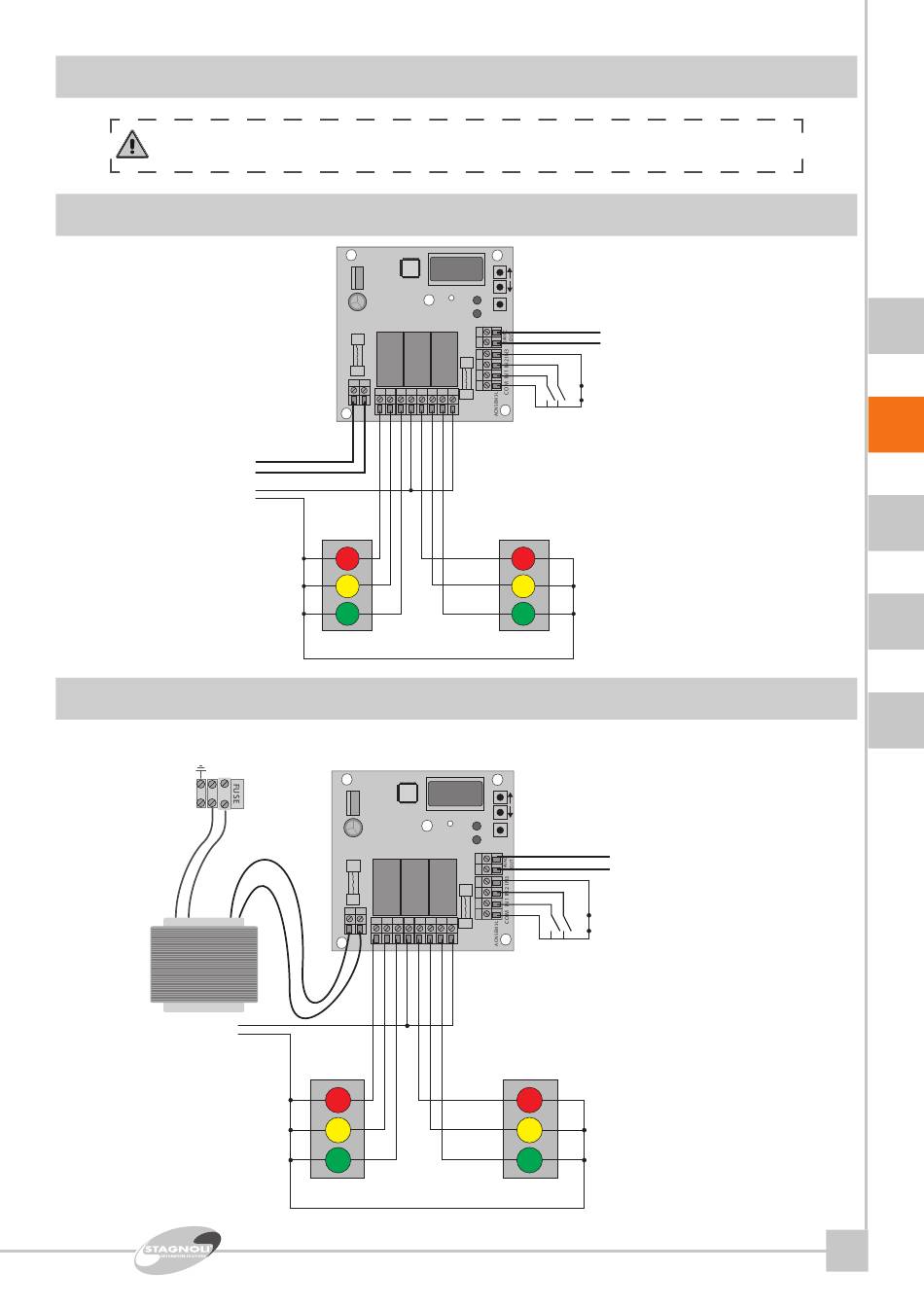

ELECTRICAL WIRING

Attention!
if present.
24V VERSION KIT
0000
E
24VAC
IN
R2 A2 V2 R1 A1 V1
COM2 COM1
230V VERSION KIT
0000
E
24VAC
IN
R2 A2 V2 R1 A1 V1
COM2 COM1
Accessories auxiliary power supply
24Vac/dc 0,5A max
Accessories auxiliary power supply
24Vac/dc 0,5A max
IT
EN
FR
ES
DE
9
