Commissioning - Endress+Hauser Rns221 Mode D'emploi

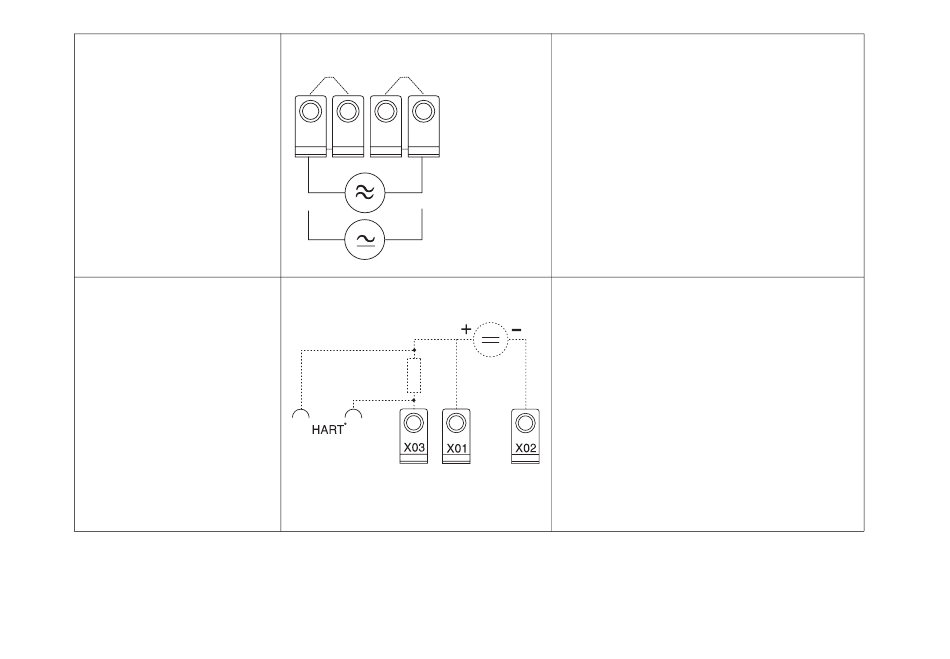

Connecting main
power
Connecting
outputs 1 and 2
16
L/L+ N/L-
20..250 VDC/VAC
50/60 Hz

5 Commissioning

Once the unit has been installed and correctly connected it is operational. The
LEDs indicate the operation condition (see chap. 2).
#
When operating using a power source
between 90...250 VAC, an isolator
must be fitted within easy reach of the
unit. Also an overvoltage protection
unit (ie. fuse with a current of ≤ 10 A)
must also be fitted.
!
Please take the volt drop into considera-
tion when including the communica-
tion resistor in the connection circuit!
®
The HART programming units for set-
ting up the sensors can now be directly
connected to the communication sok-
kets fitted to the unit's front panel.
There is no need for any further wiring.
