5.
Test fit top and bottom rails. Once proper
fit is ensured, press bottom bracket covers
onto the ends of the bottom rail (Fig. 5)
and set it in place and set in place on
bottom brackets. Pivot support foot in
place under center of rail as shown (Fig.
6). Secure support foot to the mounting
surface using the 11/2" screw provided and
press fit cover into place using plastic plug
as shown (Fig. 7).
6.
Cut Decorative Screen Panel. The height
of the 3' x 6' panel needs to be 32". Make
only one cut on the panel for the height.
The uncut edge is needed to insert into
the bottom rail. The width needs to be cut
to the size of the opening between posts
minus 41/2" (Fig. 8). We recommend cutting
an equal amount off of both sides of the
Decorative Screen Panel to maintain the
symmetry of the design.
7.
Tap vertical aluminum uprights onto the
Decorative Screen Panel with a with a rubber
mallet. Take note that the notches on these
pieces are directional. The smaller notch
goes into the bottom rail and the larger notch
goes into the top rail (Fig. 9).
A.
B.
LENGTH "X"
Decorative Screen Panel
Width = X – 41/2"
UPPER NOTCH
Upper Notch:
1/2"
1/2"
Lower Notch:
¼"
LOWER NOTCH
1/4"

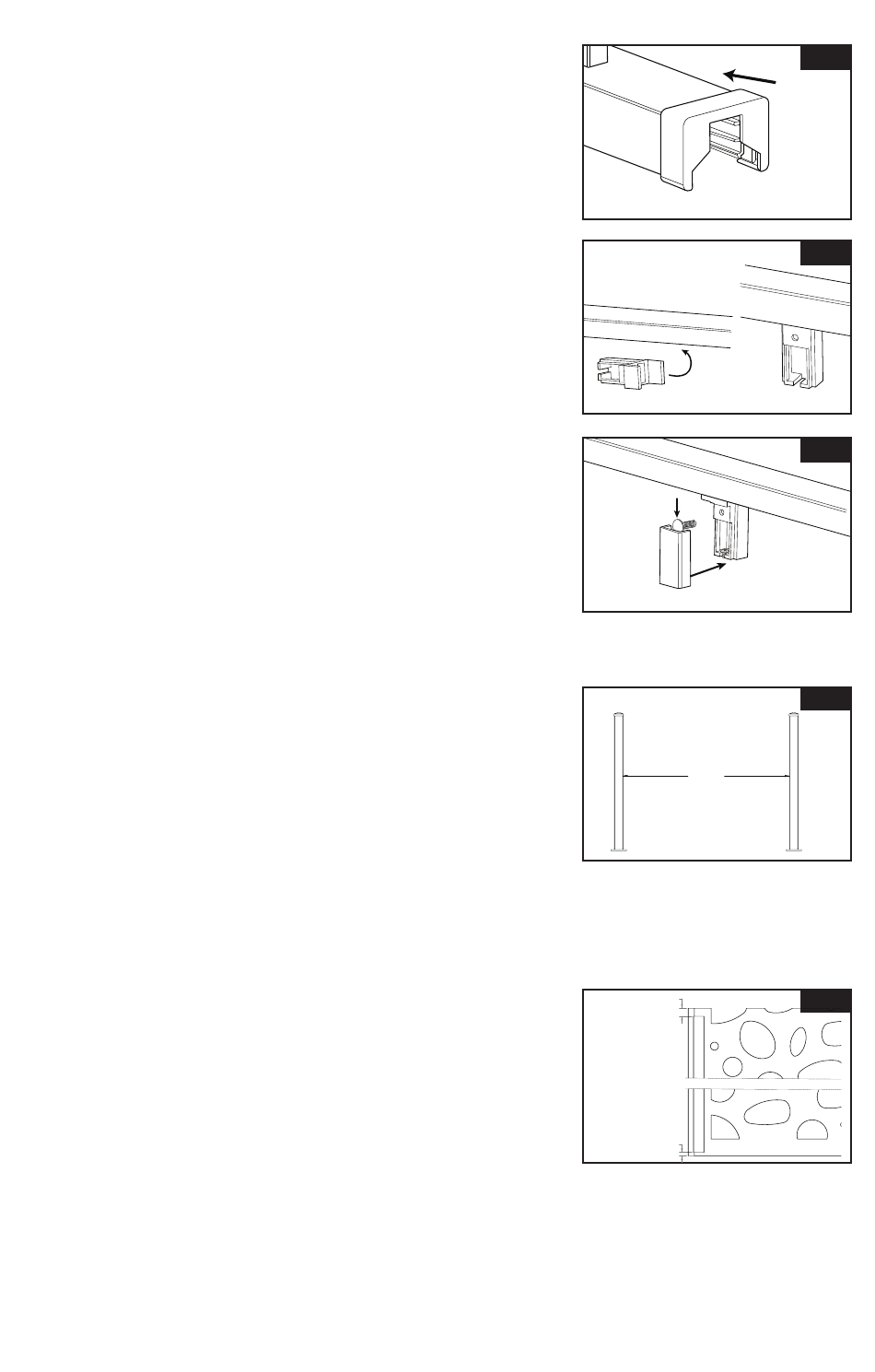

Fig. 5
Fig. 6
Fig. 7
Fig. 8
Fig. 9
