3 Using the Source/Load Functions
A CD Arb can run along with other Arbs on other outputs. If multiple outputs run a CD Arb, all CD Arbs
must have the same dwell time. All CD Arbs must also have the same length and repeat count.
Because the CD Arbs can have such a large number of points, you cannot define individual values from
the front panel. Instead, the data must be imported from a file. See

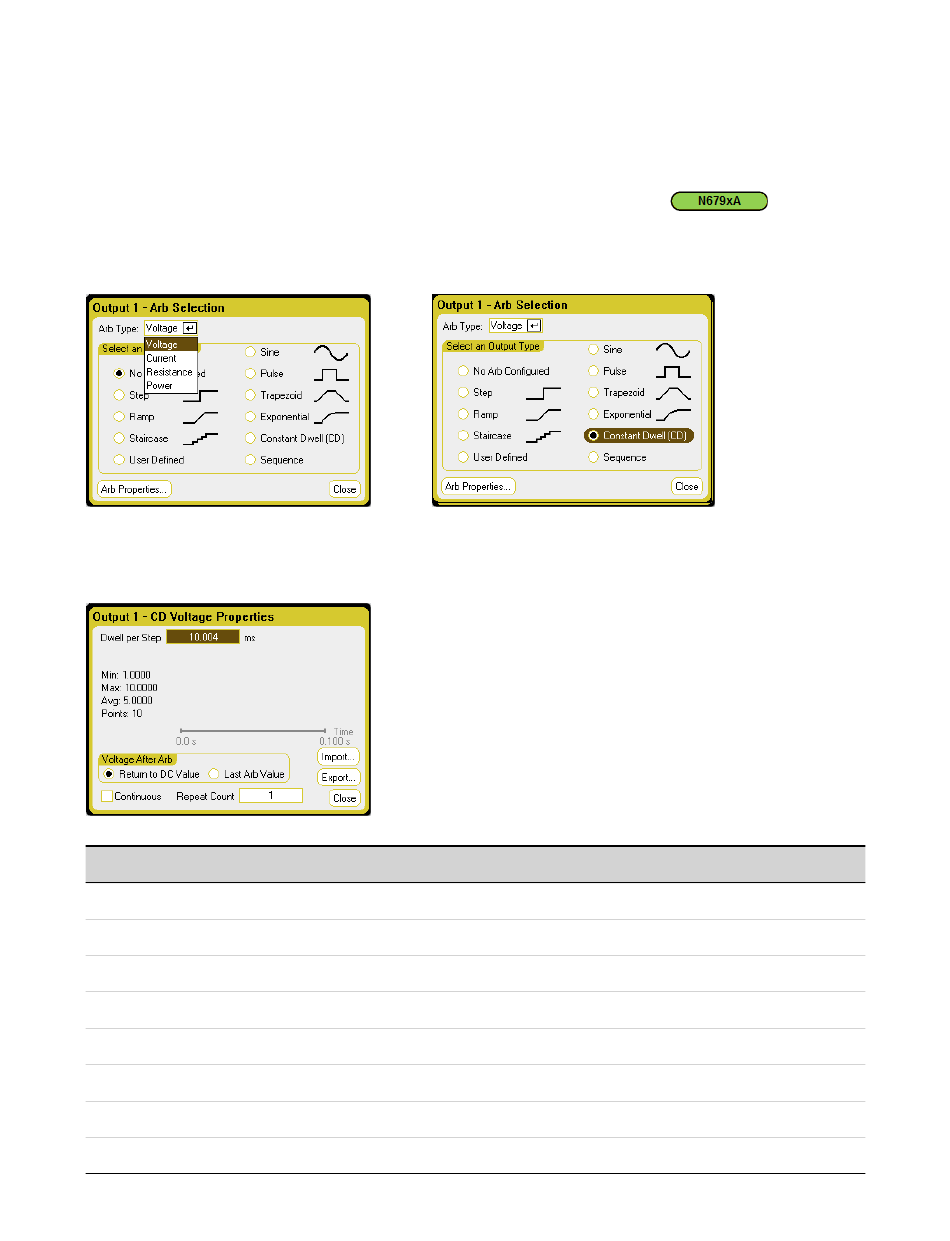

Step 1. Select the Arb Type and Shape. Power and resistance types apply to
Press the Arb key twice or press the Arb key and then Properties to access the Arb Selection window.
In the Arb Type dropdown, select the Arb type. Then select Constant-Dwell.
Step 2. Configure the Constant-Dwell Properties:
Press the Properties key or select the Arb Properties button. Then program the following parameters:
Parameter
Dwell per Step
Min
Max
Avg
Points
Time
Import (.csv format)
Export (.csv format)
114
Description
The dwell time for each step in seconds. Values range from 10.24 μs to 0.30 s.
The minimum value of the imported Arb.
The maximum value of the imported Arb.
The average value of the imported Arb.
The number of points in the imported Arb.
The total time of the imported Arb.
Imports a current or voltage CD Arb list (see below).
Exports a current or voltage CD Arb list. (see below).
Importing and Exporting Arb
:
Keysight N6705C User's Guide
Data.
