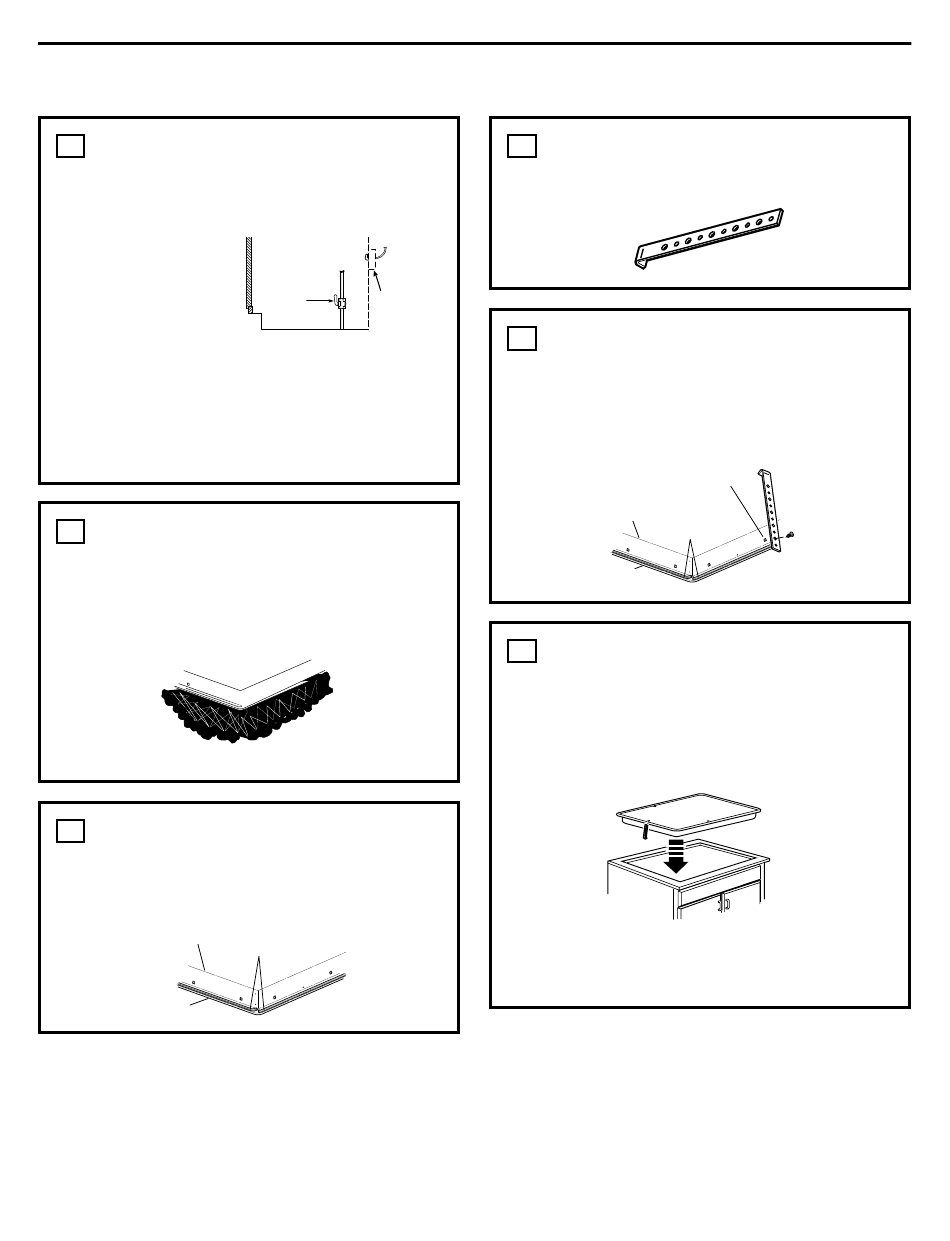

INSTALLING THE COOKTOP UNIT
LOCATE ELECTRICAL OUTLET
1
AND GAS SHUT-OFF VALVE
BENEATH CABINET
NEVER REUSE
OLD CONNECTORS
WHEN INSTALLING
THIS UNIT.
Install a manual shut-off valve in the gas line
in an easily accessible location outside the
cooktop. Be sure you know how and where to
shut off the gas supply to the cooktop. Install
the electrical outlet 12" below the countertop.
2 PROTECT SURFACE OF
COOKTOP
Place a towel or tablecloth onto the
countertop. Lay the cooktop upside down
onto the protected surface.
Bottom of cooktop
Cloth under Cooktop
ATTACH FOAM TAPE
3
(glass maintop models only)
Apply the foam tape around the outer edge
of the glass. Do not overlap the foam tapes.
Bottom of Cooktop
Cooktop Glass
Installation Instructions
Shut-Off
Electrical
Valve
Outlet 12"
Below
Countertop
Foam Tapes
LOCATE MOUNTING PARTS
4
Remove the hold down brackets from the
literature package.
5 ATTACH BRACKETS TO
COOKTOP
Remove the screw from the bottom of the
cooktop and screw the hold-down bracket
to the side of the cooktop unit. Repeat for
opposite side of cooktop.
Bottom of
Cooktop
Cooktop
Glass
INSERT COOKTOP INTO
6
CUTOUT
Insert the cooktop centered into the cutout
opening. Make sure the front edge of the
countertop is parallel to the cooktop. Make
final check that all required clearances are met.
Once the unit is in place, screw the hold-
down bracket into the cabinet sides to secure
the unit into place.
5
Pre-drilled
hole
Foam Tapes
Cooktop
