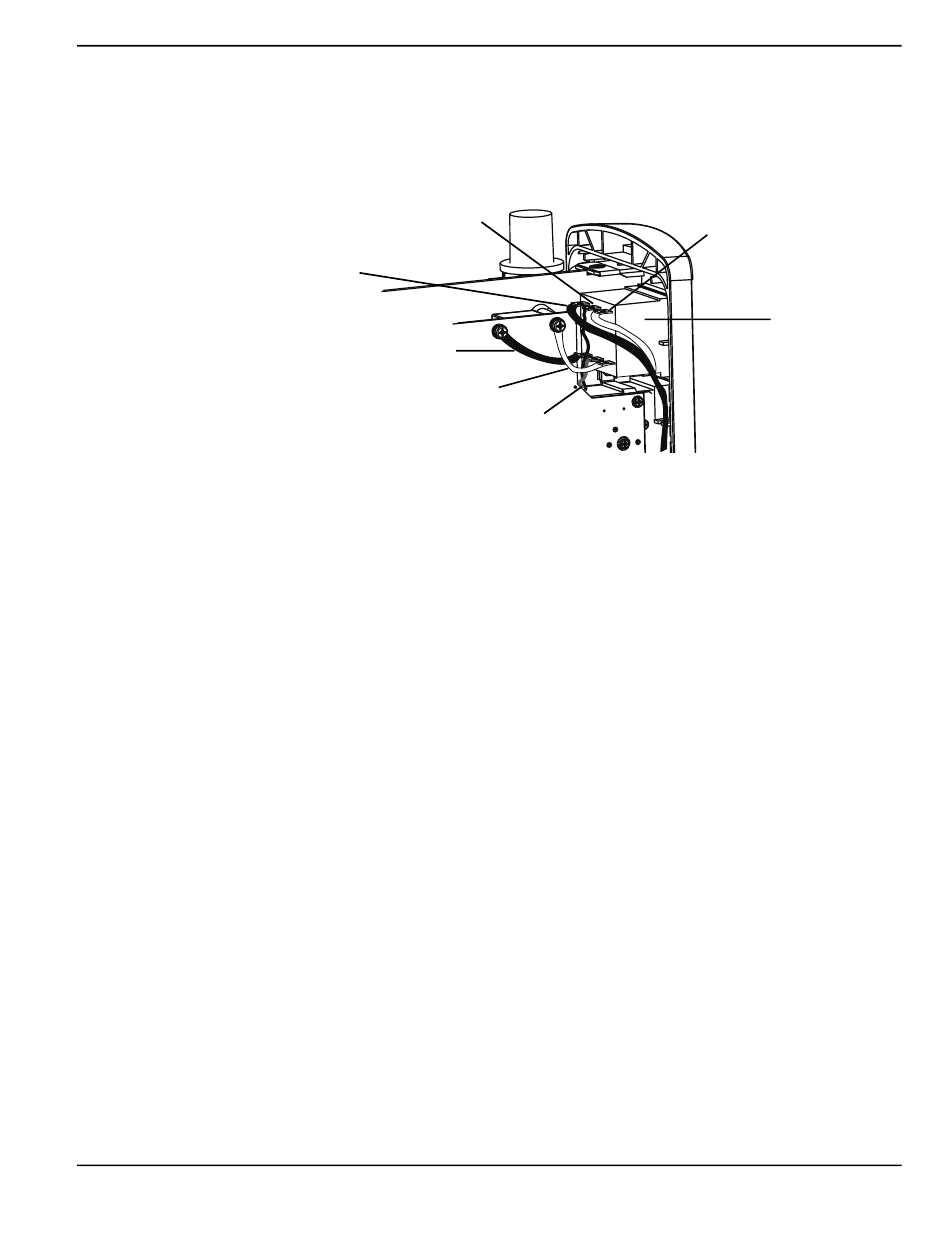

11. Install the new power switch in the reverse order of removal, making sure all wires are installed as shown below.
Tighten the screws that were supplied with the kit (075721) to 8.1 kg cm (7 inch-pounds). Be sure the "I" on the
switch is up and the "O" is down.
Tighten the wire-mounting screws to 23.0 kg cm (20 in-lb).
Black wire (CSA)
Brown wire (CE)
Powermax45 Field Service Bulletin 805880 Revision 3
All manuals and user guides at all-guides.com
Powermax45 Power Switch Replacement Kit
Quick disconnect
(black wire)
L
Black
White
Quick disconnect
(red wire)
N
White wire (CSA)
Blue wire (CE)
Power switch
3
