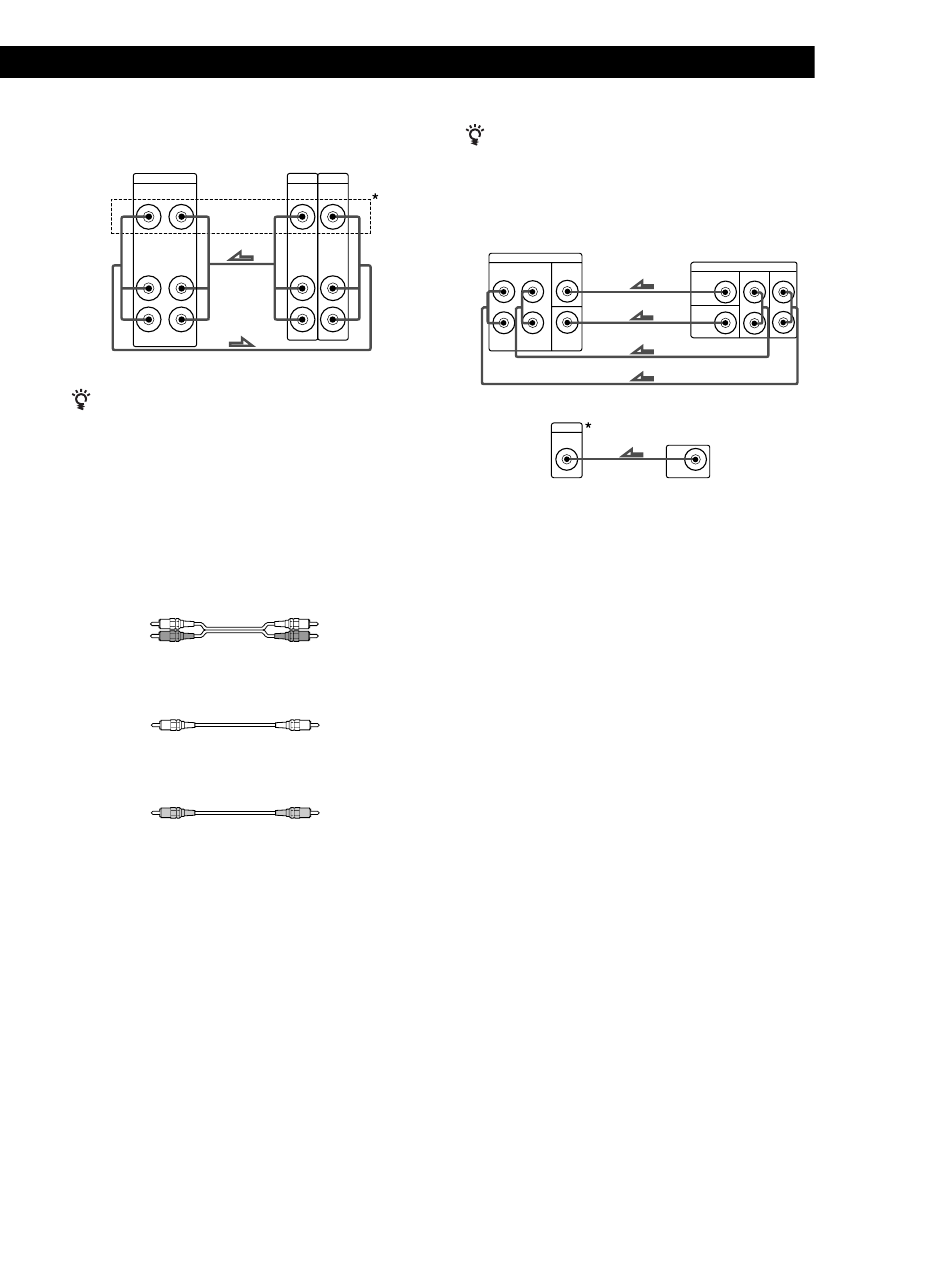

Sony STR-DE345 Mode D'emploi page 7

VCR
Receiver
VIDEO
VIDEO OUT VIDEO IN
AUDIO OUT AUDIO IN
L
R
*STR-DE345 only
Use the function buttons (TV/SAT, CD, MD/TAPE etc.)
to select the VIDEO AUDIO OUT signal. You can record
this audio signal by connecting a recording component
such as a cassette deck (to the VIDEO AUDIO OUT
jack).
DVD player/Dolby Digital decoder
What cords will I need?
• Audio cords (not supplied) (1 for each 5.1 CH/DVD
FRONT and REAR jacks)
White (L)
Red (R)
• Monaural audio cord (not supplied) (1 for each 5.1
CH/DVD CENTER and SUB WOOFER jacks)
Black
• Video cord (not supplied) (1 for the 5.1 CH VIDEO
IN jack) (STR-DE345 only)
Yellow
VCR
OUTPUT INPUT
VIDEO VIDEO
AUDIO AUDIO
L
R
Where do I go next?
Go on to the next section to connect the speakers.
White (L)
Red (R)
Black
Yellow
Getting Started
You can play decoded Dolby Digital soundtracks through the
speakers connected to the receiver.
If you have a Dolby Digital decoder you can amplify a
decoded Dolby Digital soundtrack with the following
connections.
Receiver
5.1 CH/DVD
FRONT REAR CENTER
L
R
SUB
WOOFER
Receiver
Dolby Digital
5.1 CH
decoder, etc.
VIDEO IN
*STR-DE345 only
Dolby Digital
decoder, etc.
PRE OUT
CENTER REAR FRONT
WOOFER
VIDEO
7 GB
