Operating Instructions
MaxLite HL Linear High Bay Generation 3
®
Installation & Operation
E: Integrated Emergency Battery Back-up Installation

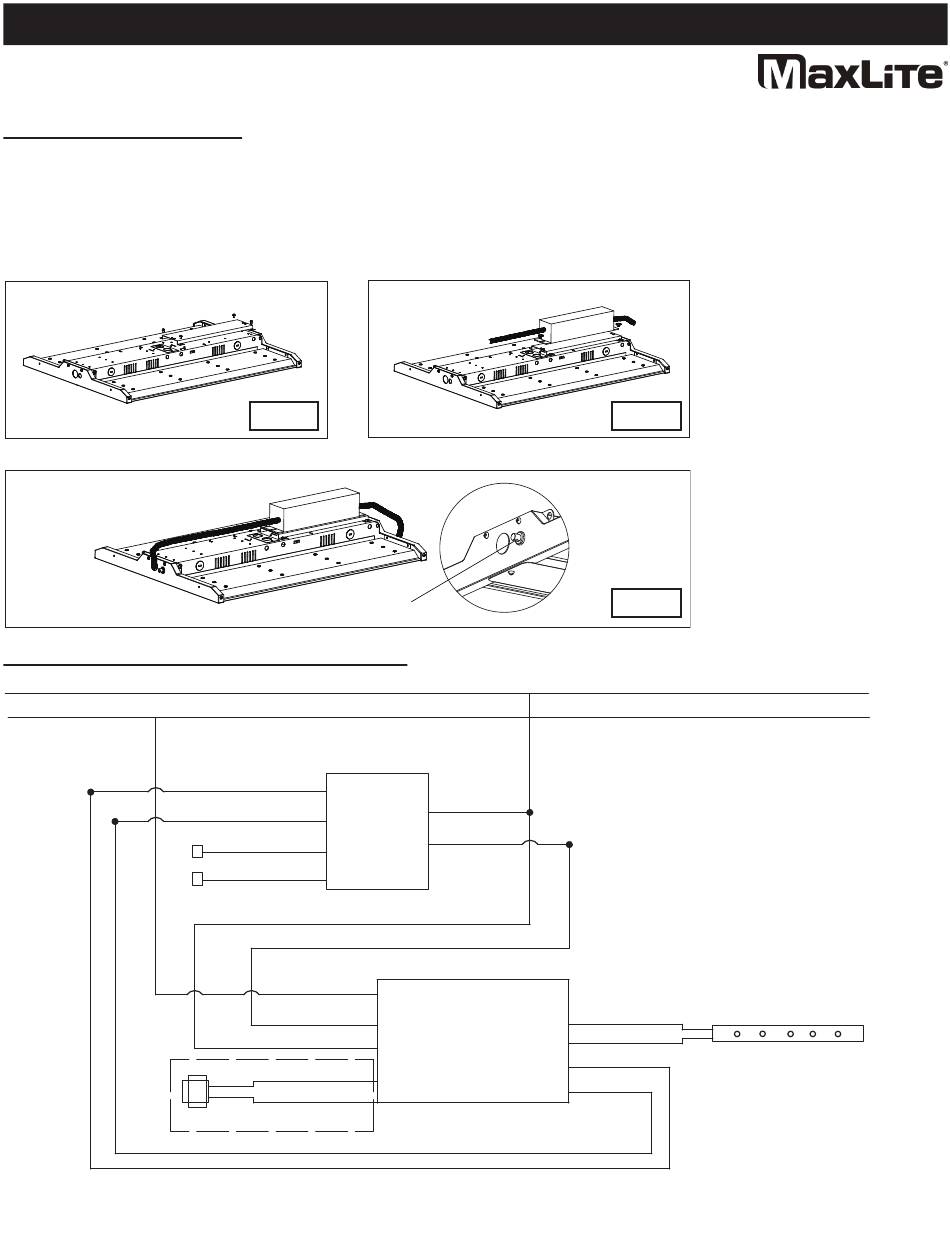

1. Install the mounting plate to the fixture by using the 4 screws. (Figure E-1)
2. Mount the emergency LED driver unit on the mounting bracket using additional screws. (Figure E-2)
3. Make the electrical connections as shown. (Figure E-3). Use the Emergency Battery Unit Wiring Diagram.
Emergency Battery Unit Wiring Diagram
© Copyright 2022. MaxLite, Inc. All Rights Reserved.
12 York Ave, West Caldwell, NJ 07006 Tel: 800-555-5629 Fax: 973-244-7333 Email: info@maxlite.com
Fig. E-1
Red
Blue
LED DRIVER
Purple
Pink
Connector
White
Black/White
Black
Purple
Purple
Brown
Brown
TEST SWITCH
Test switch
Black
White
EMERGENCY
Fig. E-2
Fig. E-3
LED
Pink
+ _
White
Red
Black
HL3 Series
L
N
Page: 5
REV: 11/02/22
