Power supply cable &
accumulator unit
The QuikRead go instrument can be used either
by the power supply cable or the accumulator unit.
The accumulator unit is charged automatically
when the power cable is plugged in.
USB
RJ-45
Please consult
instructions for use
Power
On-Off switch

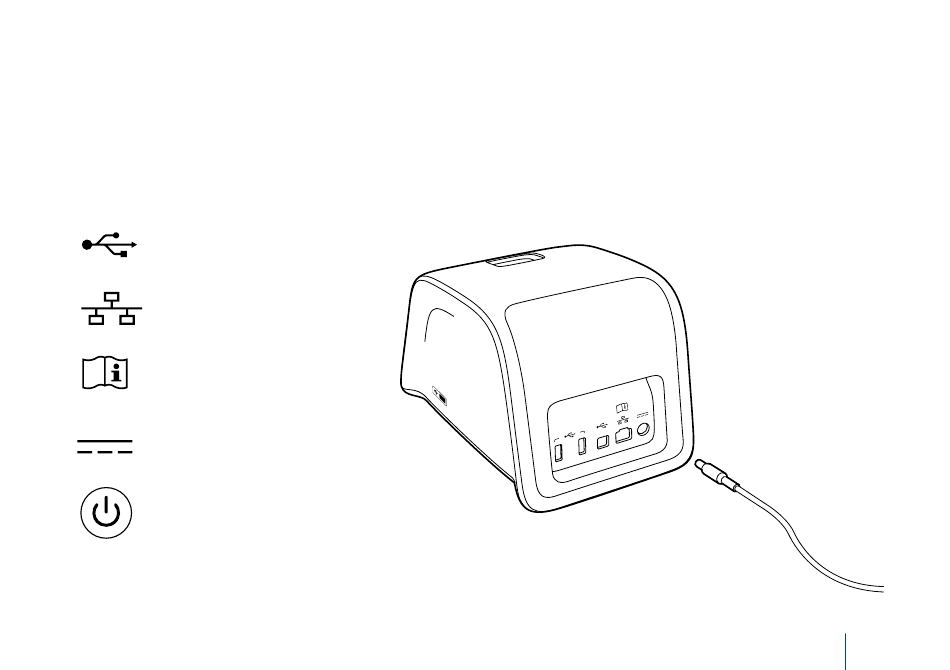

Picture 6
Symbols on QuikRead go

Connectors and cables

In the back of the instrument there are five con-
nectors with symbols describing their use.
One USB connector is placed on the right side
of the instrument. All symbols are described in
Picture 6.
The RJ-45 connector can be used for serial and
LAN connections. Wiring diagram of the cable is
described at www.quikread.com.
Picture 7
Connecting Power Supply Cable

Plugging the power supply cable

Plug the power supply cable into the back of the
instrument. Plug the power supply into a power
outlet.
GETTING STARTED
9
