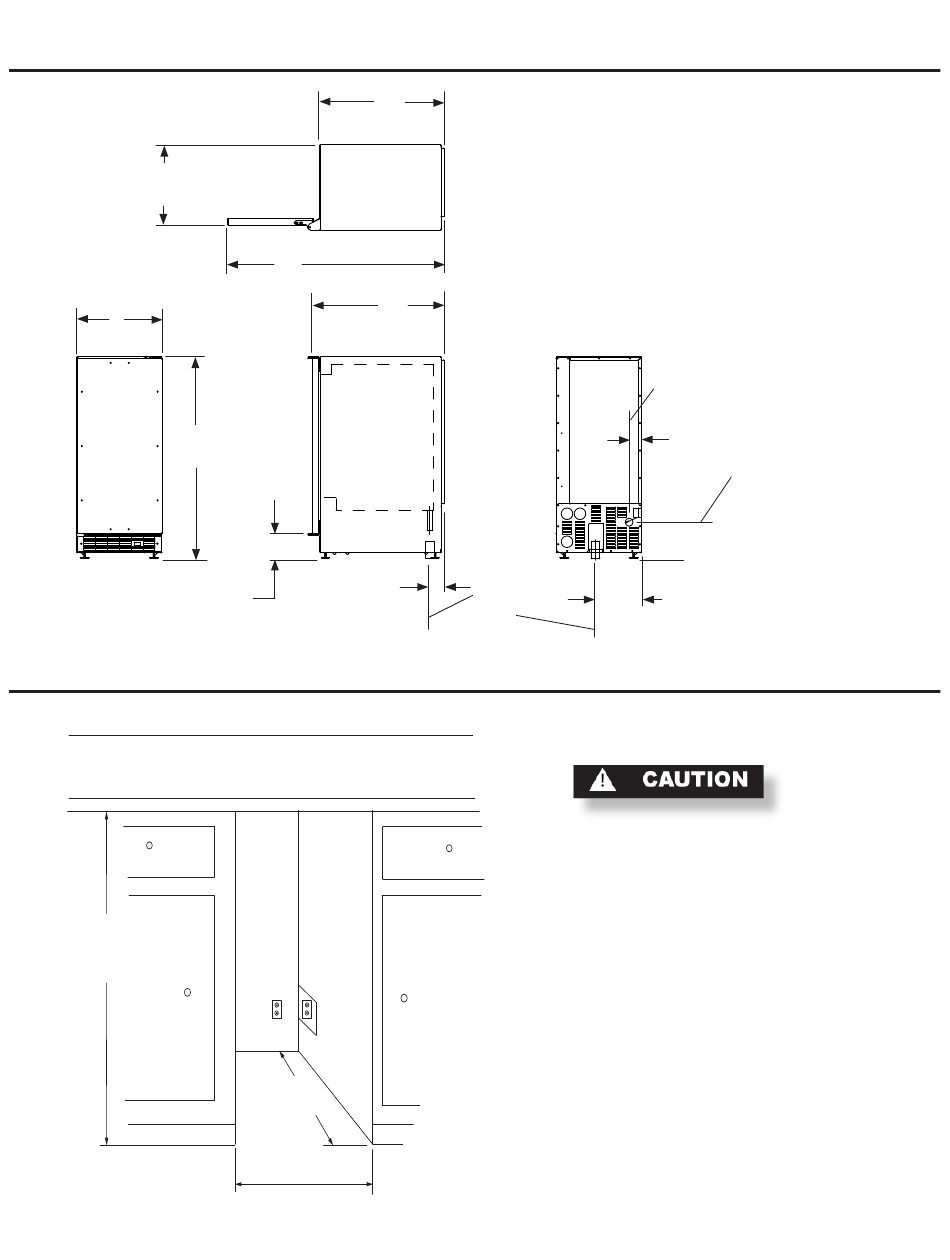

DIMENSIONS FOR 30IMAT SOLID OVERLAY DOOR

137/8"
(35.3cm)
147/8"
(37.8cm)
311/8" to 321/8"
(79.1 to 81.6cm)
3" to 4"
(7.6 to 8.8cm)
ROUGH IN OPENING DIMENSIONS, FOR 30IMAT SOLID OVERLAY DOOR
** 313/8" to 323/8"
(79.7 to 82.2cm)
211/2"
(54.6cm)
371/16"
(95.4cm)
227/8"*
(58.1cm)
2" (5.1cm)
*24" (61 cm)
standard cabinet
depth
15" (38.1 cm)
CL gravity
drain
Electrical Requirements: A grounded 115 volt, 15
amp dedicated circuit is required.
Power outlet can be located in the back wall behind
the ice machine. Add 1" to depth for thickness of
plug, or recess outlet 1" into the wall. Power outlet
can also be installed in adjacent cabinetry with a
cutout for routing of power cord. Follow all local
building codes when installing electrical and the ice
machine.
Product weight = 100 lbs. (45.5 kg.)
* Depth dimension may vary depending on
each individual installation.
** Minimum rough in opening required is to be
larger than the adjusted height of the cabinet.
13
CL water supply
2" (5.1cm)
CL water supply
6" (15.2cm)
* To face of door with-
out custom panel
8" (20.3cm)
