Connecting (Continued)

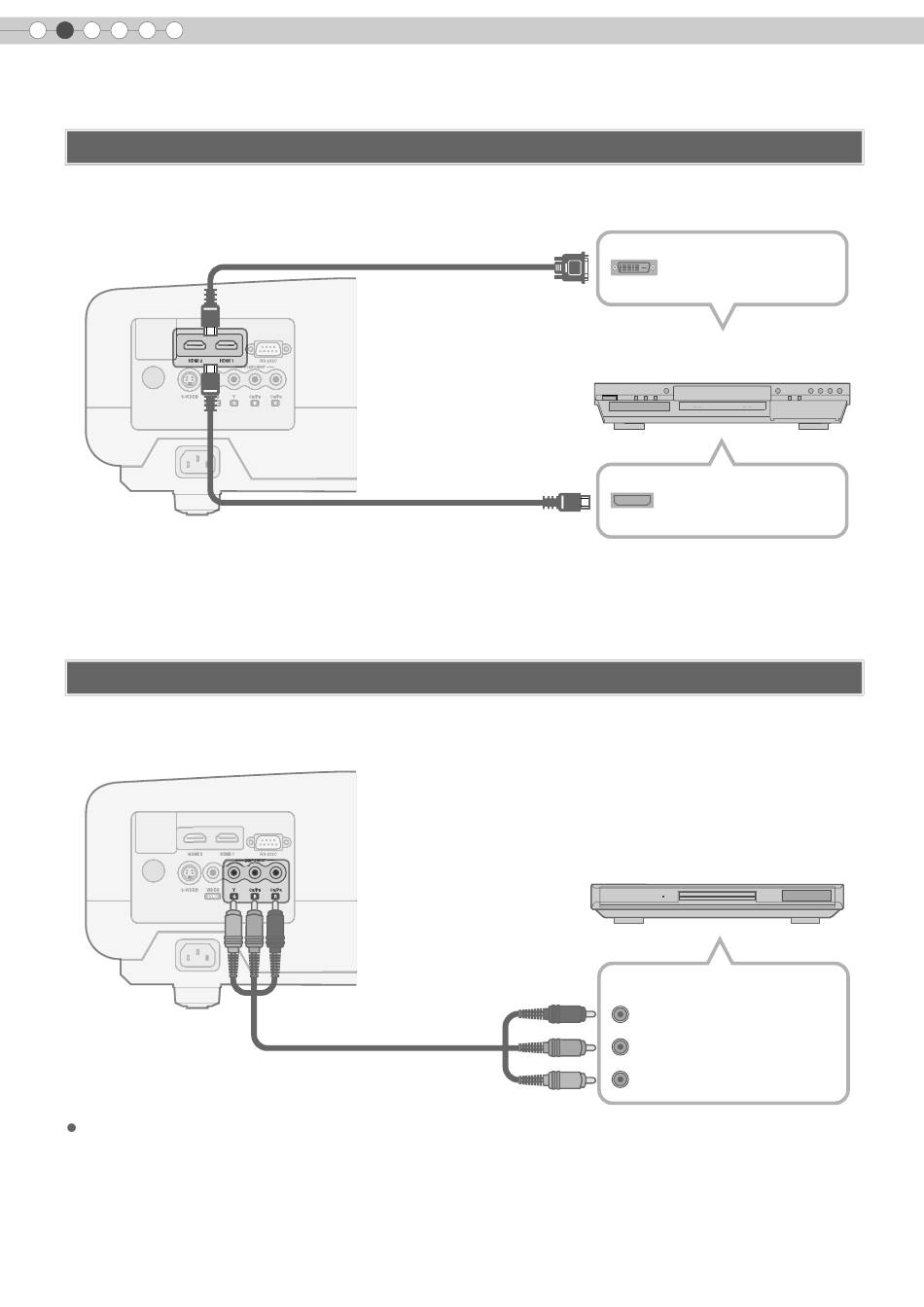

Connecting via HDMI Cable Or HDMI-DVI Conversion Cable

This unit
To HDMI 1 or HDMI 2 input terminal

Connecting via Component Video Cable

This unit
To component video input terminals
Set ACOMPB in the setting menu to AY Pb/Cb Pr/CrB. (pP27 - P)
16
Preparation
HDMI-DVI conversion cable (sold separately)
HDMI cable (sold separately)
Component video cable
(sold separately)
DVI output terminal
DVD recorder
HDMI output terminal
DVD player
Component video output terminals
C /P (Red)
R R
C /P (Blue)
B B
Y (Green)
