Dennard 2060

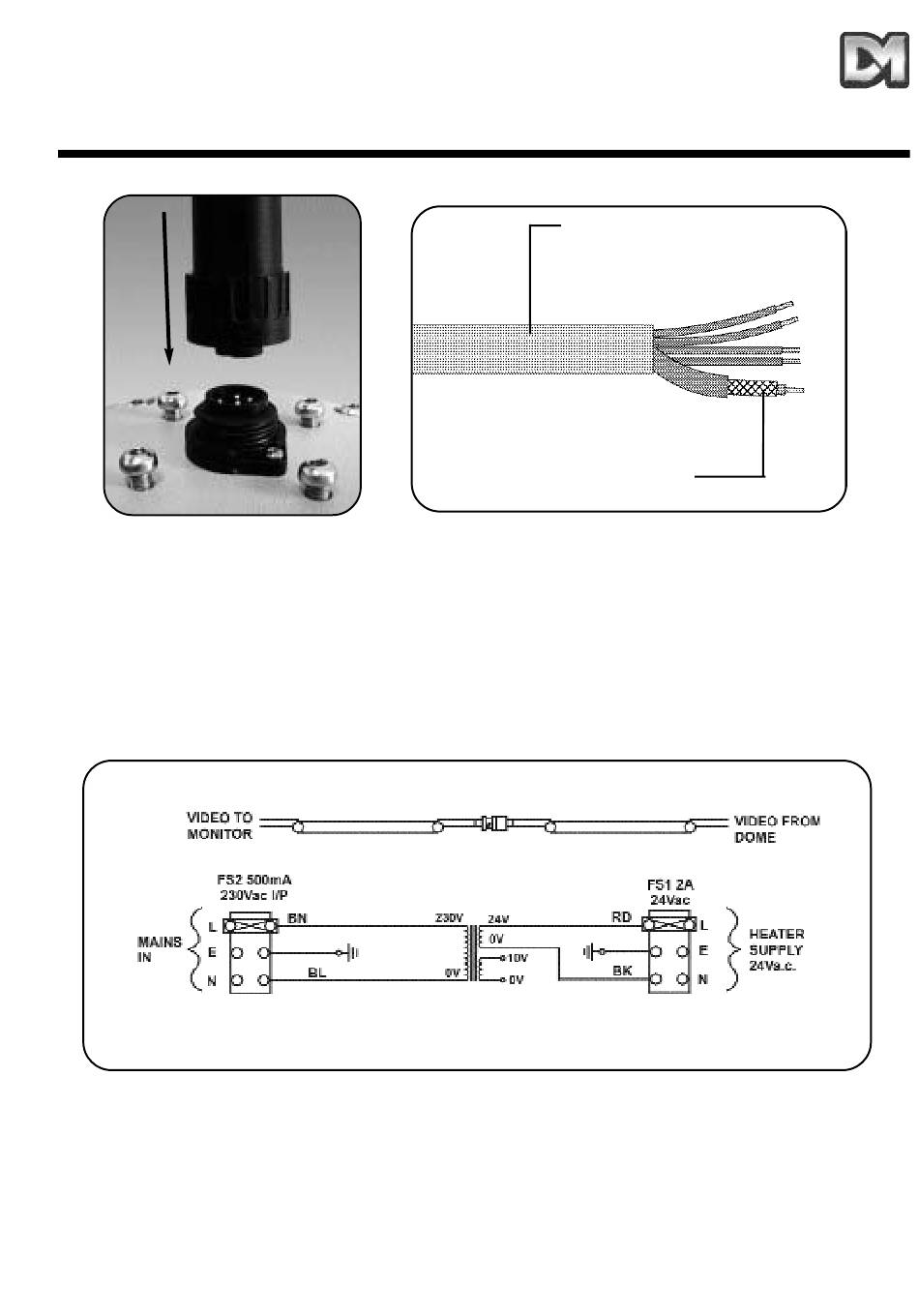

Electrical connections
The Dennard 2060 Fixed Attitude Camera Dome is supplied complete with an IP66 'Amphenol' 7
way connector and 3 metre multicore with Co-ax flying lead assembly. The Amphenol connector
mates as shown in fig.16 to the top of the dome. The table below details the flying lead functions.
Red.... ..... 24 V AC live
Blue .........24 V AC neutral
P.S.U. Connection diagram
Dennard 2060 Operation Manual
(
Fixed Attitude Connections)
Yellow ..... not used
Green ...... not used
Multicore cable with
integral Co-ax (Video)
Co-ax. (Video)
Co-ax Screen ..... BNC screen
Co-ax Signal ..... BNC centre pin
Addendum 2
