Safety and operating instructions

Overview

To reduce the risk of serious injury or death
to yourself or others, read the Safety
instructions section found on the previous
pages of this manual before operating the
machine.

Design and function

The CP FL 0022 VR/CP FL 0022 SVR is a machine with
a vibration damping D-handle. CP FL 0022 VR is
designed for soft tunnelling. CP FL 0022 SVR is
designer for soft tunneling, light demolition and
construction work. The machines can be used both
horizontally and vertically. No other use is permitted.
To choose the correct insertion tool, see the spare
parts list.

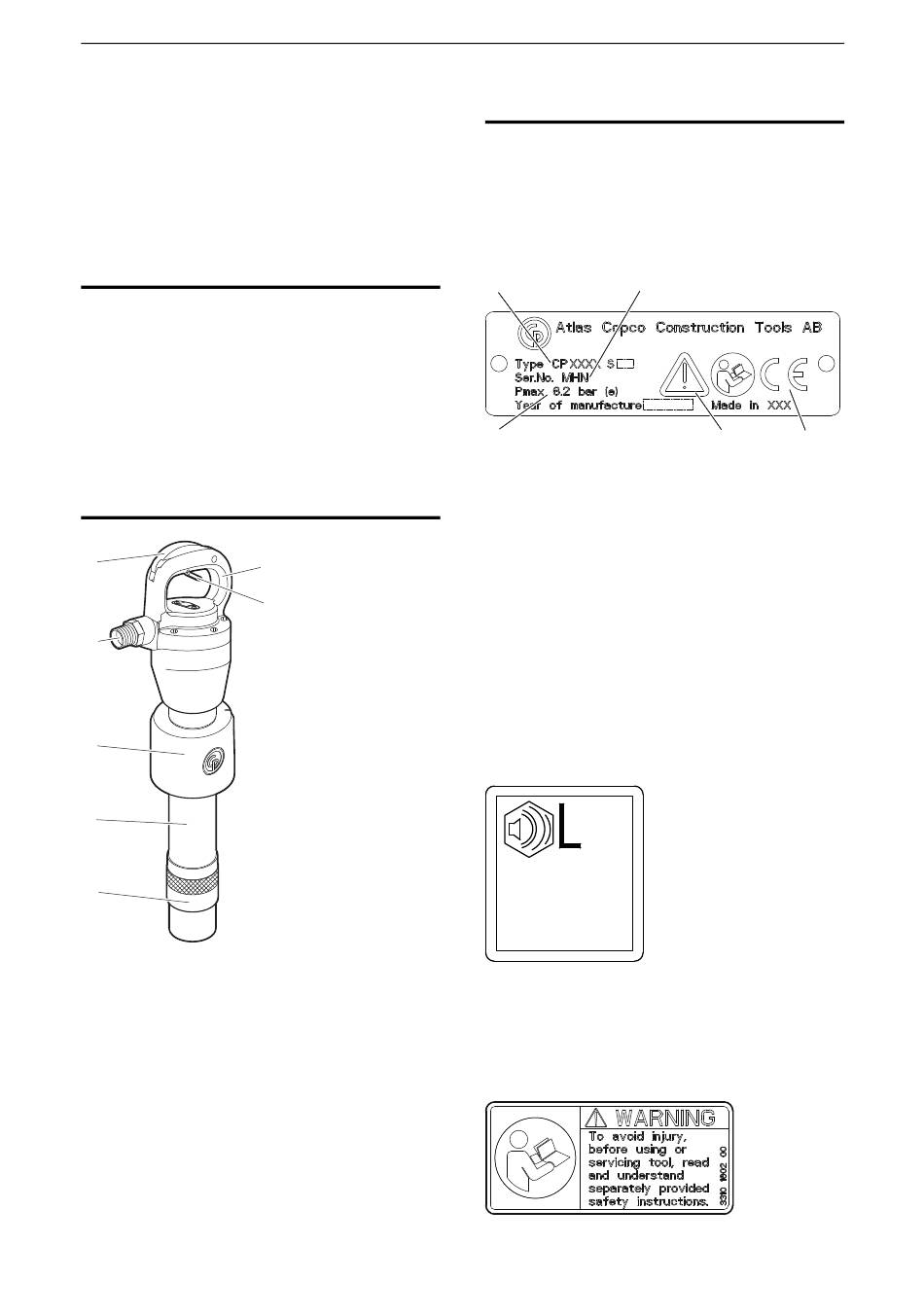

Main parts

B
D
E
F
C
Handle
A.
B. Trigger
Tool retainer
C.
Air inlet
D.
Muffler
E.
F. Cylinder
G. Safety trigger
12
A
G
CP FL 0022 VR, CP FL 0022 SVR

Labels

The machine is fitted with labels containing
important information about personal safety and
machine maintenance. The labels must be in such
condition that they are easy to read. New labels can
be ordered from the spare parts list.
Data plate
A C
B
Machine type
A.
Maximum permitted compressed air pressure
B.
C. Serial number
D. The warning symbol together with the book
symbol means that the user must read the
safety and operating instructions before the
machine is used for the first time.
The CE symbol means that the machine is
E.
EC-approved. See the EC declaration which is
delivered with the machine for more
information. If the CE symbol is missing, it
means that the machine is not EC-approved.
Noise level label
WA
xxx
dB
The label indicates the guaranteed noise level
corresponding to EC-directive 2000/14/EC. See
"Technical data" for accurate noise level.
Safety label
9800 0838 90c | Original instructions
D E
