ASSEMBLY INSTRUCTIONS
Tools needed – (2) 7/16" wrenches, a Phillips head screwdriver,
rubber mallet (optional), and a cordless drill (optional).
Assembly Note: This ice shelter should be assembled in a
garage or basement setting due to the time and length of
assembly. Identify and familiarize yourself with all parts
and hardware before assembly. Allow 1-3 hours for assem-
bly.
Assembly Note: The use of a cordless drill with socket will
make assembly of your ice shelter much quicker. Be sure to
set the drill speed on low so you do not over tighten any nut
and bolt combination.
Assembly Note: If a tracking kit is purchased with the
shelter it should be mounted to the sled before assembly
of the ice shelter for convenience.
Important Assembly Tip: Do NOT fully tighten any nut and
bolt combination until instructed in later notes. This will
help hole alignment of all parts.

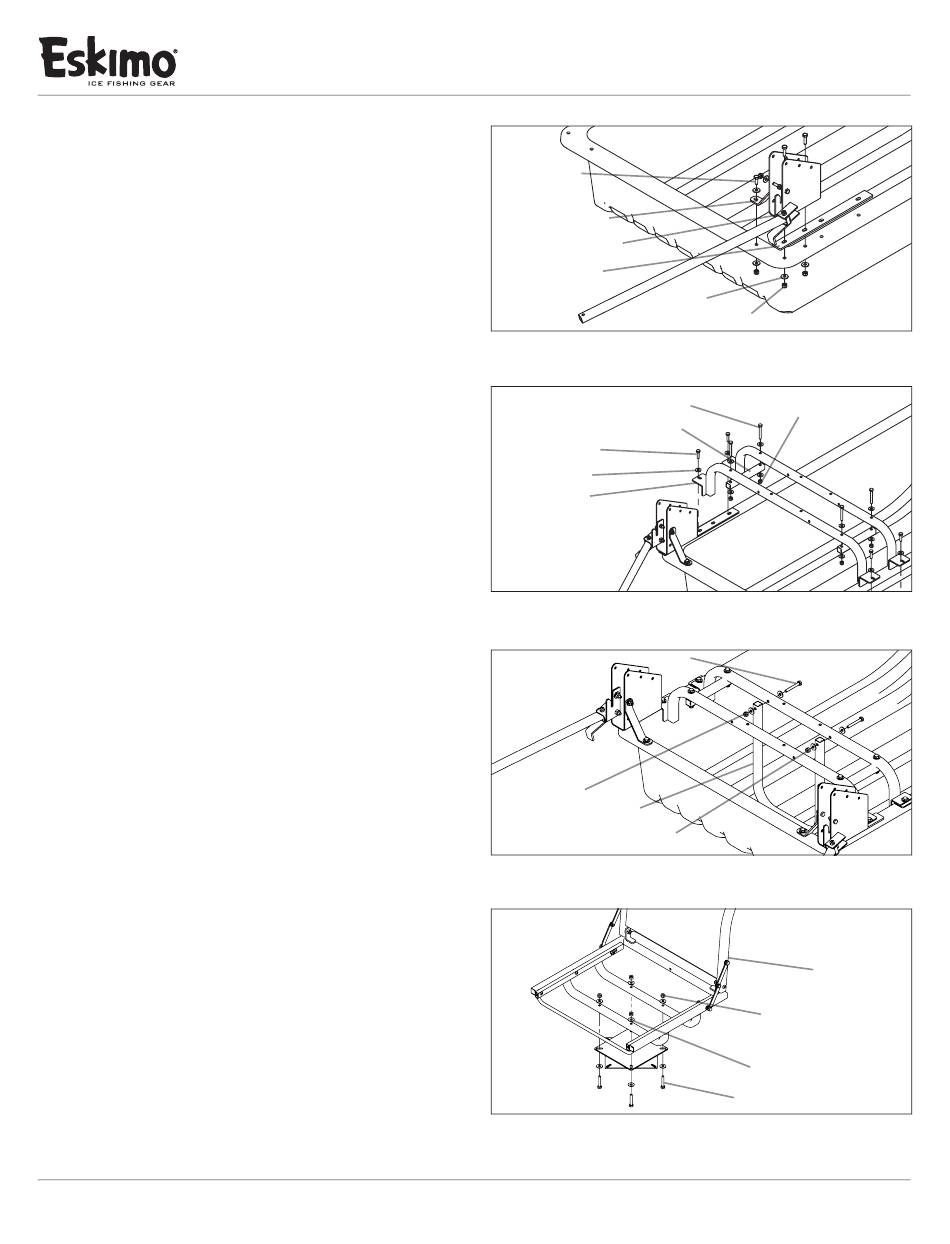

1. Attach the left hinge assembly (11652) to the shelter sled
using the spacer plate (11631), (2) ¼-20 x 3/4" bolts, (2) ¼"
washers and (2) ¼-20 nylock nuts. Repeat this step on the
opposite side using the right hinge assembly (11653). SEE
FIGURE 1
2. Attach the (2) hinge support straps (11203) to both hinge
assemblies (11652/11653) using (4) ¼-20 x 3/4" bolts,
(3) ¼" washers, and (4) ¼-20 nylock nuts. SEE FIGURE 1
Note: If the hole alignment is off or looks too far apart,
rotate the hinge support brace and try again. This part will
only bolt on one way.
3. Attach the (2) seat rails (15033) using (4) ¼-20 x 1" bolts, (8) ¼"
washers, and (4) ¼-20 nylock nuts. The seat rail closest to the
front of the sled will use the last slotted hole on the spacer
plate (11631) that was installed in Step 1. The remaing seat
rail (15033) will require the (2) support shims (11230) to keep
the height between the two seat rails consistent. SEE FIGURE
2
4. Attach the (2) rail supports (15650) using (4) ¼-20 x
2" bolts, (8) ¼" washers, and (4) ¼-20 nylock nuts. SEE
FIGURE 2
5. Attach the (1) vertical frame support (11305) using (2) ¼-20
x 2" bolts, (4) ¼" washers, and (2) ¼-20 nylock nuts. SEE
FIGURE 3
6. Tighten all hardware used to complete this portion of
assembly instructions.
4
All manuals and user guides at all-guides.com
SEAT FABRIC HIDDEN FOR ASSEMBLY CLARIETY
Check for parts online at www.GetEskimo.com or call 800-345-6007 M-F 8-5 CDT
¼-20 x ¾" bolt
hinge support strap
right hinge assembly
spacer plate
¼" washer
¼-20 nylock nut
FIGURE 1
¼-20 x 2" bolt
rail suppport
¼-20 x 1" bolt
¼" washer
seat rail
FIGURE 2
¼-20 x 2-1/4" bolt
¼" washer
vertical frame support
¼-20 nylock nut
FIGURE 3
Note:
(SEAT FABRIC
HIDDEN FOR
ASSEMBLY
CLARIETY)
FIGURE 4
Operator's Manual
ESKIMO
WIDE1
Inferno
®
™
¼-20 nylock nut
versa seat
¼-20 nylock nut
¼" washer
¼-20 x 1½" bolt
