BUTTONS FUNCTIONS
STATE STAND-BY AND WAITING FOR PICK-UP
ON HOOK (receiving a call)
BUTTON
Scroll video
BUTTON A
memory function 1
Auto-on
BUTTON B
switching
Garage door Garage door lock
BUTTON
lock release
Add-on Special
buttons 1÷5 function function
AV1407/051 2 ÷ 6
Door lock Door lock
release
Automatic door Automatic
(1407/051 opener function door opener
add-on) function
The button 6 of the add-on buttons unit is not used.
OPTIONAL PROGRAMMING FOR ADDITIONAL FUNCTIONS
The following programming operations are needed after testing the basic operation of the system, only if are
required.

INTERCOM FUNCTION

The A, B, buttons of the apartment stations and the buttons from 1 to 5 of the AV1407/051 add-on can be
programmed to manage the intercom call functions in B-Twin systems.
One button can be programmed to call another user in the column or to call an indoor station in parallel. All
indoor stations of the called user will ring in the fi rst case. Only the specifi cally programmed indoor station
will ring in the second case.

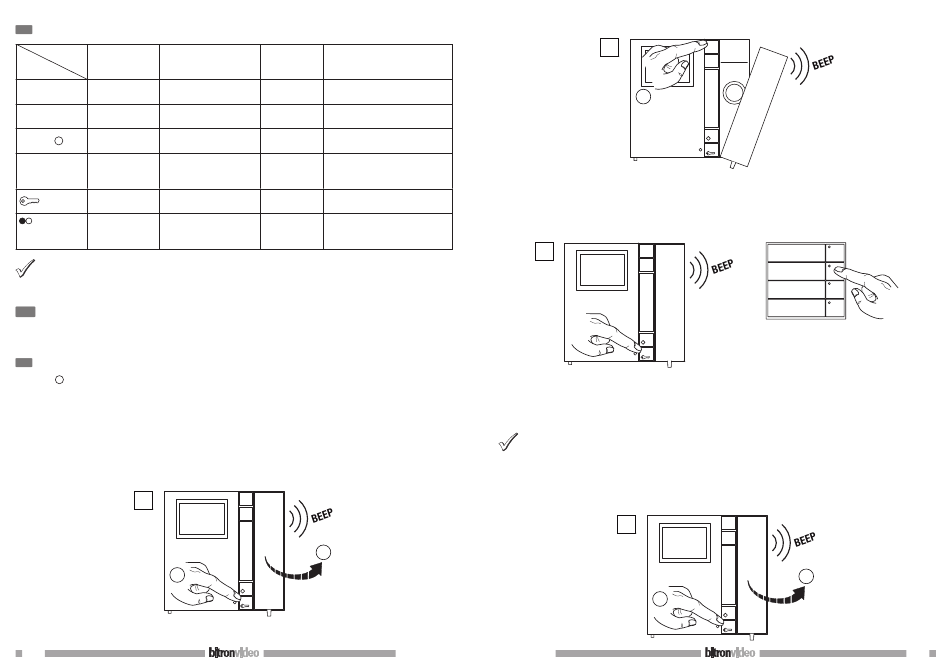

INTERCOM FUNCTION BETWEEN VARIOUS USERS
– Go to the indoor station to be programmed as caller (indoor station A).
– Hold the door opener button pressed and pick up the handset. The indoor station A outputs a tone to
indicate that programming mode is in progress.
A
1
12
AUDIO STAND-BY
AND OFF-HOOK
Special Special Programmable intercom call 1
function 1 (Default: not programmed)
Video No function Programmable intercom call 2
(Default: call to switchboard)
Garage door Programmable intercom call 3
release lock release (Default: not programmed)
Special Special Programmable intercom call
function 4 ÷ 8
2 ÷ 6 2 ÷ 6 (Default: not programmed)
Door lock Door lock
release release release
Automatic Automatic
door opener door opener
function function
A
B
2
– Press the button to be programmed. The indoor station will output a confi rmation tone.
– Go to the user that the button will call (user B) and press the door opener button. The indoor stations will
be beep to indicate that they have been programmed.
Alternatively, go to a calling station and press the calling button of user B. The indoor station being
programming (A) will beep to indicate that it has been programmed. The indoor stations of user B will ring
when this occurs. Ignore this call.
B
– Hook up the handset of indoor station A. It will beep to indicate exit from programming mode.
– Check programmed function: release the handset A and press the programmed button. Check that all indoor
stations of user B ring and check audio.
– You will need to program indoor station B to call A to make the opposite call possible.
The other functions listed in the "Buttons functions" table will not be lost if the buttons are programmed
for this function because the intercom call is made with the handset off-hook.
INTERCOM FUNCTION IN THE SAME APARTMENT
– Go to the apartment station to be programmed as caller (indoor station C1).
– Hold the door opener button pressed and pick up the handset. The indoor station C1 outputs a tone to
indicate that programming is in progress.
DS901423-001 DS901423-001
A
A
B
3
A
B
USER B
C1
A
B
1
2
