Senco DS425AC Guide De Démarrage Rapide

READ ALL SAFETY INFORMATION
AND OPERATING INSTRUCTIONS IN
THE INCLUDED MANUAL BEFORE
OPERATING THIS TOOL.
When finished, file your Quick Start Guide
in a convenient place for future reference.

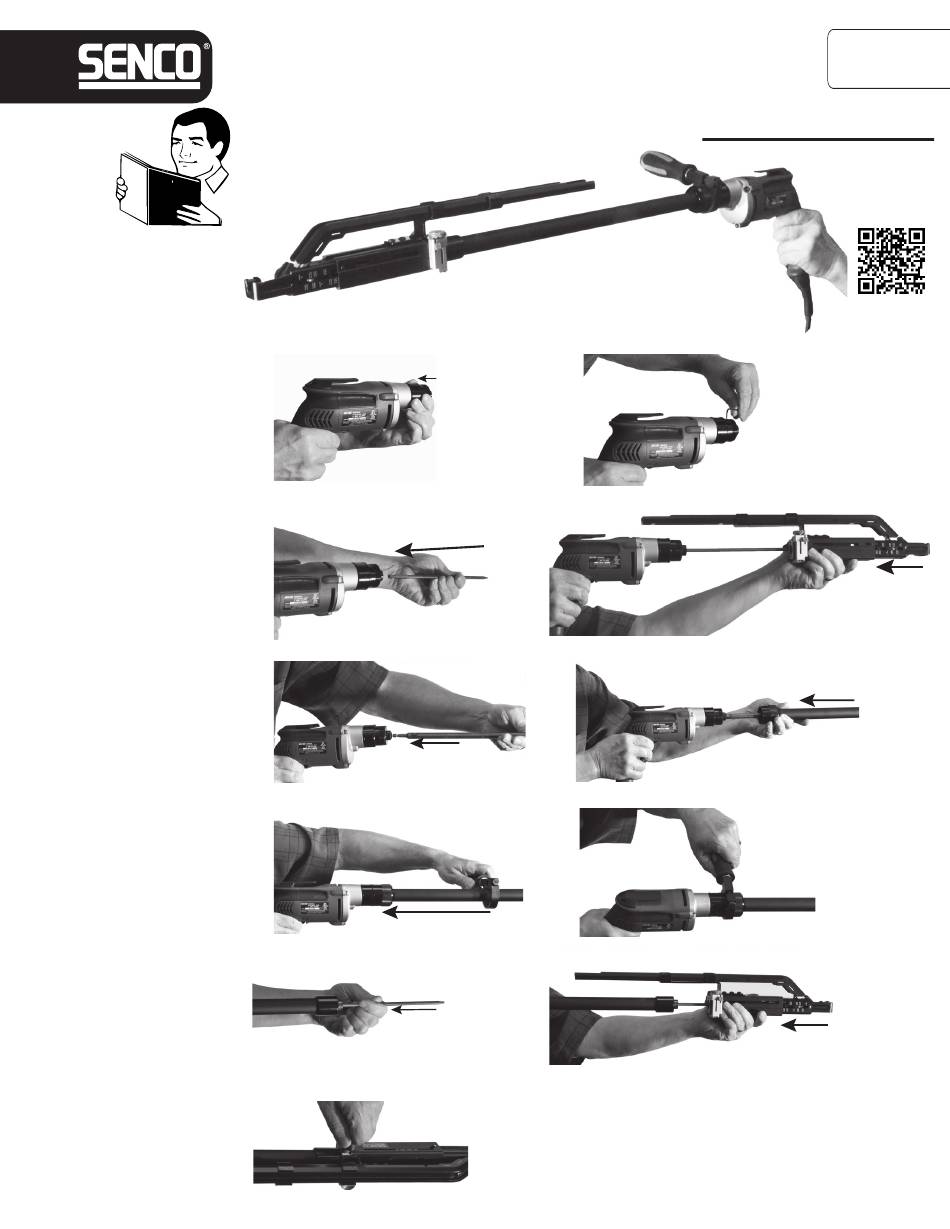

1. (A) Install the black adapter onto the
front of the screwdriver making sure
that the set screws are aligned with the
groves on the tool. (B) Tighten adapter
set-screws.
Proceed to step 3 if using the DS320
attachment with the extension pole.
Otherwise, proceed to Step 2.
2. (A) Install the desired bit into the screw
gun. (B) Slide the attachment onto the
adapter. Tighten on the attachment
until snug.
3. (A) Insert inner rod (found inside
extension pole) into center of adapter
and screw gun. Push down until
rod clicks into place. (B) Slide outer
extension pole over the inner rod and
thread onto screw gun adapter.
4. (A) The handle should slide over and
down the pole. Place the collar over
the bottom of extension pole just above
the adapter. (B) Tighten by spinning
the handle clockwise in the desired
orientation. (Do not overtighten).
5. (A) Insert bit into end of extension pole.
(B) Guide DS320 attachment over
bit and onto head of extension pole,
making sure there is no gap between
head of pole and attachment. Some
force may be required to fully seat the
attachment with no gap. (C) Tighten the
wing nut until snug.
Screw Fastening System Attachment
1 (A)
2 (A)
3 (A)
4 (A)
5 (A)
5 (C)
1 (B)
2 (B)
3 (B)
4 (B)
5 (B)
DS425AC
DS440AC
Quick Start Guide
© 2013 by Senco Brands, Inc.
