FOR GE ZONELINE AZ95 SERIES UNITS

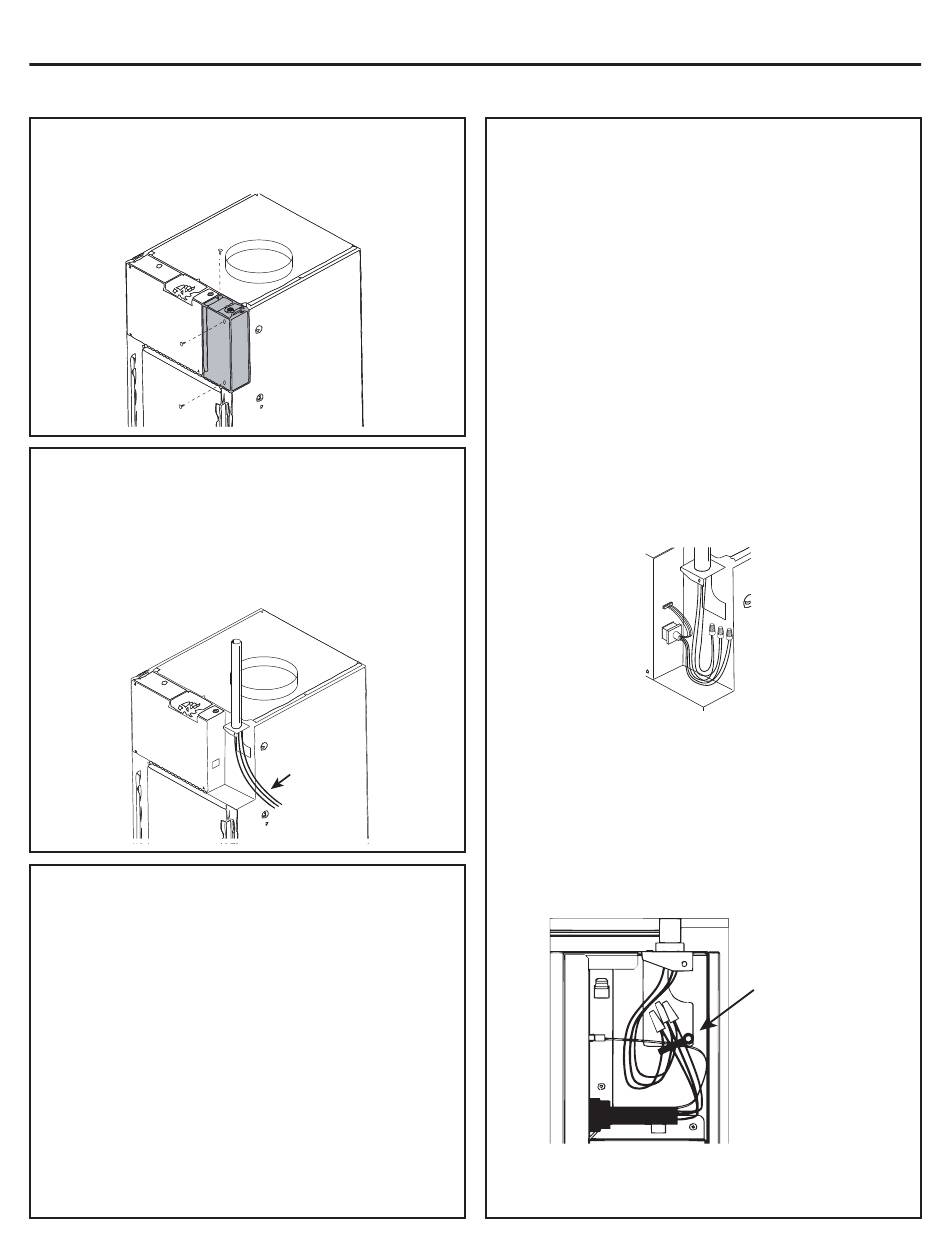

1. REMOVE JUNCTION BOX COVER
Remove the junction box cover by removing the three
screws holding it to the assembly.
2. ATTACH FLEX CABLE
Use the round knockout hole at the top of the junction
box to install flex cable coming from the branch circuit.
Install and clamp the flex cable thought the flex cable
clamp and bring wire leads into the junction box. Leave
minimum of 6" of wire free from the end of the flex
cable.
3. MAKE WIRE CONNECTIONS
INSIDE THE JUNCTION BOX
1. Make all wire connections by using appropriate NEC
and UL-listed electrical connectors and techniques.
2. Select the applicable wiring situation and follow the
instructions accordingly:
• 1-Phase 230 VAC
When connecting the Zoneline to a single-phase
circuit for 230V applications:
Connect the white and black leads of the Zoneline
power supply kit to the branch circuit L1 and L2
leads. (The white lead of the power supply kit should
be identified by the installer using electrical tape
with some color other than green or white.) Connect
the green lead of the power supply kit to the power
supply and branch circuit ground.
Installation Instructions
Minimum of 6"
of wire free
3. MAKE WIRE CONNECTIONS
INSIDE THE JUNCTION BOX (cont)
• 1-Phase 208 VAC
When connecting the Zoneline to a three-phase circuit
for 208V applications:
Connect the white and black leads of the Zoneline
power supply kit to the branch circuit L1 and L2 leads.
(The white lead of the power supply kit should be
identified by the installer using electrical tape with
some color other than green or white.) Connect the
green lead of the power supply kit to the power supply
and branch circuit ground.
• 1-Phase 265 (277) VAC
When connecting the Zoneline to a three-phase circuit
for 265V applications:
Connect the white and black leads of the Zoneline
power supply kit to the branch circuit Neutral and L1
leads. (The white lead of the power supply kit should
be connected to neutral.) Connect the green lead of
the power supply kit to the power supply and branch
circuit ground.
3. Be sure that all wire leads are inside the junction box
and not pinched between the box and the unit. The
green insulated ground wire from the Zoneline MUST
be connected to the branch circuit ground wire.
4. For 20A and 30A power supply kits, plug in personality
jumper for heater selection.
5. Plug the 4-pin connector into the 4-pin receptacle in the
junction box.
6. Replace the junction box cover by replacing the three
screws removed earlier.
NOTICE: Wire junction box to match figure above.
Building supply wires and supply cord wires must both be
secured with zip tie and oriented vertically.
4
Secure wires
with zip tie
