Unpacking and placing the telephone
Unpacking
•
funkwerk IP 50
•
Handset with handset connecting cord
•
Cat.5 Connection cable, approx. 2 m.
•
Brief description of functions
•
CD-ROM with User Manual
Cleaning the telephone
The ISDN system telephone has been manufactured for normal, everyday use. When required, clean the
ISDN system telephone with a slightly moistened cloth, or with an anti-static cloth. Never use a solvent
to clean the phone! Never use a dry cloth; Electrostatic charges could damage the electronics in the sys-
tem. It is essential that no liquids penetrate into the inside of the ISDN system telephone, as this could
destroy the phone.
Installing the telephone
Please note that the plastic feet of your ISDN system telephone may leave marks on sensitive surfaces,
such as furniture. The manufacturer of the telephone is not liable for any such damage. Therefore, use
appropriate non-skidding pads under the phone.

Connecting the IP phone

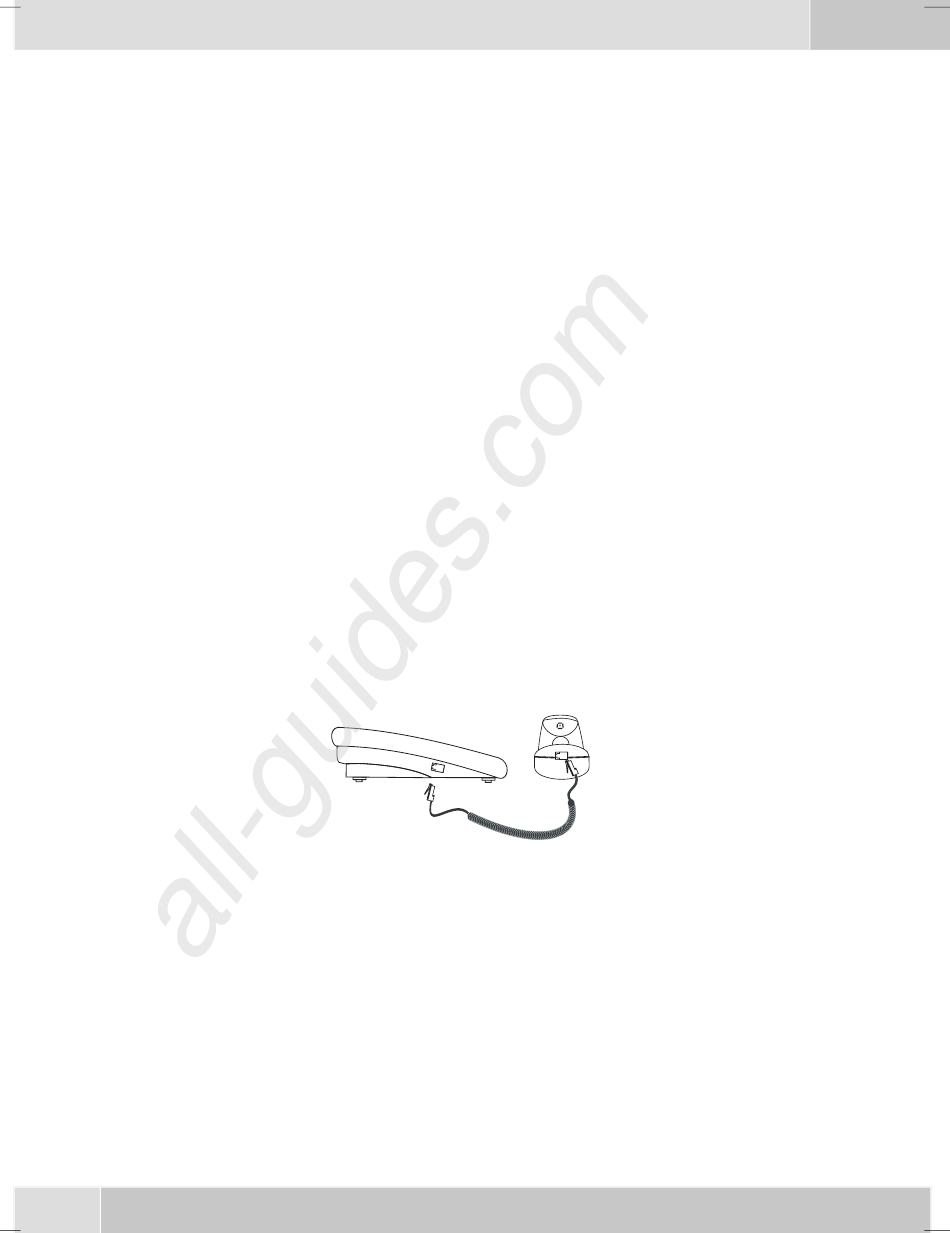

Connecting the handset cord
Connecting the handset to the base
:
Telephone rear view
Connecting the telephone with
the Internet:
Connect IP phone to a
computer if necessary.
Activating the telephone:
4
All manuals and user guides at all-guides.com
Insert handset cord into handset jack at the left side of the
base (1) and at the lower end of the handset (2).
1
Plug the RJ-45 Ethernet cable into the Ethernet jack named
»WAN« of the phone. Plug the other end of the cable into an
appropriate LAN or DSL/Cable router port or a HUB.
Plug the RJ-45 Ethernet cable into the Ethernet jack named
»LAN« of the phone. Plug the other end of the cable to a
computer.
Plug the power adapter into the power jack of the phone.
Then plug the other end of the power adapter
into the appropriate 230 VAC wall outlet.
