Installation Instructions
Mounting the Hood
Bottom Duct Covers
Bottom Support Frame
14. Install electrical and duct work. Seal duct work with aluminum duct tape.
15. Unwrap the blue antenna wire and position it behind the duct cover from steps 17-18. There is no
need to secure it.
16. Power up hood, verify all functions and check for leaks around duct tape.
17. Assemble top duct covers (with louver holes) together over top support frame, secure top duct
covers together by magnetic strips.
NOTE: If using hood in ductless recirculating mode you must install the air diverter plate to the top
support frame prior to assembling the duct covers. Turn to page 19 for more details.
18. Secure top duct covers to top support frame by using (4) 3/16 x 1/4 screws (2 screws for each top
duct cover). (FIG. J1).
19. Assemble bottom duct covers together over top duct covers and secure together by magnetic
strips. Bottom duct covers should rest on top of the hood body.
18

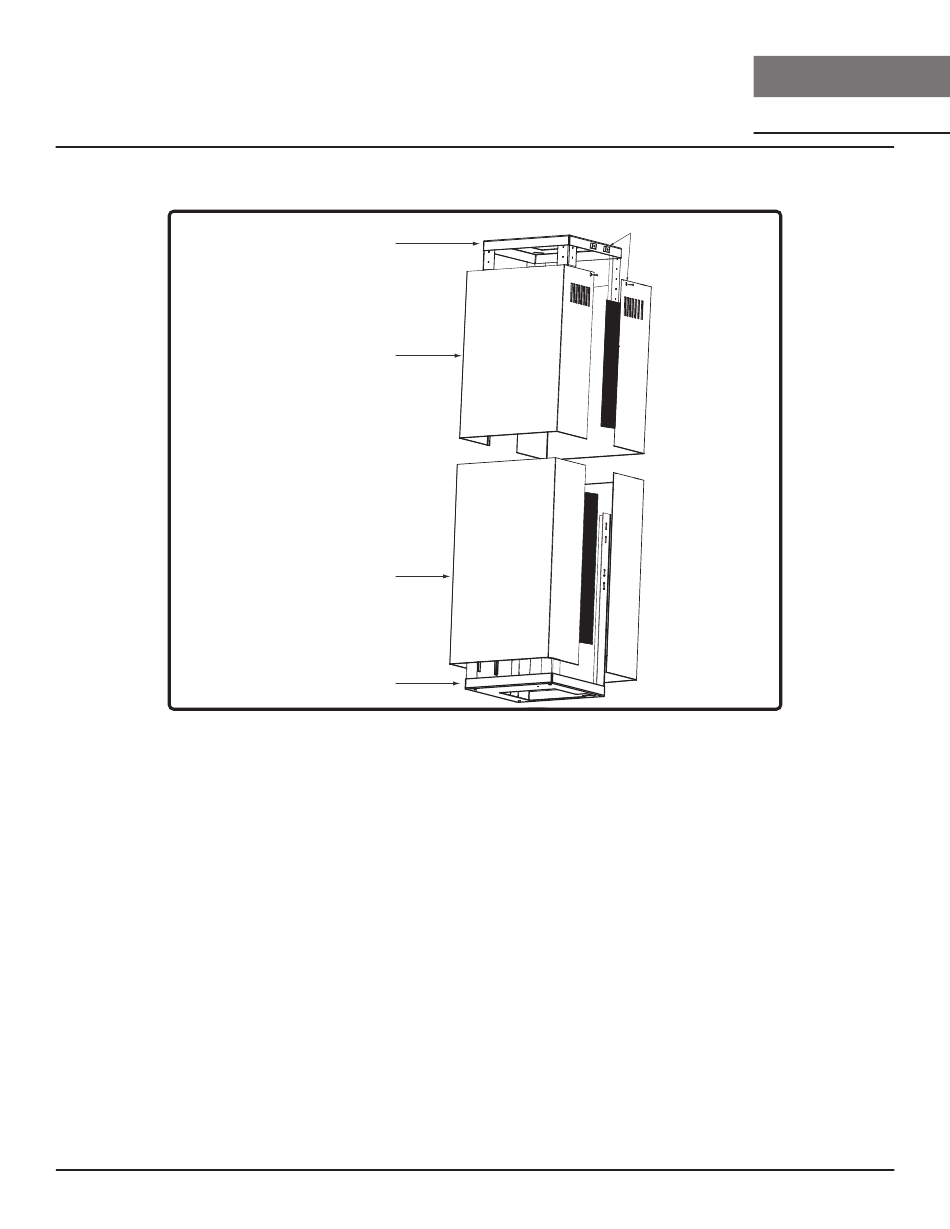

Top Support Frame
Top Duct Covers
FIG. J
