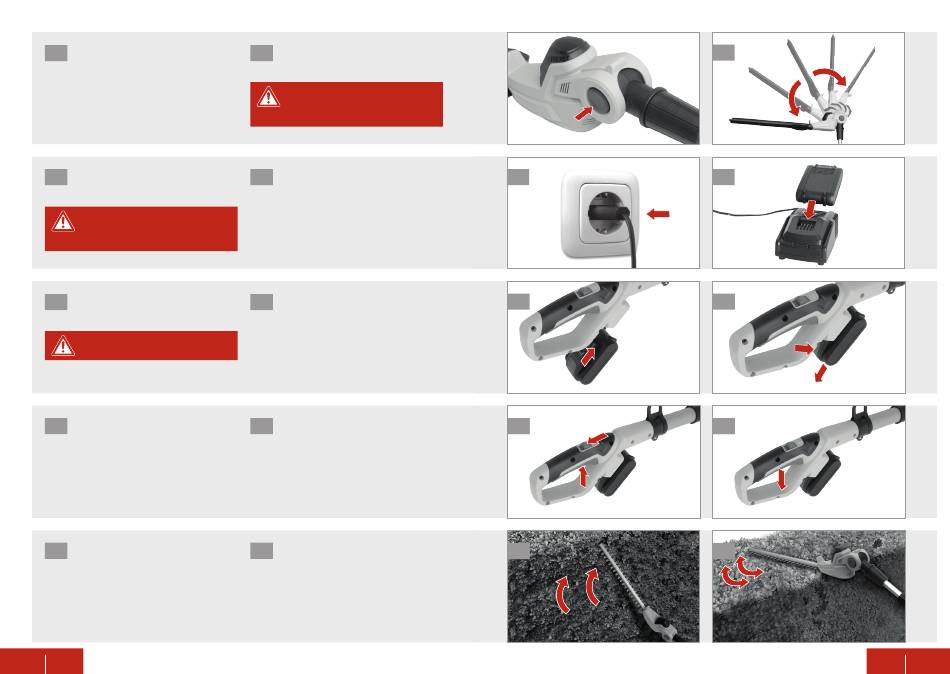

SET CUTTING ANGLE
1 Push the angle adjustment button 15.
CHARGE BATTERY
1 Plug the charger (not included) into a
suitable wall socket.
Caution! Only use the battery
charger specified in technical data
to charge the battery.
ATTACH BATTERY
1 Slide the charged battery 7
battery slot until it clicks into place.
Caution! Only use the batteries de-
scribed in technical data.
SWITCHING ON
1 1. Pull back the release switch 11
hold it.
2. Press the on/ off switch 9
the tool. Release the release switch.
CUTTING TECHNIQUES
1 Hold the hedge trimmer at an angle of
5°–10° to the hedge.
Cut the hedge from bottom to top, sides
first.
156 EN
2 Depending on the work site, set the de-
sired cutting angle from -30° to +90°.
Caution! Make sure the angle ad-
justment button has safely locked
in.
2 Slide the battery 7 (not included) onto
the charger and check its LEDs:
Red: Charging
Green: Battery is fully charged
Flashing Red: Battery is defective
Flashing Green: Battery is too hot/ cold
RELEASE BATTERY
into the 2 For removal press the battery release
button 8 and pull out the battery.
SWITCHING OFF
and 2 Release the on/ off switch 9
the tool.
to start
2 Cut the top in an oscillating movement,
advancing slowly.
