DOOR REVERSIBILITY

The side at which the door opens can
be changed from the left side to the right
side (as supplied), if the installation site
requires.
Warning!
When changing the side at which the
door opens, the appliance must not be
connected to the mains. Remove plug
from the mains beforehand.
2
1
3
4

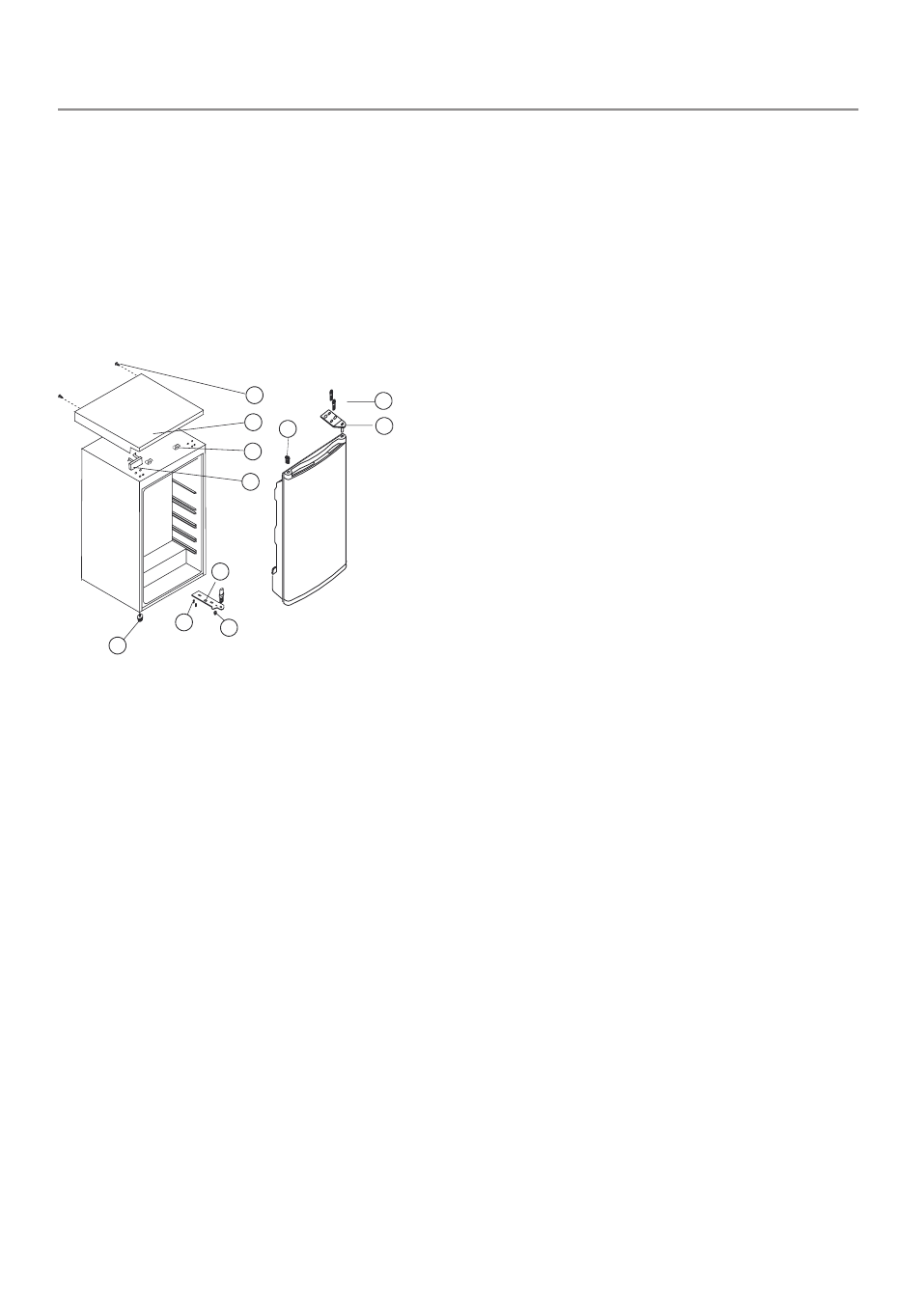

1. Screw
2. Low hinge
3. Upper hinge
4. Adjustable low foot
5. Adjustable high foot
6. Screw bolt
7. Plug
8. Decoration block
9. The block of the top cover
10. Top cover plate
11. Screw nail
1. Remove the screw nails (11).
2. Keep the door open, raise the end of
the top cover, push it (10) frontad and
take it off from the block (9) of the top
cover, then move the bottom block (8).
3. Remove the two screws blot (6) that
connect the upper hinge (5) on the
right side of the cabinet top.
4. Carefully lift the door and place it on a
padded surface to prevent scratching.
5. Remove the plug (7) and transfer it to
the uncovered hole on the right side
of the unit. Be sure to press the button
firmly into the hole.
All manuals and user guides at all-guides.com
11
6
10
5
7
9
8
6. Remove the two screws (6) that hold
the lower hinge (2) on the right side of
the unit.
7. Remove the screw-type leveling front
leg (4) and transfer it to the right side
as shown in the adjacent figure.
8. Set the door into it's new place making
sure the pin enters the bushing at the
lower frame section (hole).
9. Secure the upper hinge (5) previously
removed in step 3 on the left side of
the unit. Make sure the pin enters the
bushing on the upper frame section
(hole).
10. Loosely secure the lower left hinge
(2) and do not tighten the bolts until
the door is in the closed position and
leveled.
11. Insert the plug (7) on the uncovered
holes (right side).
12. Fix the decoration block (8) in the right
of the top cover plate (10).
13. Keep the door open, raise the end of
the top cover, pull it (10) backwards to
hitch the block (9).
14. After the assembly of the top cover,
close the door, fix the top cover (10)
with the screw (11).
