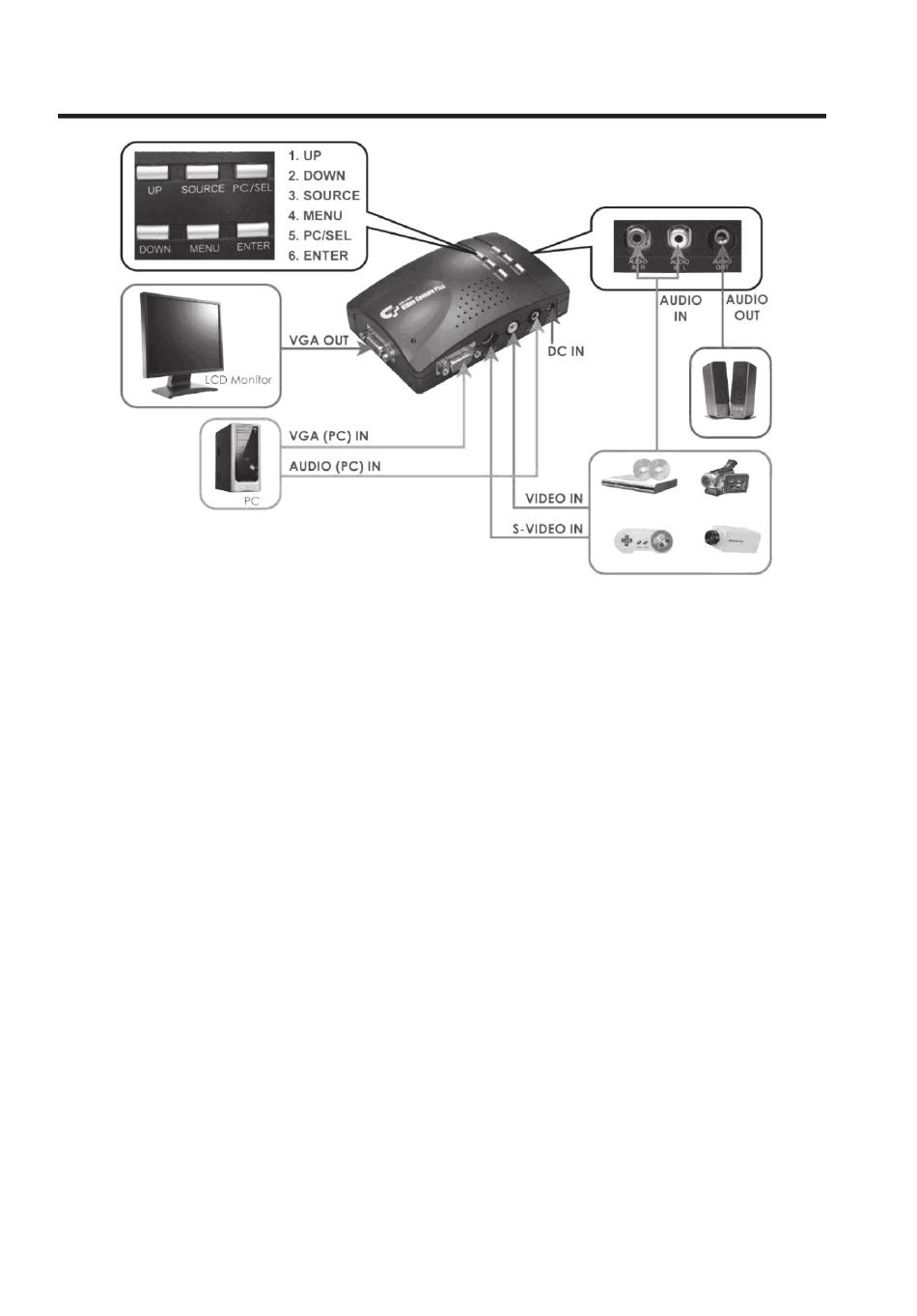

7. Connection Diagram

PC IN
S-VIDEO
VIDEO
PC Audio
DC IN
AUDIO IN L/R
AUDIO OUT
VGA O/P
Operating buttons
All manuals and user guides at all-guides.com
Connect input (15 pin VGA socket) for analogue VGA signal to the analogue VGA output
of your computer's graphics card
Connect the analogue video input (S-Video socket), e.g. tot he analogue video output of
a video camera or gaming console
Connect the analogue video input (cinch socket), e.g. to the analogue video output of a
video camera or gaming console
Connect the analogue audio input (3.5 mm stereo plug socket) to the analogue audio
output of your computer
Low voltage socket for power supply, connect to the included mains adapter
Connect the analogue audio input (two cinch sockets) to the analogue audio output of your
video camera of gaming console
Connect the analogue audio output, e.g. to the analogue audio input of a PC speaker or
a stereo system or the screen
Connect the output (15 pin VGA socket to the analogue VGA input of a screen or TV
The buttons on the top of the „Grand Video Console Plus II" are used to control the device
main functions. Special functions can be operated by the included IR remote control. If the
PC screen is displayed (via VGA input), not all button functions will work.
