POWER ON

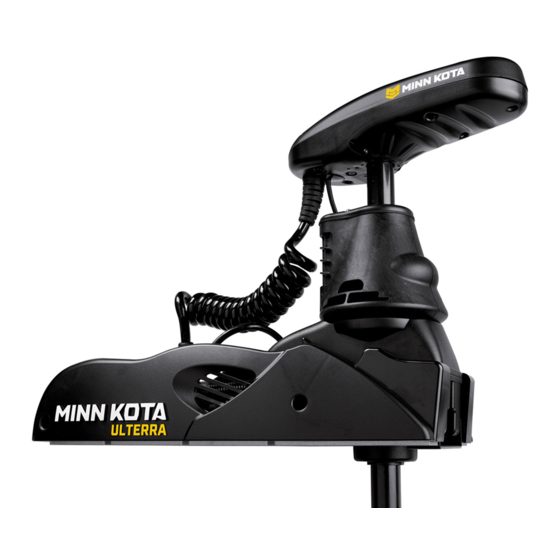

The Ulterra Trolling Motor must be
powered "on" manually. The remote
will not turn the motor on. The
power button is located on the base of
the motor. Pressing the power button
will turn on Ulterra. The red STATUS light and the green SYSTEM READY light will
both be illuminated when powered on.
POWER OFF
To power off Ulterra, press and hold the POWER button approximately three
seconds, until the green light turns off. Ulterra has an auto-shut off as well. It will
automatically power off after 1.5 hours of inactivity in the stowed position.
STATUS LIGHT
The red STATUS light indicates:
STATUS
SOLID:
Motor is stowed
FLASHING:
Motor is stowing/deploying
OFF:
Motor is deployed or off
Ulterra functions can be controlled by two different methods: the i-Pilot / i-Pilot Link wireless remote or the foot pedal. For wireless remote
functions, please refer to the remote Quick Reference Guide.
FOOT PEDAL FUNCTIONS
The foot pedal has dual mode operation: Normal Mode and Ulterra Mode.
NORMAL MODE
AUTOPILOT
SPOT-LOCK
When in normal mode, the foot pedal controls
Speed, Steering, Prop on/off, Spot-Lock, and
AutoPilot. When in Normal mode the yellow
MODE
light will NOT be illuminated.
CONSTANT
Constant On
AutoPilot On/Off
FOR A COMPLETE LISTING OF ULTERRA FAQS, VISIT MINNKOTAMOTORS.COM/ULTERRA
ULTERRA QUICK START UP GUIDE
GETTING STARTED
STATUS
POWER
SYSTEM READY
SYSTEM READY LIGHT
The green SYSTEM READY
SYSTEM READY
light will remain lit while Ulterra
is operating. If the green light
does not remain illuminated after
power up, this is an indicator of
insufficient voltage/power.
MOTOR CONTROL
Momentary On
Heel/toe steering
Mode
Speed Control
Spot-Lock
Steer Right
Prop
(Momentary On)
Steer Left
UPDATE YOUR SOFTWARE:
If you have Ulterra with i-Pilot Link, make sure that
you have the latest i-Pilot Link and Humminbird
software installed. Simply go to Humminbird.com,
click on My Humminbird,
and register your products
using the Link serial number
format P###UM##### to
have access to all software
downloads.
WARNING:
When the motor is powered
off while off the ramps,
never turn the lower unit
of the motor manually (by
hand). This will affect the
alignment of the motor and
cause it to stow improperly.
ULTERRA MODE
AUTOPILOT
SPOT-LOCK
To activate Ulterra mode, press the "Mode"
button, above the speed dial on the foot
pedal. The yellow MODE light will
MODE
illuminate. When in Ulterra mode, the foot
pedal controls Stow, Deploy, and Trim, as
well as Spot-Lock and Auto Pilot.
CONSTANT
Constant On
AutoPilot On/Off
Momentary On
Heel/toe steering
Mode
Speed Control
Spot-Lock
Trim Down
Stow/Deploy
TO STOW: tap once
TO DEPLOY: tap
twice in succession
Trim Up
2207108ra 6/15
