4.6 Fitting the flue pipe with the rear
outlet
The product is supplied from the factory with the smoke outlet
fitted for the top outlet.
NB! Proceed as follows for installation with a rear outlet:

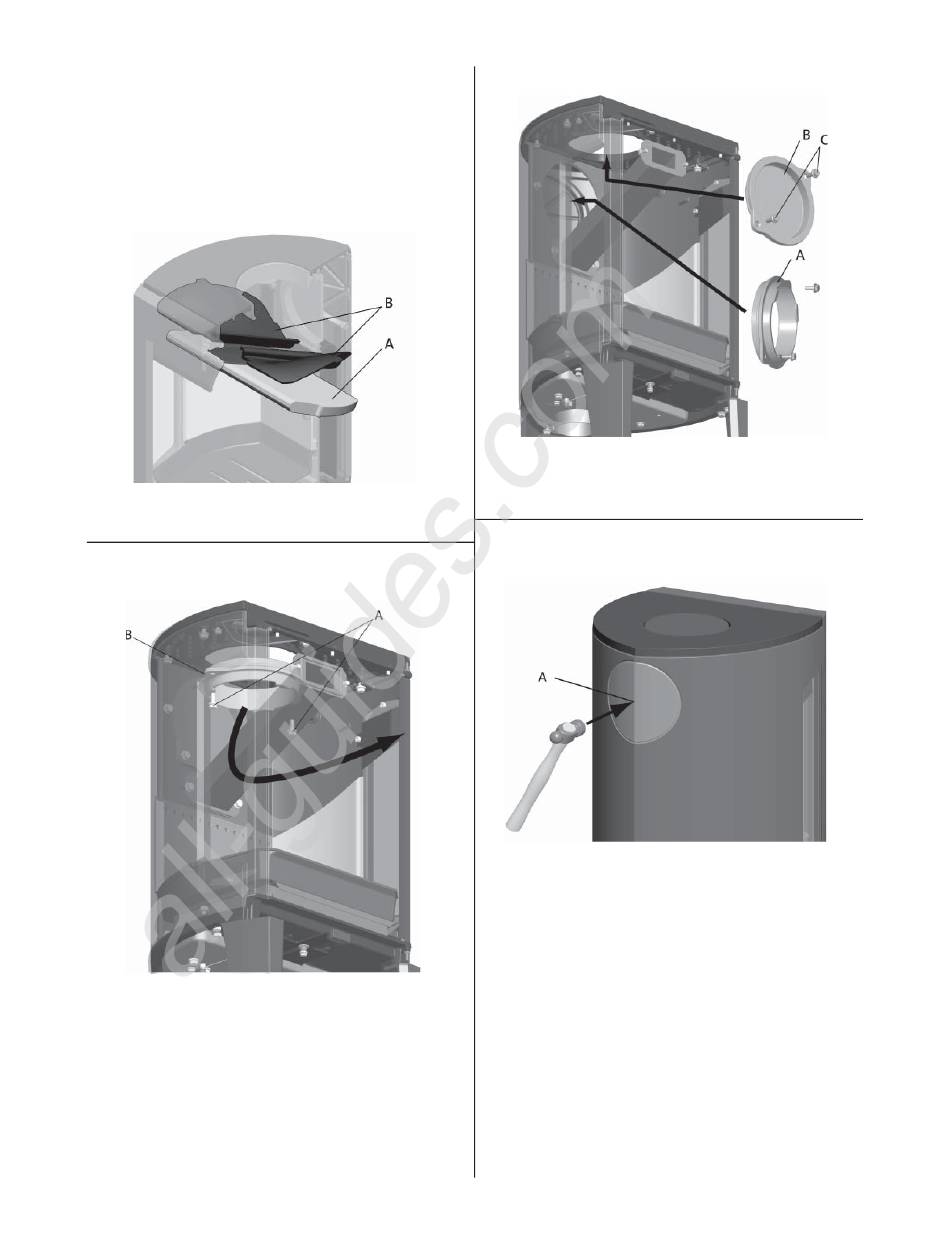

Fig. 4
1. Remove the baffle plate and exhaust defelctors (fig. 4 B).
Fig. 5
2. Unscrew the screws (fig. 5 A) and remove the smoke outlet
(fig. 5 B) from the top outlet from the inside of the burn
chamber.
All manuals and user guides at all-guides.com
Fig. 6a
3. Unscrew the screws (fig. 6a C) and remove the cover (fig. 6a
Fig. 6b
4. Knock out the removable cover plates (fig. 6b A).
5. Attach the smoke outlet (fig. 6a A) on the inside of the burn
6. Install the cover (fig. 6a B) where the smoke outlet was.
7. Refit the exhaust deflectors (fig. 4 B) and the baffle plate
B) from the rear outlet from the inside of the burn chamber.
chamber where the cover was.
(fig. 4 A).
