Description
1
2
3
I II OFF
4
I - METAL
II - ACV, CONT.
MAX
5

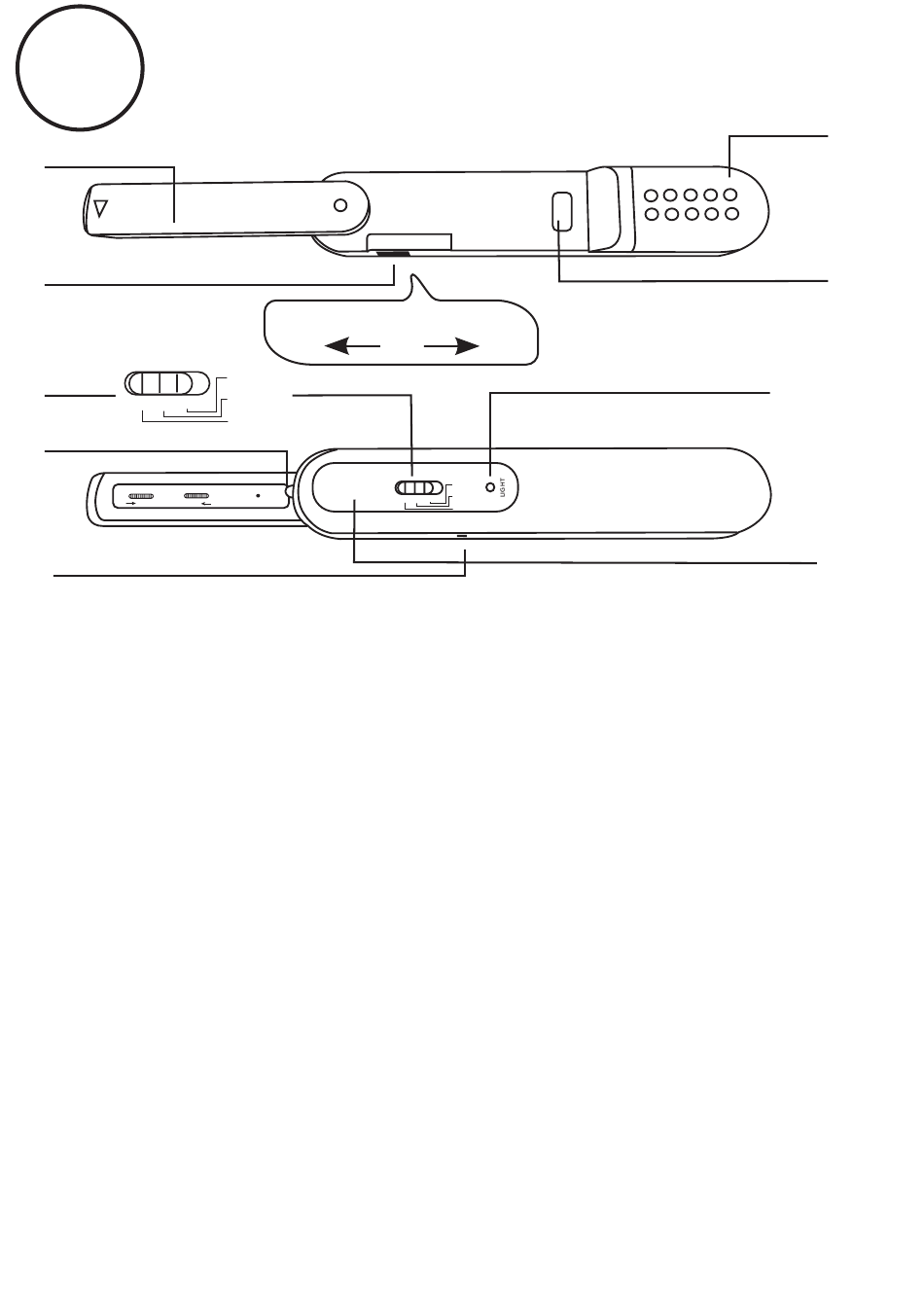

1. Metal detector sensor
2. Sensitivity cursor
3. Cursor (I = metal - II = ACV/
continuity - OFF = LED light)
4. LED light
5. Metal test plate 1
6. Battery compartment
This device is an advanced multi-function detector. It can detect
and locate metal and AC voltage, test continuity,... It can be used
in the construction industry, various installations,...
Note:
- The detector must not be used to test voltages higher than those
stated.
- Operating temperature between -10° and +40°C.
- The detector must be tested before use to make sure it is wor-
king properly (see previous page).
- The detector must not be used in damp conditions or in the rain.
- The detector must not be used if it is damaged.
12
en avant en arrière
LIGHT
ACV CONT.
METAL
OFF - LIGHT
MAX
LIGHT
LIGHT
I II OFF ACV CONT.
METAL
7. Metal test plate 1
8. LED light pushbutton
9. AC voltage detection zone
