Important - Harken UNIT 1 Manuel D'instructions

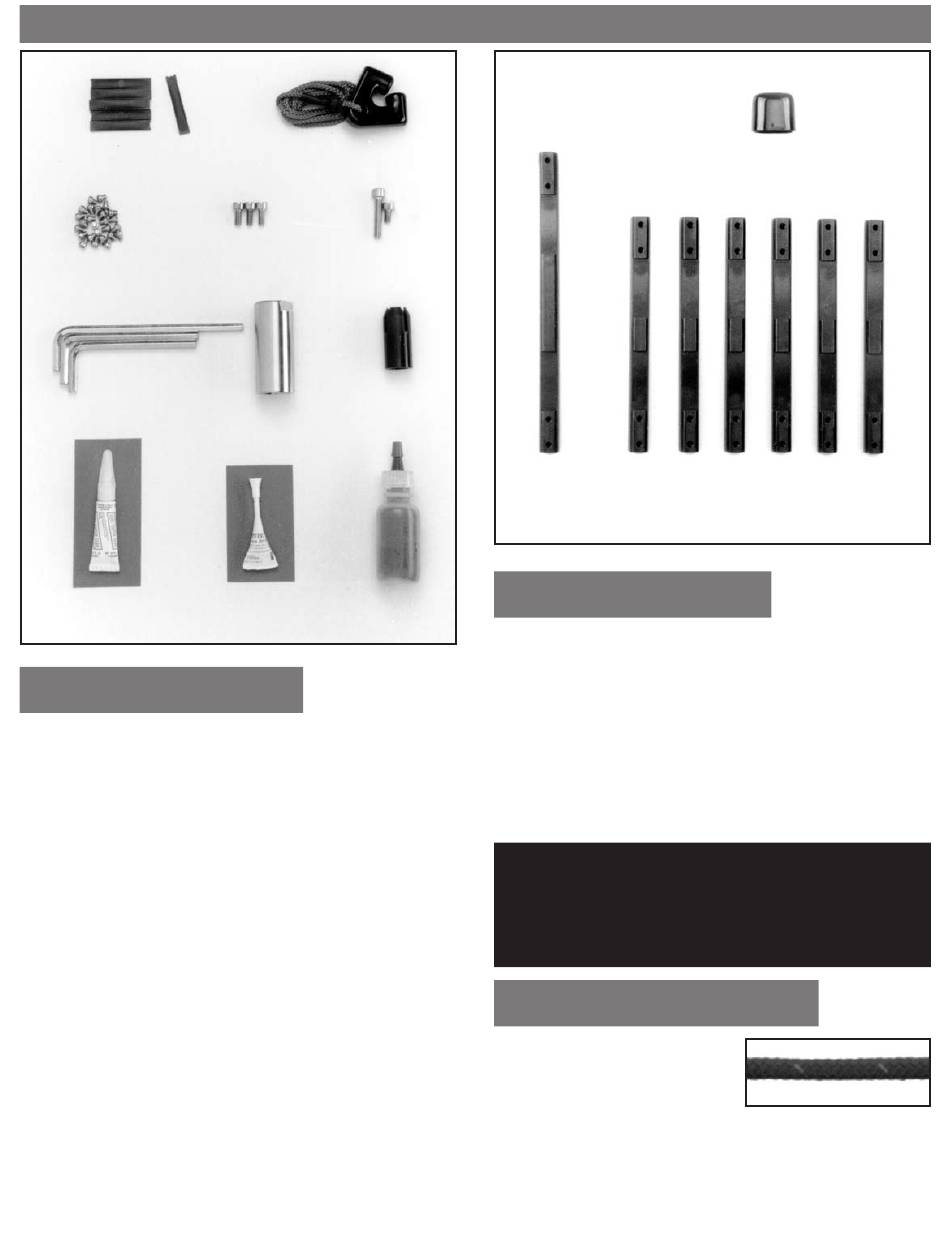

Parts
Foil Connector
Wedges
Foil Screws
Allen Wrenches
Instant
Adhesive
Miscellaneous Parts
1 Bag of 17 Connector Wedges, 3 Extra Wedges
1 Prefeeder with line
1 Bag of 30 Foil Screws. Contains 6 extra screws
1 Bag of three Torque Tube Screws
1 Bag of Spare Screws. Contains one spare screw
for every application. They are not required for
installation
1 4 mm Allen Wrench
1 5 mm Allen Wrench
1 6 mm Allen Wrench
1 Locking Collar
1 Locking Split Cylinder - Used only with swage
terminals - Norseman
do not use this part
1 Instant Adhesive
1 Loctite (Blue)
®
1 Loctite (Red)
®
1 Feeder with Screw
March 2003
Prefeeder
Torque Tube
Spare
Screws
Screws
Plastic Split
Cylinder
Locking
Collar
Blue Loctite ®
Red Loctite ®
, Sta-Lok . Rod installations
® ®
Bottom
Connector
Rigger Components
These parts are placed on the headstay before assembly
and may be "missing" as the parts may have been placed
on your headstay in advance.
1 Top Foil Trim Cap
1 8 / " (225 mm) Bottom Connector
7
8
6 7" (178 mm) Regular Connectors
If your headstay is longer than 46'4" (14.122 m)
you will need one more connector - Order part 810

IMPORTANT

Note: threaded headstay stud is sold separately.
Be sure that you have ordered the correct size for
your boat.
Packed loose in the box
1 Furling Line
70' (21.3 m ) of
(8 mm) Dacron braid
1 Owner's Package
Contains the instruction manual, warranty card
and other information
Unit 1 MKIII
Top Foil
Trim Cap
Regular Connectors
/ "
5
16
5
